How to test a GM 3-wire crank sensor (hall effect type)

Описание: The tests shown in this video can be used for any 3-wire cam or crank sensor. The P0336 code was caused by the crank sensor connector being left unplugged. So rather than just plug the sensor back in and clear the codes, I decided to take this opportunity to show you how to test the crank sensor circuit on this car. (1996 GM 3100)
There are two crank sensors on these early GM 3100 engines. One is a 2-wire magnetic type sensor that GM calls a 7x crank sensor. (7 pulses per 360 degrees of crank rotation). The second is a 3-wire hall effect type sensor that GM calls a 24x crank sensor (24 pulses per 360 degrees of crank rotation). This is the one we will be focusing on for this video.

Symptoms:
Check engine light (P0336)
Fix:
reconnect sensor connector
Testing methods shown:
how to verify wiring integrity on a pull-up type hall effect using a test light and scan data
how to determine hall effect circuit design (pull-up or pull-down) which is critical in knowing how to perform a proper bypass test
how to perform a hall-effect bypass test
how to check powers and grounds to a hall effect

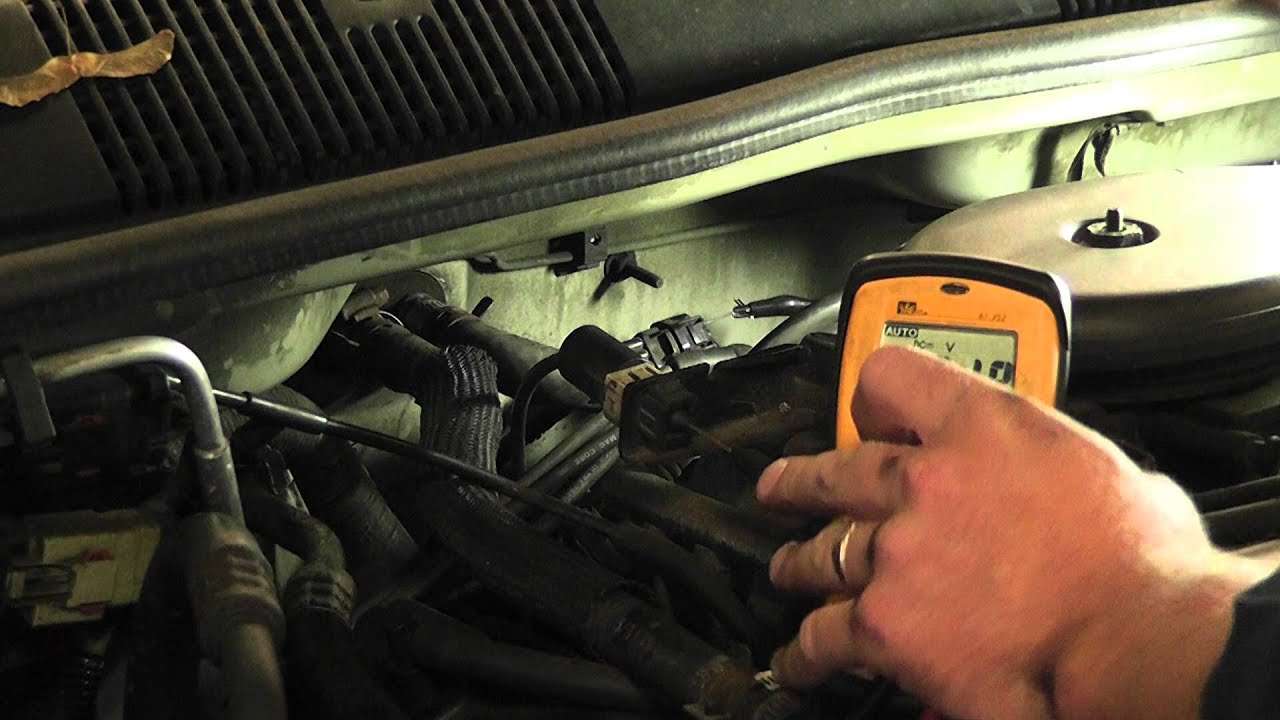

what does a digital square wave signal look like on a digital voltmeter
a frequency graph compared to the actual signature of the waveform
Tools used:
Snap on Vantage Pro
Incandescent test light
Solus Pro
