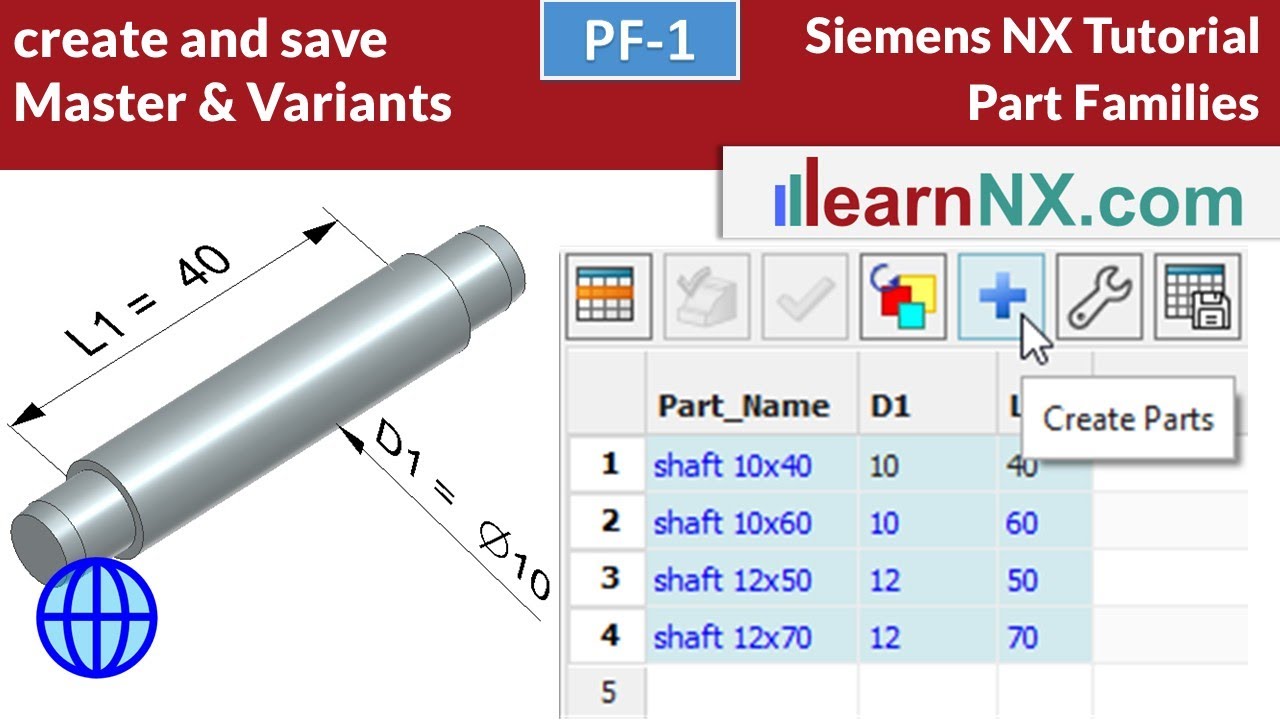

Siemens NX Tutorial | Part Families, create and save master and variants

Описание: PF-1 | The main topic "Modular Design" starts with the "Part Families" command.
This command allows you, to create variants of parts and assemblies, using spreadsheets.
The first course starts with a simple part that is to be created in different sizes. The storage locations for the master and variants are defined first. This is followed by the modelling of the master part, controlled by expressions.
These expressions are then entered into columns of a spreadsheet and filled with new values. In this way, variants of the master part in different sizes are created in a short time.

▬about this channel▬▬▬▬▬▬▬
With LearnNX you will learn Siemens NX step-by-step from the beginning. The basic course consists of learning videos that build on each other. (marked blue)
You start here:    • Siemens NX Tutorial | Modeling for beginner
In between you can check your knowledge with tests. (marked green)
Expert exercises impart special knowledge. (marked red)
All learning videos are available for free. We look forward to your comments on YouTube. (and about your subscription ;-)
   / @learnnx

▬about our free learning platform▬▬
😃 All tutorials, clearly arranged, can be found here: https://learnnx.com
Learning videos with a short description, together with the exercise materials as download.
You can also search 🔎 for commands or topics.
And all according to the motto: step by step / for free / for all 🎈

▬Links▬▬▬▬▬▬▬▬▬▬▬▬▬
https://learnnx.com/downloads

▬chapter▬▬▬▬▬▬▬▬▬▬▬▬
00:00:00 Preview
00:01:09 Create master part with parameter
00:04:00 Define storage directory
00:05:34 Define columns
00:06:57 Create table
00:09:51 Create variants
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
