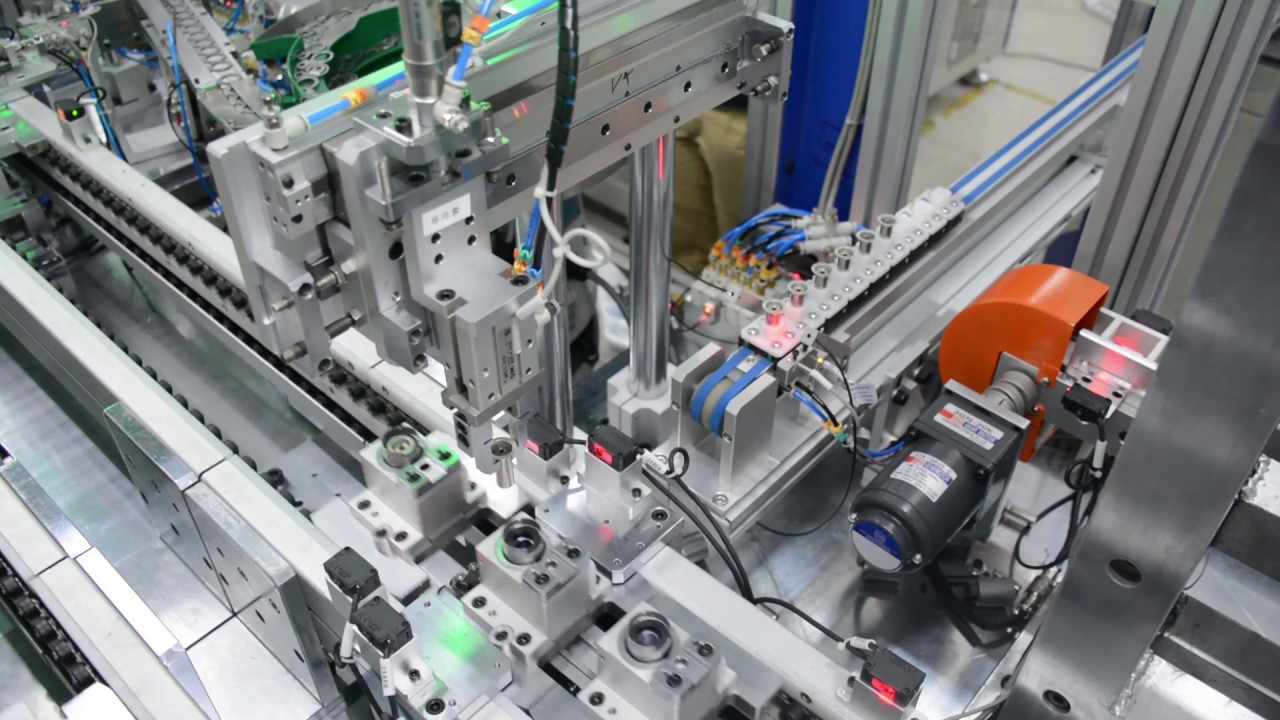

Automotive Oil Control Valve Manufacturing: OCV Full Automatic Assembly Line（OCV全自动组装线）
Автор: Mechanical craftsman China
Загружено: 2018-02-28
Просмотров: 33912
Описание:
Parameter:
Size(L*W*H):9000mmX5000mmX1800mm
Capacity:200PCS/h
Continuous activation ratio:≥95%
Pass Rate:≥98%
Work Stations:38
Voltage: AC 380V，3Φ，50/60Hz
Rated Power:12KW
Air Pressure:0.5-0.6Mpa
Machine Life: Over 10years
This automated assembly line is able to complete the following operation:
1.Connector Assembled Parts Assembly
2.Valve Assembled Parts Assembly
3.Main Assembled Parts Assembly
4.Closing/ Riveting
5.Air Tightness Inspection
6.Pressure Inspection
7.Valve Core Assembly
8.Spring、Discharge of Oil block、Circlip Assembly
9.Spring Housing Assembly ( Reserved Process)
10. Laser Marking
11. End Product Discharge
参数：
尺寸（长*宽*高）：9000mmX5000mmX1800mm
产量：200PCS / h
连续活化率：≥95％
及格率：≥98％
工位：38
电压：AC 380V，3Φ，50 / 60Hz
额定功率：12KW
气压：0.5-0.6Mpa
机器寿命：10年以上
该自动装配线能够完成以下操作：
1.连接器组装零件组装
2.阀门组装件组装
3.主要组装零件的组装
4.关闭/铆接
5.气密性检查
6.压力检查
7，阀芯组装
8.弹簧，排油块，卡簧组件
9.弹簧壳体组装（预留过程）
10.激光打标
11.最终产品排放
