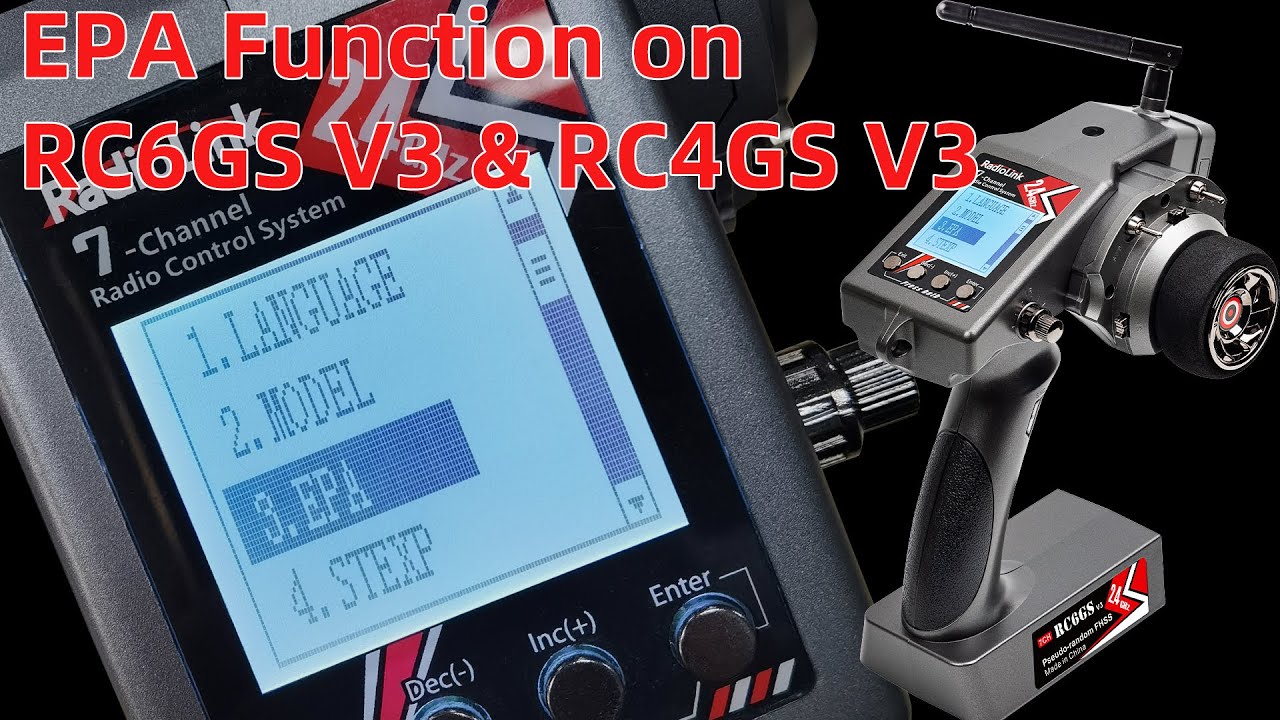

EPA Function on RC6GS V3 / RC4GS V3

Описание: How to Assign a Switch to Control EPA on RC6GS V3/ RC4GS V3?
Power RC6GS V3 on. Long press Exit and Enter button at the same time to enter the setting page. -- No.3 EPA EPA is to set different travel amount of a servo on either side from its neutral position.
SW means Switch. You can assign a switch to control EPA. It can be set to NULL, SWA, SWB, SWC, SWD or their lock modes LK-A, B, C, D. If you assign 3 position switch, such as SWB, SWC to control EPA, you can set 3 different end points. If you assign SWA,D, LK-A,D to control EPA, 2 different end points can be switched. If SW is set to NULL, EPA will keep the current values.
The RATE below means the travel amount of the servo, which defaults to 100%. It can be set from 0, the minimum travel amount, to 120%, the maximum. You can adjust EPA of steering, throttle, channel 3, 4, 5, 6, 7
Take SWB, a 3 position switch as an example. Set SW to SWB. Push SWB and the position of SWB is shown in the right corner of the screen. UP-CENTRAL-DOWN.
Push SWB UP first, set the largest travel amount, that is 120%. Please note, you can set different travel amount for the two sides of the channel in EPA. For example, for Steering, set the left side 120%, but the right side 110%. The value can be different for both sides.
Push SWB Central, keep all channels the normal travel amount, that is 100% by default.
Push SWB DOWN, set small travel amount. For steering, set both sides 80%. For throttle, set both sides 80% too.
Setting is done.
Push SWB UP-- the large travel amount
Push SWB CENTRAL- all 100% travel amount
Push SWB-DOWN-- the small travel amount.
What’s the difference of EPA and Dual Rate?
For, EPA, you can set different travel amount of a servo on either side from its neutral position. That means for one channel, you need to set two values.
But for Dual rate, the travel amount of a servo is the same on either side. That means you only need to set one rate for each channel.
