Auto Measuring Microscope
Автор: holmarcproducts
Загружено: 2024-10-14
Просмотров: 314
Описание:

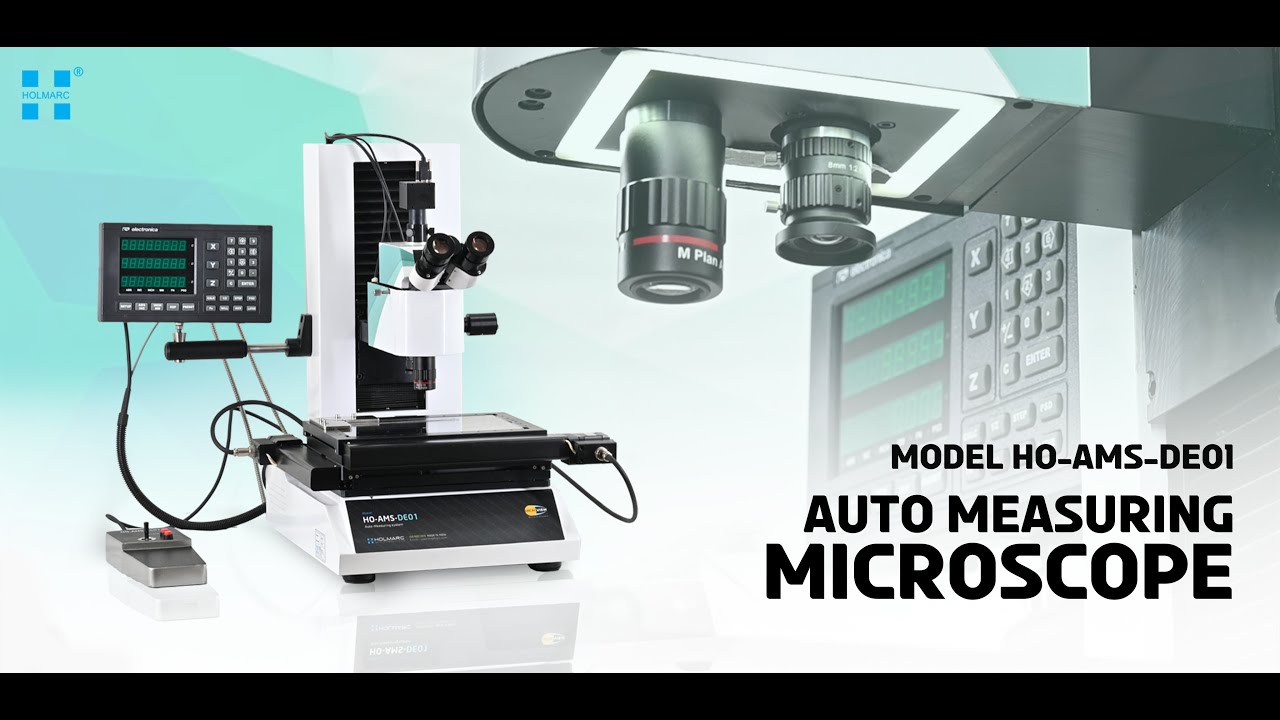

Holmar's Auto measuring microscope Model number: HO-AMS-DE01 measuring system is equipped with a dual imaging system for fast measurements. The imaging system 1 is equipped with a low magnification lens for wide area imaging and Imaging system 2 is equipped a long working distance microscope objectives for high magnification images. A 200mm*100mm sample area can be captured with imaging system 1 in just 4 frames. The high precision motorized XY stage is fitted with linear encoders and DRO will be used to display the encoder feedback. Motorized Z focusing stage with autofocusing algorithm is provided for sample focusing. In addition to the dual camera system, a binocular observation is also provided for visual inspection of the samples.
In order to take measurements, the user simply needs to click on the desired point on the stitched image from imaging system 1, and the sample stage will move there automatically. Then the starting point can be aligned with the reference cross line on the software using the imaging system 2. The software records the co-ordinate data from DRO. Now select the next point from the stitched image, and align it with the reference cross line using imaging system 2. The distance between these two points will be displayed on the software.
Read more at
https://www.holmarc.com/auto_measurin...
#microscope #measuringinstruments #measuringmicroscope #labequipment #manufacturing #measurementsystem #analyticinstruments #holmarc
