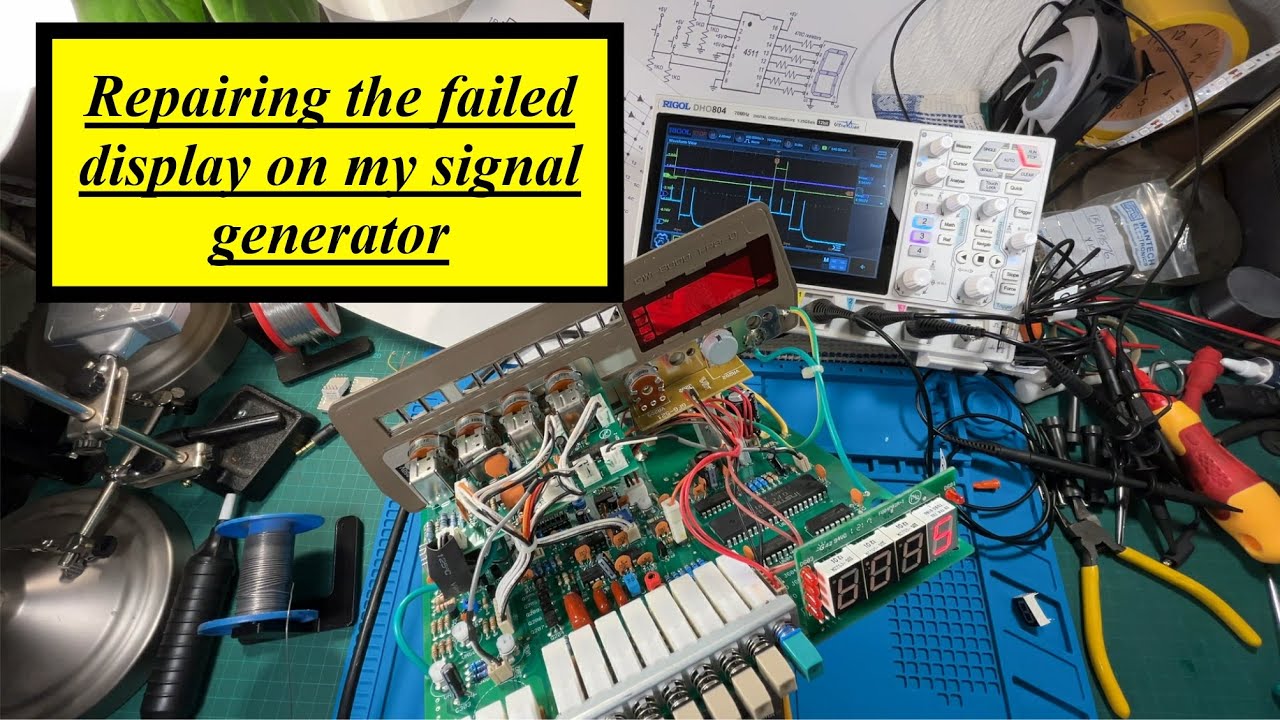

Repairing the display on my GW Instek GFG 8020 H signal generator

Описание: The leds in the 7 segment displays and the 3mm leds had failed, so I go about fitting new ones and it is better than new.
I have a nice bright display again now.
#repair #electronics #testing #led #display #diagnosis #soldering

Red LEDs (Light Emitting Diodes) are widely used due to their efficiency, longevity, and versatility. Understanding their nature and degradation over time involves examining their physical structure, operation, and factors that contribute to their wear.
________________________________________
Nature of Red LEDs
1. Principle of Operation:
o LEDs, including red ones, are semiconductor devices. When a suitable voltage is applied, electrons and holes in the semiconductor recombine, releasing energy in the form of photons (light).
o The specific color emitted, such as red, depends on the energy bandgap of the semiconductor material. For red LEDs, materials like gallium arsenide phosphide (GaAsP) or aluminum gallium arsenide (AlGaAs) are commonly used.
2. Advantages:
o Efficiency: Red LEDs are highly efficient at converting electrical energy into light.
o Lifespan: They typically last for tens of thousands of hours, far surpassing traditional incandescent bulbs.
o Robustness: They are solid-state devices, making them resistant to shock and vibration.
________________________________________
Degradation Over Time
Despite their durability, red LEDs do degrade over time. This degradation manifests as a gradual decline in light output (lumen depreciation) and potential changes in color quality. Key factors include:
1. Thermal Stress:
o Excessive heat is the primary cause of LED degradation. High operating temperatures can lead to material degradation in the LED chip, reducing light output.
o Over time, thermal stress can also degrade the phosphor layer (if present) and encapsulation materials.
2. Electrical Stress:
o Prolonged exposure to high currents can accelerate wear on the semiconductor junction, reducing efficiency.
3. Material Aging:
o The materials used in the LED, such as the encapsulants and the semiconductor itself, can degrade due to environmental exposure. UV light, oxygen, and moisture can contribute to this aging process.
4. Electromigration:
o Over time, the movement of metal atoms within the LED structure due to electrical current can cause failures in the LED’s internal connections.
5. Package Degradation:
o The encapsulating resin or plastic can discolor or yellow due to UV exposure or heat, reducing light output and altering the color.
________________________________________
Performance Indicators of Degradation
1. Light Output Decline:
o The most noticeable effect is a reduction in brightness over time. This is typically measured as L70 or L50, where L70 refers to the time taken for light output to drop to 70% of its initial value.
2. Color Shift:
o As materials degrade, the wavelength of emitted light may shift, altering the perceived color of the LED.
3. Increased Forward Voltage:
o The voltage required to maintain a constant current increases as the semiconductor junction degrades.
________________________________________
Mitigating Degradation
1. Thermal Management:
o Use of heat sinks, proper ventilation, and thermal interface materials to manage heat dissipation.
2. Appropriate Driving Conditions:
o Operating LEDs within their specified current and voltage ranges helps avoid excessive stress.
3. Quality Materials:
o Using high-quality encapsulants and packaging materials improves resistance to environmental factors.
4. Regular Maintenance:
o In environments with heavy usage or exposure to harsh conditions, periodic inspection and cleaning can mitigate performance loss.
________________________________________
In summary, while red LEDs are highly reliable and long-lasting, their performance does decline over time due to thermal, electrical, and material-related stresses. Proper design, usage, and maintenance can significantly extend their operational lifespan.
