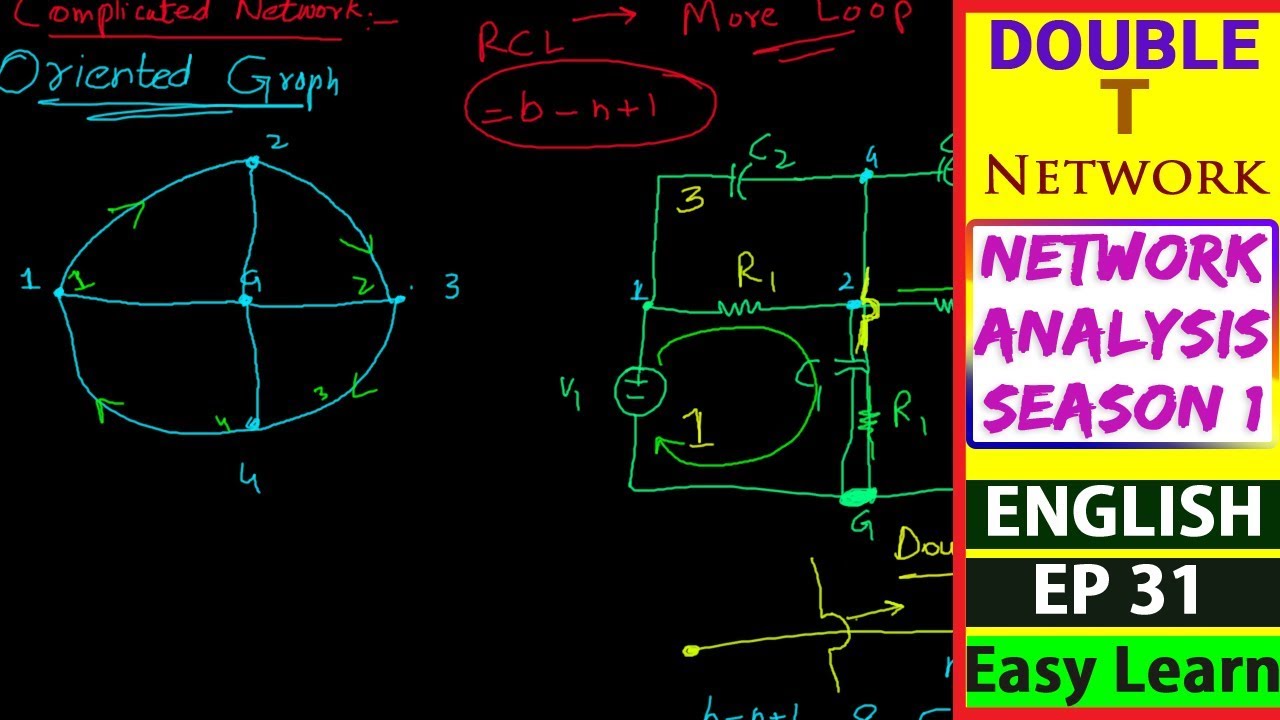

A Double T Network Oriented Graph | Network Analysis season-1 | EP#31 English
Автор: Easy Learn
Загружено: 2019-05-30
Просмотров: 32
Описание:
The example selected for today’s lecture is a complex network having a two T networks merged into one called “Double T” network. Double T network plays vital dole in band filters etc. for this and all other complex networks it is best practice to draw the Oriented Graph first and assign directions to it. This will help us to write equations very easily. As in our case we are facing the network having four loops that are linked with each other. This type of loops that are connected are assigned direction of current using “window pane rule”. Because this is a complex network so we are not able to complete this in one episode and need one extra episode to terminate this topic. Stay tuned to Easy Learn as free online complete courses are the one of the key feature of this organization.
#EasyLearnHD #DoubleTnetwork #VanValkenburg #NetworkEquations
