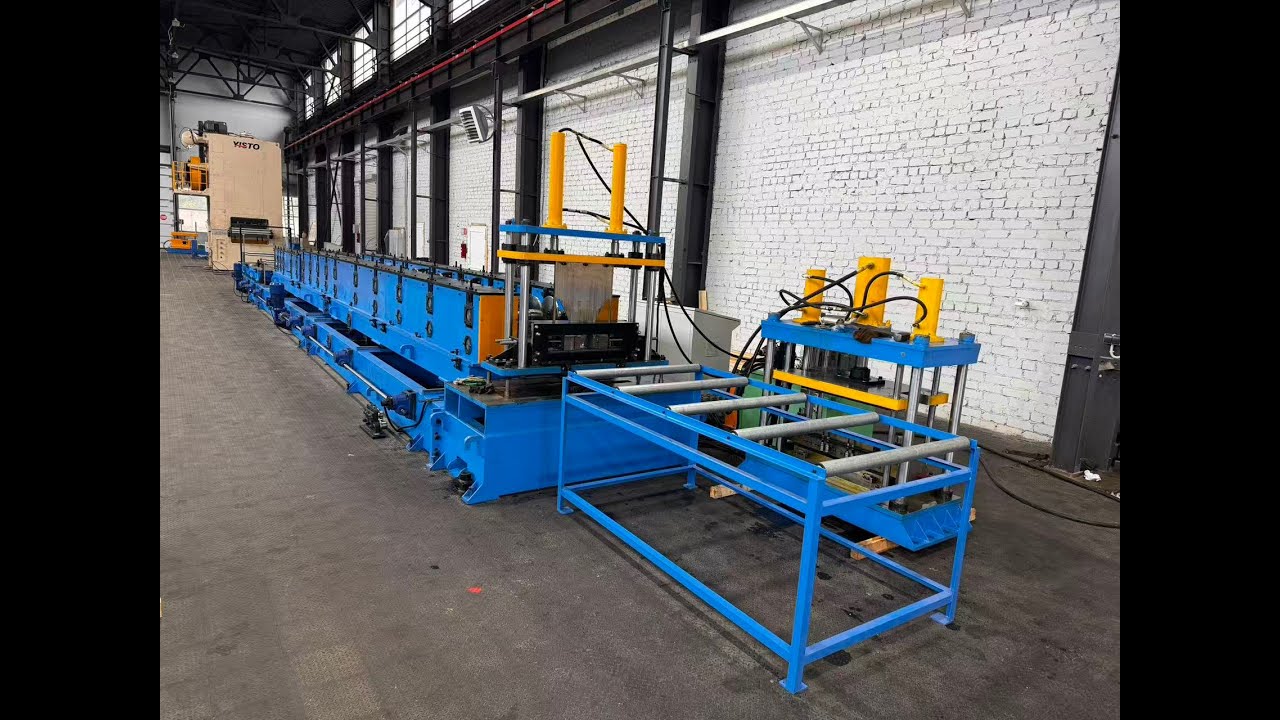

Russian Popular Type Perforated Cable Tray Roll Forming Machine | Full Production Line Demonstration

Описание: This detailed video showcases the 𝐑𝐮𝐬𝐬𝐢𝐚𝐧 𝐏𝐨𝐩𝐮𝐥𝐚𝐫 𝐓𝐲𝐩𝐞 𝐏𝐞𝐫𝐟𝐨𝐫𝐚𝐭𝐞𝐝 𝐂𝐚𝐛𝐥𝐞 𝐓𝐫𝐚𝐲 𝐑𝐨𝐥𝐥 𝐅𝐨𝐫𝐦𝐢𝐧𝐠 𝐌𝐚𝐜𝐡𝐢𝐧𝐞, a high-efficiency manufacturing solution capable of producing both cable trays and their covers on a single line. Watch as we demonstrate the automatic process, from coil loading to the unique hydraulic shrinking device that ensures easy jointing and assembly in the field. If you are looking to upgrade your cable management production, this machine is the answer.

𝐕𝐢𝐝𝐞𝐨 𝐎𝐯𝐞𝐫𝐯𝐢𝐞𝐰 & 𝐊𝐞𝐲𝐰𝐨𝐫𝐝 𝐈𝐧𝐭𝐞𝐠𝐫𝐚𝐭𝐢𝐨𝐧
Maximize your output and precision with our advanced 𝐜𝐚𝐛𝐥𝐞 𝐭𝐫𝐚𝐲 𝐫𝐨𝐥𝐥 𝐟𝐨𝐫𝐦𝐞𝐫 𝐦𝐚𝐜𝐡𝐢𝐧𝐞. This industrial powerhouse is designed for heavy-duty, continuous production of perforated cable trays. We highlight the key engineering features that make this machine popular and reliable, including the robust Servo Feeder system that works with 𝐡𝐢𝐠𝐡-𝐩𝐫𝐞𝐜𝐢𝐬𝐢𝐨𝐧 𝐏𝐫𝐨𝐠𝐫𝐞𝐬𝐬𝐢𝐯𝐞 𝐃𝐢𝐞𝐬 for accurate hole punching before the material even enters the forming stage.

The core of the line is the 𝐀𝐮𝐭𝐨𝐦𝐚𝐭𝐢𝐜𝐚𝐥𝐥𝐲 𝐀𝐝𝐣𝐮𝐬𝐭𝐚𝐛𝐥𝐞 𝐑𝐨𝐥𝐥 𝐅𝐨𝐫𝐦𝐢𝐧𝐠 𝐬𝐲𝐬𝐭𝐞𝐦. Unlike fixed machines, this model allows for rapid changes in cable tray dimensions, accommodating diverse market demands. The unique 𝐑𝐚𝐟𝐭𝐞𝐝 𝐌𝐢𝐥𝐥𝐬 provide incredible flexibility, enabling operators to switch easily between producing the tray bodies and the corresponding covers. This versatility translates directly into reduced setup time and higher operational efficiency for your facility.

Watch closely at the 2:23 mark to see the cutting-edge feature: the 𝐡𝐲𝐝𝐫𝐚𝐮𝐥𝐢𝐜 𝐜𝐮𝐭𝐭𝐢𝐧𝐠 𝐮𝐧𝐢𝐭 that simultaneously performs a precise cut and 𝐬𝐡𝐫𝐢𝐧𝐤𝐬 𝐨𝐧𝐞 𝐞𝐧𝐝 𝐨𝐟 𝐭𝐡𝐞 𝐜𝐚𝐛𝐥𝐞 𝐭𝐫𝐚𝐲. This proprietary shrinking mechanism is a game-changer for installation, allowing pieces to fit together securely and seamlessly without extra manipulation, drastically speeding up on-site assembly. Investing in this 𝐩𝐞𝐫𝐟𝐨𝐫𝐚𝐭𝐞𝐝 𝐜𝐚𝐛𝐥𝐞 𝐭𝐫𝐚𝐲 𝐦𝐚𝐤𝐢𝐧𝐠 𝐦𝐚𝐜𝐡𝐢𝐧𝐞 means investing in quality, speed, and future-proof manufacturing.

𝐓𝐚𝐛𝐥𝐞 𝐨𝐟 𝐂𝐨𝐧𝐭𝐞𝐧𝐭𝐬
Use these timestamps to jump to the most relevant part of the cable tray roll former demonstration:

0:00 – Introduction: Overview of the Perforated Cable Tray Roll Forming Machine
0:05 – Coil Loading: Hydraulic Uncoiler and Coil Car
0:10 – Material Prep: Leveler for Flat Coil Feed
0:15 – Punching Process: Servo Feeder, Punch Press, and Progressive Dies
0:40 – Roll Forming Core: Adjustable Stands, Rafted Mills, and Gear Transmission
1:23– Cutting Innovation: Hydraulic Cutting and End-Shrinking Device
1:40 – Product Showcase: Final Cable Trays, Perforations, and Shrinked Ends
2:10 — Conclusion

❓ 𝐓𝐞𝐜𝐡𝐧𝐢𝐜𝐚𝐥 & 𝐌𝐚𝐜𝐡𝐢𝐧𝐞 𝐒𝐩𝐞𝐜𝐢𝐟𝐢𝐜𝐚𝐭𝐢𝐨𝐧 𝐐𝐮𝐞𝐬𝐭𝐢𝐨𝐧𝐬
These questions are often asked by engineers and plant managers looking for production capability.
𝐏𝐫𝐨𝐝𝐮𝐜𝐭𝐢𝐨𝐧 𝐒𝐩𝐞𝐞𝐝: What is the maximum production speed (meters per minute, or pieces per hour) for the finished perforated cable tray?
𝐀: 5-6m/min

𝐌𝐚𝐭𝐞𝐫𝐢𝐚𝐥 𝐂𝐨𝐦𝐩𝐚𝐭𝐢𝐛𝐢𝐥𝐢𝐭𝐲: What is the maximum and minimum thickness (in mm or gauge) of galvanized steel or other materials the machine can process?
𝐀: 0.6-1.5 mm, or customized

𝐒𝐢𝐳𝐢𝐧𝐠 & 𝐀𝐝𝐣𝐮𝐬𝐭𝐦𝐞𝐧𝐭: Can this machine produce different widths and flange heights, and how long does the changeover process take?
𝐀: Yes, 50-600 mm width, 50-100 height, or customized, changeover time is 5 minutes

𝐏𝐮𝐧𝐜𝐡𝐢𝐧𝐠: What types of punching patterns (e.g., side holes, bottom slots) can the inline hydraulic punching system handle?
𝐀: Customized, long slots, round hole, deep holes, ribs

𝐄𝐧𝐝-𝐒𝐡𝐫𝐢𝐧𝐤𝐢𝐧𝐠 𝐃𝐞𝐯𝐢𝐜𝐞: How does the hydraulic shrinking device work, and what is its main benefit for installation?
𝐀: While cutting, the shrinking dies will push the end to be shrink, and the end will be easy to insert to the normal end

𝐂𝐨𝐦𝐩𝐨𝐧𝐞𝐧𝐭𝐬: What brands (e.g., Siemens, Panasonic) are used for the 𝐀: PLC, motor, and other critical electrical components?
A: Siemens PLC, Motor, Yaskawa Inverter, Schneider plugs

💰 𝐈𝐧𝐯𝐞𝐬𝐭𝐦𝐞𝐧𝐭 & 𝐎𝐩𝐞𝐫𝐚𝐭𝐢𝐨𝐧𝐚𝐥 𝐐𝐮𝐞𝐬𝐭𝐢𝐨𝐧𝐬
These questions focus on cost, efficiency, and ROI for business owners.
𝐂𝐨𝐬𝐭/𝐏𝐫𝐢𝐜𝐢𝐧𝐠: What is the approximate cost or price range for a machine with this level of automation?
𝐀: Around USD 300,000

𝐃𝐞𝐥𝐢𝐯𝐞𝐫𝐲 & 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧: What is the typical lead time for manufacturing and delivery, and do you offer installation/training services?
𝐀: 6 Month lead time, and free installation and trainning

𝐌𝐚𝐢𝐧𝐭𝐞𝐧𝐚𝐧𝐜𝐞: What are the daily or weekly maintenance requirements for the roll forming unit and the punching dies?
𝐀: View details : https://belirollforming.com/roll-form...

𝐄𝐧𝐞𝐫𝐠𝐲 𝐂𝐨𝐧𝐬𝐮𝐦𝐩𝐭𝐢𝐨𝐧: What is the power requirement (kW) of the entire roll forming line?
𝐀: Around 100 KW

𝐒𝐢𝐧𝐠𝐥𝐞-𝐋𝐢𝐧𝐞 𝐕𝐞𝐫𝐬𝐚𝐭𝐢𝐥𝐢𝐭𝐲: How quickly can the line be adjusted to produce the cable tray cover after producing the main tray body?
𝐀: 2-4 hours
