Analog Discovery 2 Logic Analyzer Basics
Автор: Bruce Schreiner
Загружено: 2020-05-28
Просмотров: 5692
Описание:
Analog Discovery 2 (AD2) & Waveforms Software, Logic Analyzer Basics

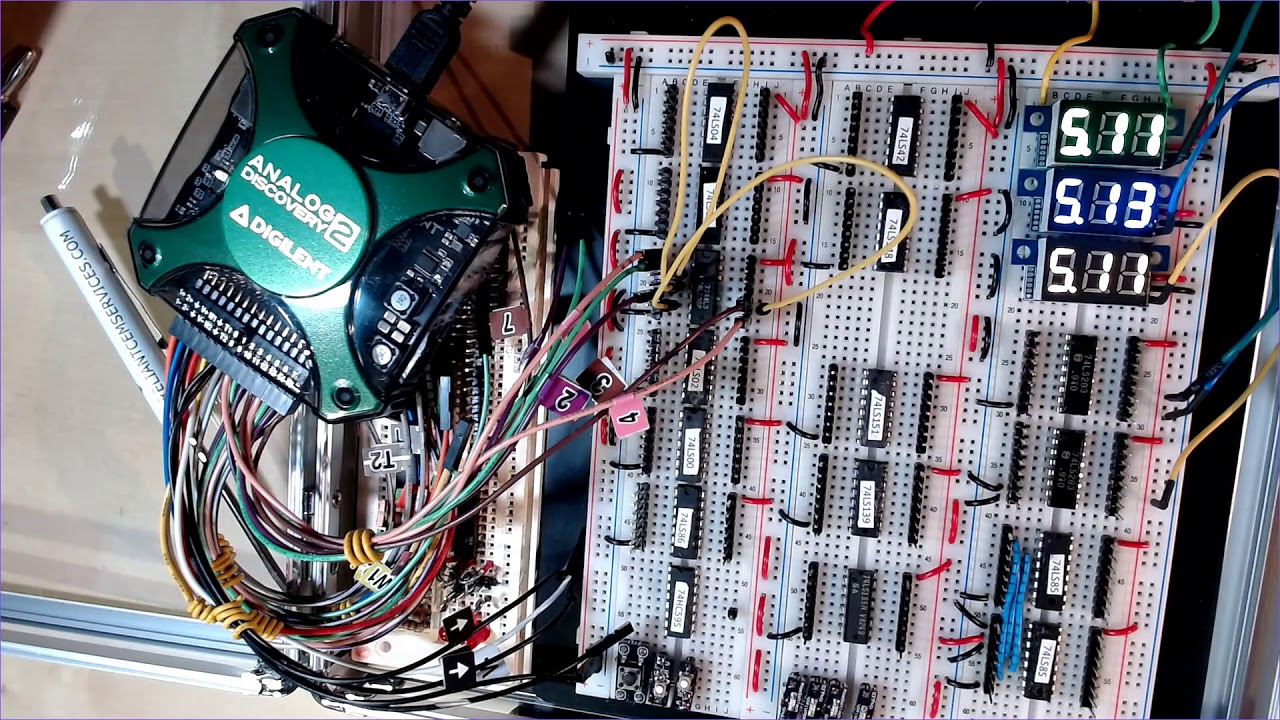

The basics of using the Analog Discovery 2 logic analyzer to capture input and output waveforms from a simple digital logic circuit.
VIDEO SECTION TIMESTAMPS
0:01 Introduction to logic analyzers
2:48 Logic Option of Waveforms software for the logic analyzer interface
3:07 4-Input AND gate logic circuit
5:22 Logic analyzer software user interface (UI)
5:33 Connection of logic analyzer channels to the 4-input AND circuit
6:34 Logic analyzer channel setup including inputs & outputs and signals & buses
8:57 Logic analyzer capturing input and output signals
10:53 Review and summary
