TTI TCB-H100 portable 27 Mhz

Описание: 🔍

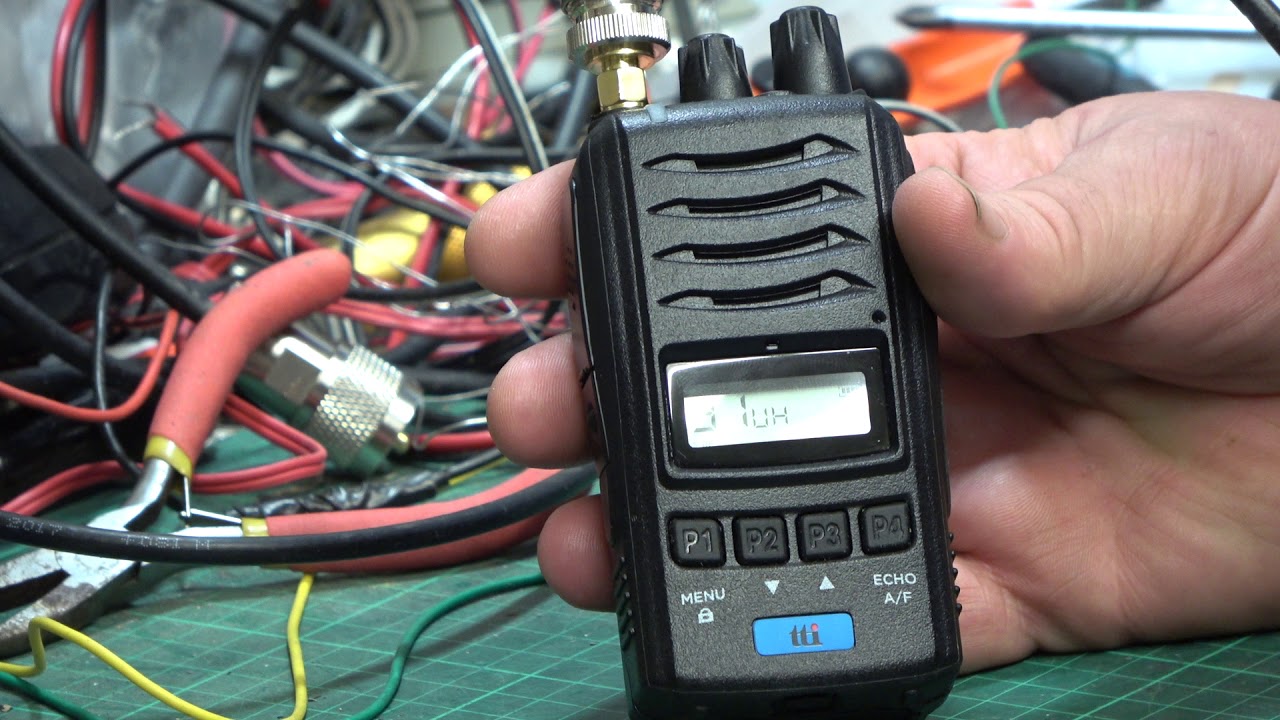

TTI TCB-H100



quantité de TTI TCB-H100
1
Ajouter au panier

Catégories : Portables, Portables CB
Description
Description
Transceiver CB Portable
• Multiband – Multi Standards (10)
• Frequency Range: 40 Channels (26.965 – 27.405 MHz)
(Standard D = 80 CH FM 4 Watt / 40 CH AM 4 Watt)
• Modulation Modes: AM / FM
• Output Power: Max 4 Watt AM / 4 Watt FM
• DDS (Dynamic Squelch Tuning System)
• Antenna Connection: SMA-Female
• Audio Accessory Jack 2-Pin, 2.5m



FEATURES, FUNCTIONS AND SPECIFICATIONS:
The TTI TCB-H100 is the new compact handheld CB radio from TTI with ECHO function, VOX function, 3 display colors and many more functions. Optional are a 12/24 volt car charger and a 12/24 volt battery eliminator with external antenna connector.

Features
• 4 Watt AM/FM
• Multinorm: EC, EU, d, I2, I, UE, UK, PL, F, E
• Power on/off and volume control knob
• Squelch adjuster and DDS (Dynamic Squelch Tuning System)
• Emergency button, channel 9/19
• PTT button, red LED lights during TX
• 3 color backlighting: red, amber, green or no color
• Scan function
• Menu function
• Lock function
• VOX function, 3 levels
• Beep tone
• Roger beep
• Channel up/down buttons
• AM/FM button
• Echo function
• Signal strength meter
• Low battery indicator

Specifications
• Frequency range: 26.56-28 MHz
• Operating mode: F3E (FM), A3E (AM)
• Frequency control: PLL synthesizer
• Frequency tolerance: 0.002%
• Operating temperature range: -10 to +55 Celsius
• Power supply: 7.4V (Li-ion battery)
• Size: 57 (W) x 116 (H) x 39 (D) mm
• Weight: 224 gram

Transmitter
• Power output: Duty cycle 10% 4 Watts @ 13.2V DC
• Modulation:
…AM: from 85% to 95%,
…FM: 1.8 kHz +/- 0.2 kHz
• Frequency response: 300 Hz to 3000 Hz
• Output impedance: 50 Ohms, unbalanced
• Harmonic suppression: less than -54 dBm
• Current drain: AM full Mod. 1.6A Max.

Receiver
• Receiving system: dual conversion superheterodyne
• IF frequencies: double conversion
…1st 10.695 MHz
…2nd 455 kHz
• Sensitivity:
…1.4 uV for 10 dB (S + N) / N in AM mode
…0.8 uV for 20 dB SINAD in FM mode
• Audio output power: 1W @ 16 Ohm
• Audio distortion: less than 8% @ 1 kHz
• Image rejection: more than 60 dB
• Adjacent channel rejection: more than 60 dB
• Conducted spurious: less than -57 dBm
• Frequency response: 300 Hz to 2500 Hz
• Built-in speaker: 16 Ohms, round
• Squelch: adjustable, threshold less than 1 uV, DSS less than 2 uV

PACKING INCLUDES:
1 Pc of Transceiver
1 Pc of Antenna (SMA-Male Type)
1 Pc of Rechargeable Battery (Li-Ion TBP-2007L)
1 Pc of Charging Cradle (TCG-1010FS)
1 Pc of AC Adapter (DZ012ALL120100V)
1 Pc of Belt Clip
1 Pc of User Manual in English
