Simcenter Design Exploration - HEEDS

Описание: Red Cedar Technology provides solutions to quickly and easily explore design possibilities so you can discover better designs faster. A key aspect of this is the ease in reviewing simulation results to gain insight into product performance across a wide array of possible designs.
However, static screen shots can only convey so much information. There are times where you want to look at results from a different perspective or focus on a specific part. Keeping all the simulation results for 100’s or 1000’s of design concepts is often not practical and also means going to other tools to review the information.

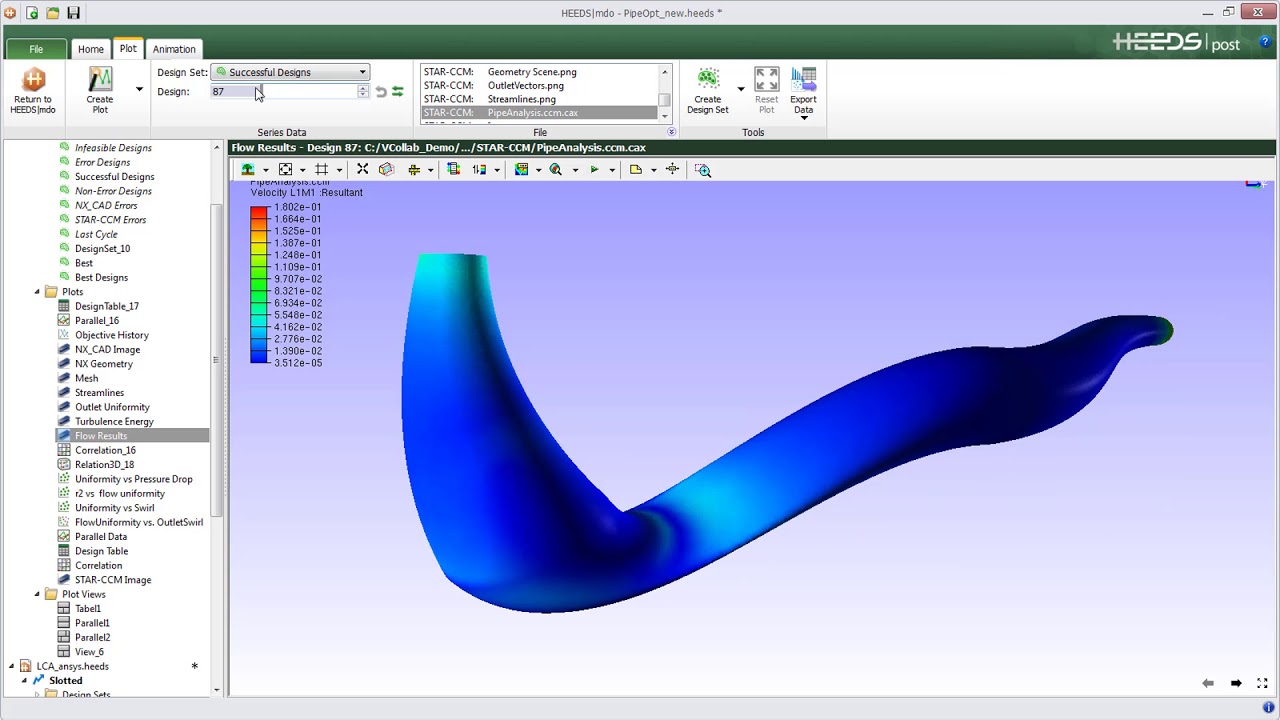

To streamline the process of reviewing design study results, Red Cedar Technology has partnered with Visual Collaboration Technologies to enable interactive review of designs and simulation results. With VCollab tools integrated within HEEDS, you have the ability to generate interactive models from leading edge CAD and CAE products for each design iteration. This provides visual control aspects such as part visibility, the type of result displayed, and section clipping delivering more detail and flexibility.
So, instead of viewing just static images associated with each design variation, you now have the added convenience of quickly looking at results from all angles without the need to load the data in the specific simulation product. With VCollab files being a fraction of the source results file size, you can review the key results for all variations quickly and efficiently. More importantly, you can do this all from within HEEDS.
To assist in recording results or for the design review process, VCollab files can be directly embedded in Microsoft Office applications such as PowerPoint. Results can now be dynamically viewed which is a powerful capability when comparing different designs.
Red Cedar Technology not only makes it easy to find better design alternatives, but now review results from any angle, all from the convenience of HEEDS Post.
