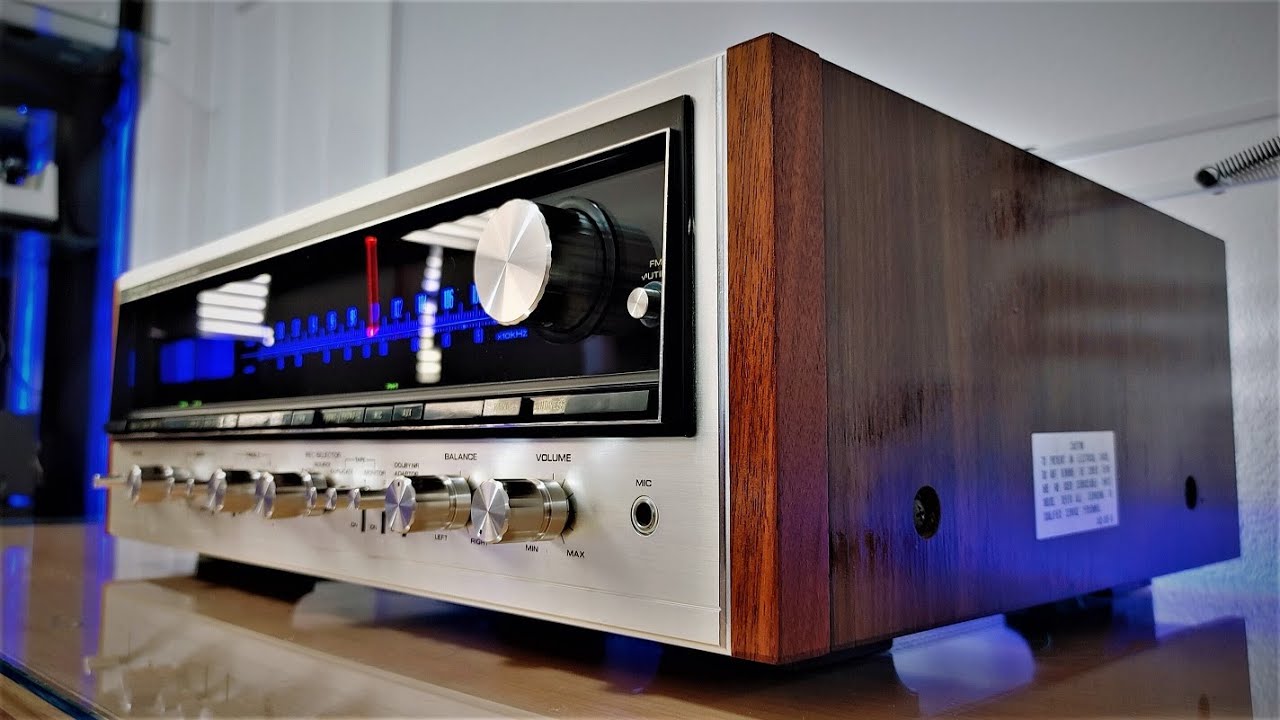

Pioneer SX 838 Demo

Описание: This video demonstrates the functions and condition of my 40 year old Pioneer SX-838. Just serviced.

Service Details:
Cleaned tuning capacitor
Lubricated dial cord pulleys and tuning dial shaft
Repaired dial pointer
Removed output transistors, cleaned old thermal compound, new thermal compound applied
Replaced dial lamps with 5, fuse-type LEDs
Replaced Meter lamps with 2, fuse-type LEDs
Replaced all three speaker position indicator lamps with miniature AC audio lamps
Cleaned all audio contacts & all pushbutton, throw and selector switches with Deoxit D5
Cleaned both Volume and Balance potentiometers with Deoxit D5 followed by Deoxit F5
Lubricated all control shafts
Right and Left Power Amplifier Sections aligned according to the service manual
Polished & cleaned all rear audio connections
Thoroughly cleaned both the upper and lower internal compartments of the receiver
Dial glass polished front and back
Faceplate and knobs cleaned and polished
All screws and nuts re-torqued
IF and Radio adjustments left intact (not included in basic restoration service)
Tape I//O's and advanced recording functions, untested (not included in basic restoration service)
Bench-tested all basic functions.
35 hours of run time since service.
