Circuit Analysis with Kirchhoff's Laws | Solving Circuits with Multiple Batteries

Описание: In this video, we dive into a comprehensive circuit analysis using Kirchhoff's Current Law (KCL) and Kirchhoff's Voltage Law (KVL) to solve a circuit with two batteries and multiple resistors. If you're struggling with circuits that have more than one battery, this tutorial will walk you through each step of applying Kirchhoff's laws to find the currents and voltages in a complex circuit.

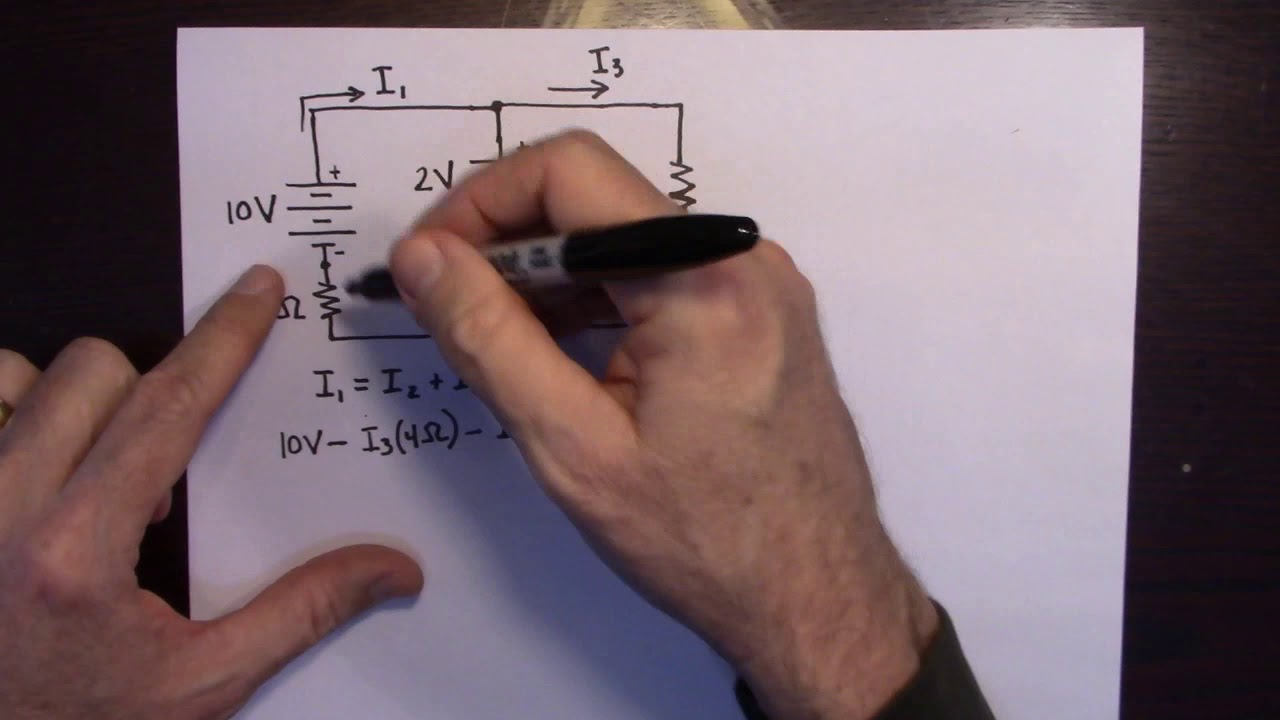

What you’ll learn:

How to use Kirchhoff's Current Law (KCL) to solve for currents at a node
Applying Kirchhoff's Voltage Law (KVL) in loops to set up and solve voltage equations
The role of Ohm’s Law (V = IR) in calculating voltage drops across resistors
Step-by-step breakdown of solving three equations for three unknown currents
Understanding negative current values and correcting initial assumptions on current direction
Verifying your solution using voltage checks in each loop

By the end of this tutorial, you'll understand how to approach circuits with multiple batteries using a combination of Kirchhoff’s Laws and Ohm’s Law. Perfect for electrical engineering students, physics enthusiasts, or anyone preparing for exams on circuit theory!

🔔 Subscribe for more circuit analysis tutorials and step-by-step guides on physics topics!

Chapters:
0:00 Intro to the Circuit Problem
1:00 Kirchhoff’s Current Law Explained
1:30 Kirchhoff’s Voltage Law Setup
5:00 Applying Ohm’s Law
7:20 Solving the System of Equations
9:15 Solutions
12:00 Voltage Check & Verification
