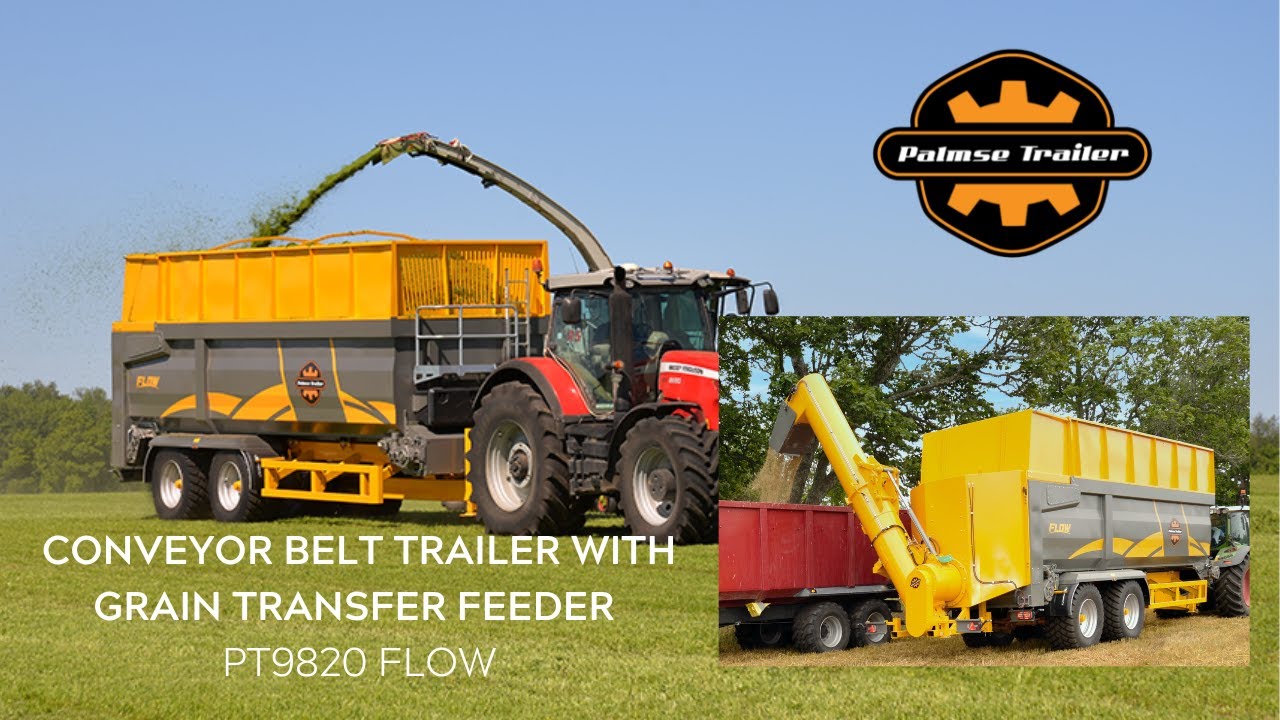

NEW! Conveyor Belt Trailer PT9820 FLOW

Описание: Thanks to the conveyor belt, this multi purpose trailer can transport grain, chips, silage; at same time hay bales, pallets etc. can be placed on the belt with the forklift.

What does FLOW mean?
It is a
trailer equipped with a smart conveyor
system that simplifies loading.


What more?
The main purpose is to reload the grain
with a screw feeder at a speed of up to 15
m3/min;.

Another version is the loading of silage
and bulk material using a conveyor belt
at a speed of up to 49m3/min.

*The entire conveyor and reloading system
can be remotely controlled.

*There are also mechanical levers behind
the trailer, which can be used as an alternative
if needed.

*The state-of-the-art control system understands
whether there is a hydraulic
hatch or a screw feeder configuration
attached.

*In the side construction of the box, straight
wall plates are replaced with a profiled
one, which makes the entire construction
almost 40% more resistant to horizontal
loads.

*There is only one side post to match the
strength with the design - the profiled side
provides strength to reduce the number of
posts in order to lower the final weight of
the trailer.

*The upper profile and side post are much
deeper, which add even more strength.

*The new feature is air suspension of the
volume trailer. The entire suspension and
axle section is produced by the highly recognized
manufacturer BPW.

*A high level of safety has also been taken
into account in the design of the backdoor.

*A sensor is installed to indicate the limit
positions of the conveyor belt.

*The screw and the body of screw feeder
is made of wear resistant steel to provide
greater durability.

*All lubricated bearings are easily accessible
for easy maintenance.

*We have created a platform at the front
of the trailer that is also compatible with
other bulk-dumper trailers produced by
Palmse Trailer.

*The trailer can be ordered with or without
extensions.
For more information, contact our sales: [email protected]
