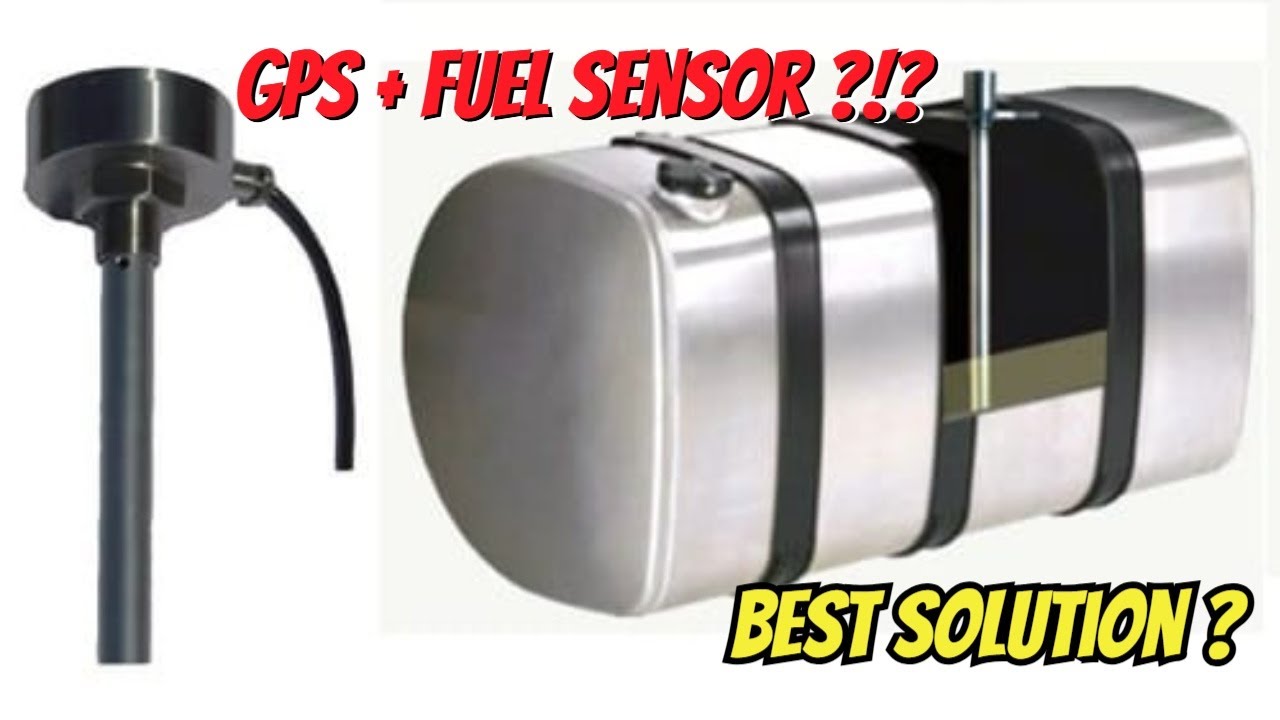

TS-C11 CLS2 Fuel Sensor Vehicle GPS Trackers Capacitive Fuel Level Sensor Installation Video
Автор: Arthur QI
Загружено: 2017-11-16
Просмотров: 19328
Описание:
Telegram special channel: https://t.me/vehicle_fuel_level_sensor
https://www.thingsys.com/product-page...
This is an installation video of the TS-C11 CLS2 Capacitive Fuel Level Sensor. This Capacitor Fuel Sensor works with all Professional Vehicle GPS Trackers from our company. Together with our Professional Vehicle GPS Trackers, it's the main hardware part of our Solution of GPS tracking with Fuel Monitoring for Trucks and Buses.
Specifications:
Examination range: 100~1000mm
Resolution ratio: 0.1%
Measuring accuracy: 0.1%
Maximal error of measurement: 1mm
Heat-resistant:-40~150
Diameter Φ18mm
Output signal: 4~20mA, 0~5V, RS485, RS232, CAN bus
Voltage supply: DC7~42V
Rated supply: 0.1W
Fixed type: Screw installation M20X1.5 or Flange mounting
Pressure range:-0.1MPa ~ 0.1 MPa
Ambient temperature -40~85℃
