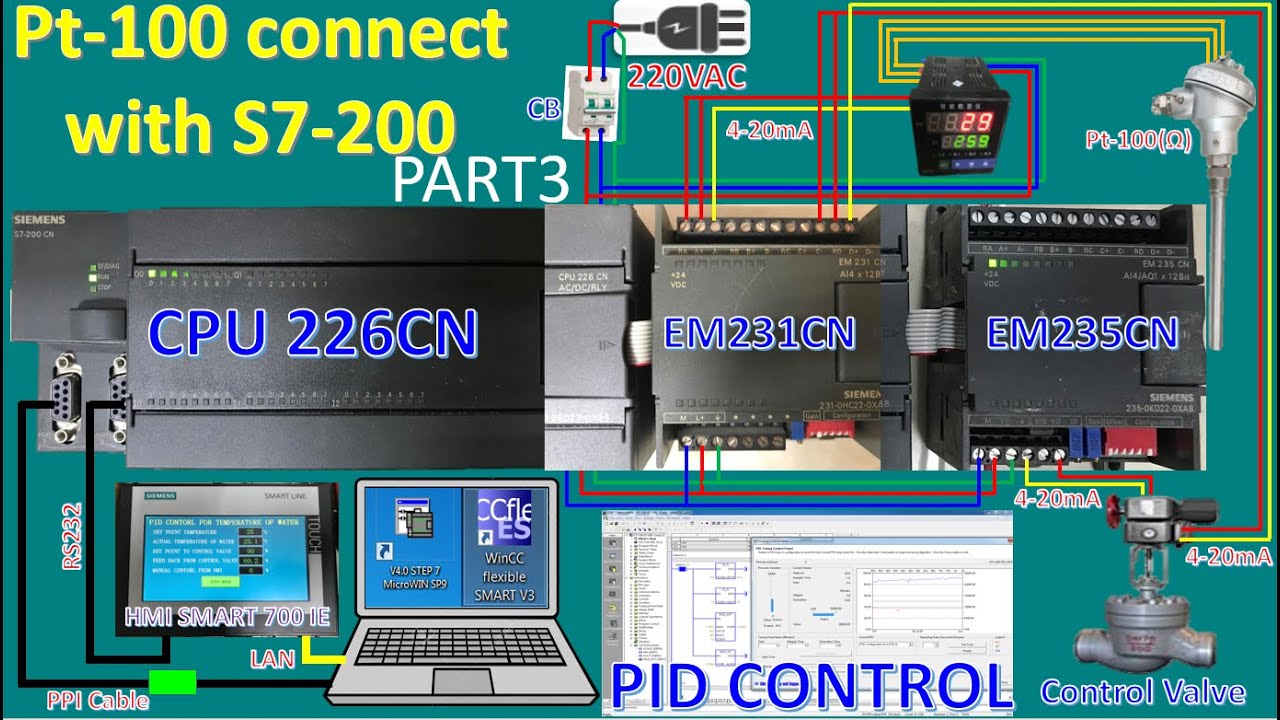

How to connect Pt-100 and control valve to PLC S7-200 and link to HMI SMART 700 IE V3 (PID Control)

Описание: Hello YouTubers and Programmers,
Today I have one video for show and share about how to use software Step7 MicroWin V4.0 SP9 and WinCC Flexible Smart V3 to create the PID control and connect with temperature sensors RTD, Pt-100 and control valve to show on HMI SMART 700 IE V3 part 3.
In this video everyone will understand about how to wiring cable from Pt-100 to analog input module of PLC S7-200 EM 231CN, control valve by using analog output module of PLC S7-200 EM 235 CN then create the new project for HMI by using the software WinCC Flexible Smart V3 and download the project to HMI model SMART 700 IE V3 . And everyone will also understanding steop by step about how to create the PID control and tuning also.
