Описание:
Steps 6

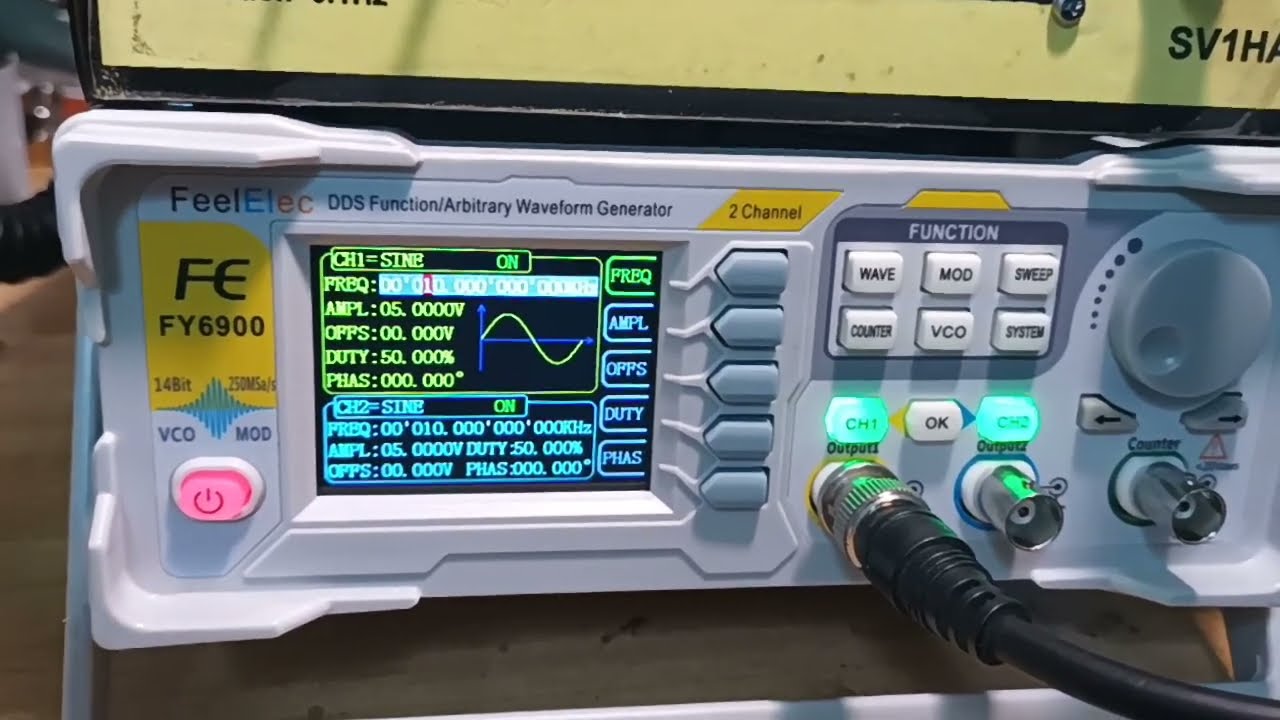

1. Press and hold the STBY and CH1 buttons. Then, while keeping both buttons pressed with one hand, use the other hand to switch the generator's rear switch to the ON position to power on the generator. When you hear the beep, release your hand from the STBY and CH1 buttons. You have now entered the hidden menu and can proceed with the oscillator calibration by carefully following the next steps
2. Set CH1 frequency to 10MHz
3. Go to the adjustment menu (SYSTEM, MORE, OSC)
4. Move the cursor to the right to reduce the frequency step
5. Adjust the frequency until your frequency counter reading is 10MHz
6.Press and hold in the OK button for three second
to save the new setting . 73! de sv1hag
