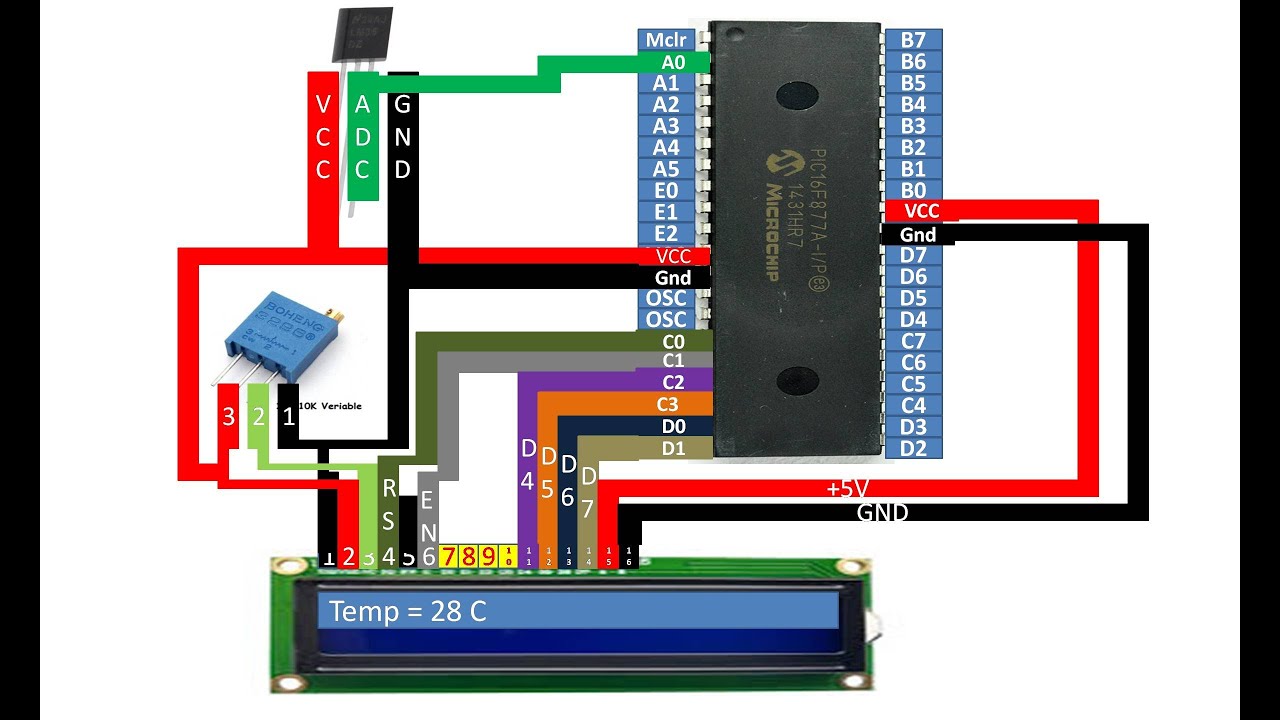

This tutorial is about how to interface an LM35 sensor with a PIC16F877A microcontroller and it displays output on a 16x2 LCD. Demonstration is on proteus software.

Become a Patreon and support my channel using link below:
https://patreon.com/user?u=81261678

How to setup PIC hardware video link:
   • Setting up a PIC16F877A/PIC16F887/PIC18F****

How to setup Lm016 16x2 LCD video link:
   • PIC16F877A interface Lm016 16x2 JHD LCD. U...

Code of current video is as under:

// Lcd pinout settings
sbit LCD_RS at RC0_bit;
sbit LCD_EN at RC1_bit;
sbit LCD_D7 at RD1_bit;
sbit LCD_D6 at RD0_bit;
sbit LCD_D5 at RC3_bit;
sbit LCD_D4 at RC2_bit;

// Pin direction
sbit LCD_RS_Direction at TRISC0_bit;
sbit LCD_EN_Direction at TRISC1_bit;
sbit LCD_D7_Direction at TRISD1_bit;
sbit LCD_D6_Direction at TRISD0_bit;
sbit LCD_D5_Direction at TRISC3_bit;
sbit LCD_D4_Direction at TRISC2_bit;
float temp;
char temp1[6];
float celcius;

void main() {
LCD_init();
Delay_ms(500);

ADC_init();
Delay_ms(500);

Lcd_Cmd(_LCD_CURSOR_OFF);
Delay_ms(100);

Lcd_Cmd(_LCD_CLEAR);
Delay_ms(100);

while(1)
{
temp = ADC_read(0);
Delay_ms(50);

celcius = ((temp * 5.0)/1024) * 100;
Delay_ms(50);

floattostr( celcius , temp1 );
Delay_ms(50);

LCD_OUT(1,1, "Temp = " );
LCD_OUT(1,9, temp1);
LCD_OUT(1,16, "C");
Delay_ms(100);



}
}
