Описание: Machine Name : Automatic Edge Cutting Machine (DD Saw)

Model No. : ELIXIR P15

Webpage : https://kumarengineeringco.in/product...

---------------------

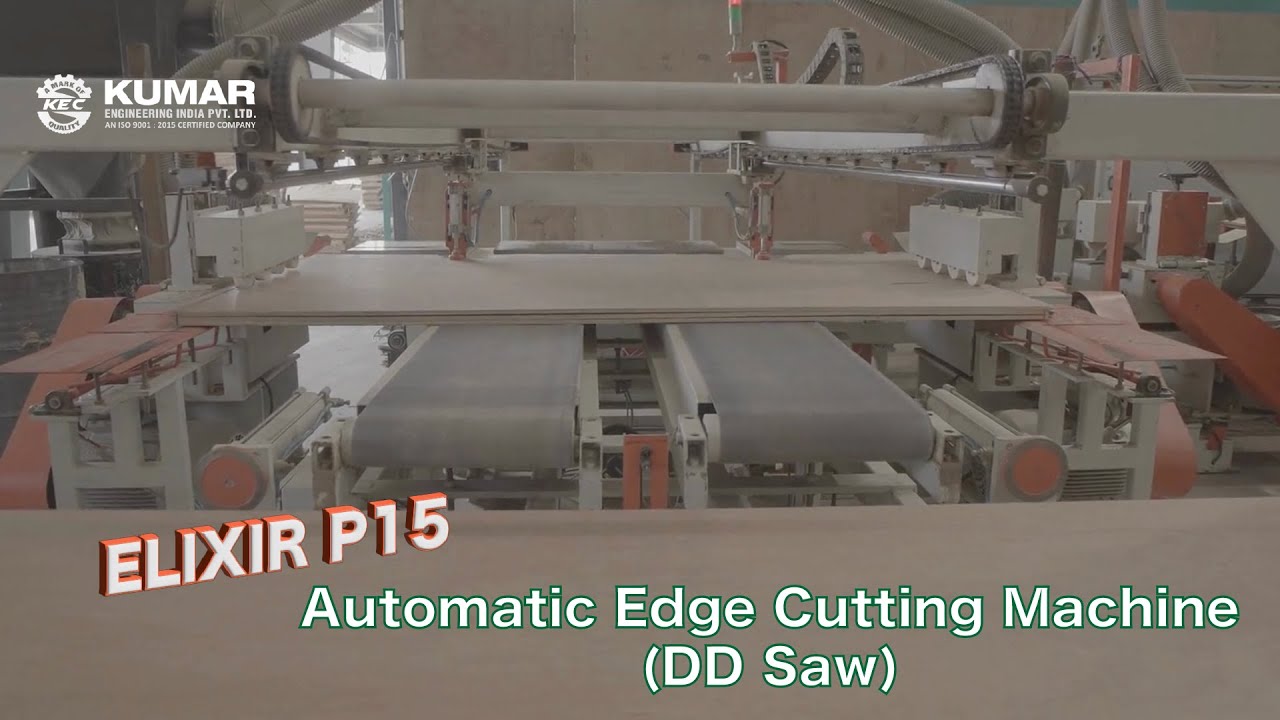

The Automatic Double Dimensional Saw (DD Saw) is a high-precision machine engineered for fully automated trimming of panels on all four sides. It begins by trimming the panel along its longer side using high-speed blades rotating at 6000 RPM. Once the length-side trimming is complete, the panel is automatically rotated 90 degrees, allowing the head and tail ends to be precisely cut by two additional cutters.

The entire process—from panel loading to final trimming—is fully automated, eliminating the need for manual intervention. After trimming, the panel is transferred to a scissor lift via pneumatic pushers, where all edges are aligned for consistency.

The machine can handle panel thicknesses of up to 60 mm and supports multi-piece processing, allowing 10 pieces at 6 mm, 5 pieces at 12 mm, or 3 pieces at 19 mm to be trimmed simultaneously. Each cycle takes approximately 30 seconds, enabling two complete trimming cycles per minute, ensuring high productivity and precise panel sizing.

Specific Features
• High-speed cutting blades with 6000 RPM for precise trimming
• Automated 90-degree panel rotation for complete four-side trimming
• Pneumatic pushers for precise panel alignment on scissor lift
• Multi-piece processing for efficient, high-volume production
• Low power consumption through intelligent blade activation system

Application
This machine is essential for trimming panels after the hot pressing stage, ensuring precise sizing for further processing. It is widely used in the furniture, cabinetry, and modular panel manufacturing industries, where accurate panel dimensions are critical for high-quality final products.

Our Solution
We provide this machine as a comprehensive trimming solution, focused on delivering high production efficiency, precise cutting, and user-friendly operation. Our commitment to reliability is reinforced by 24/7 service support, ensuring smooth, uninterrupted operation. This combination of performance and support makes our machine a dependable choice for high-volume manufacturing.

-----------------------------------------------------
