Spiral Gluing Machine for Heavy Duty Air Filter

Описание: This type of machine is used to dispense the hot melt on the inner and outer surface of the heavy duty air filter.

Machine Components:
1.De-coiler
2.Upper gun driver
3.Lower gun driver
4.Computer control cabinet

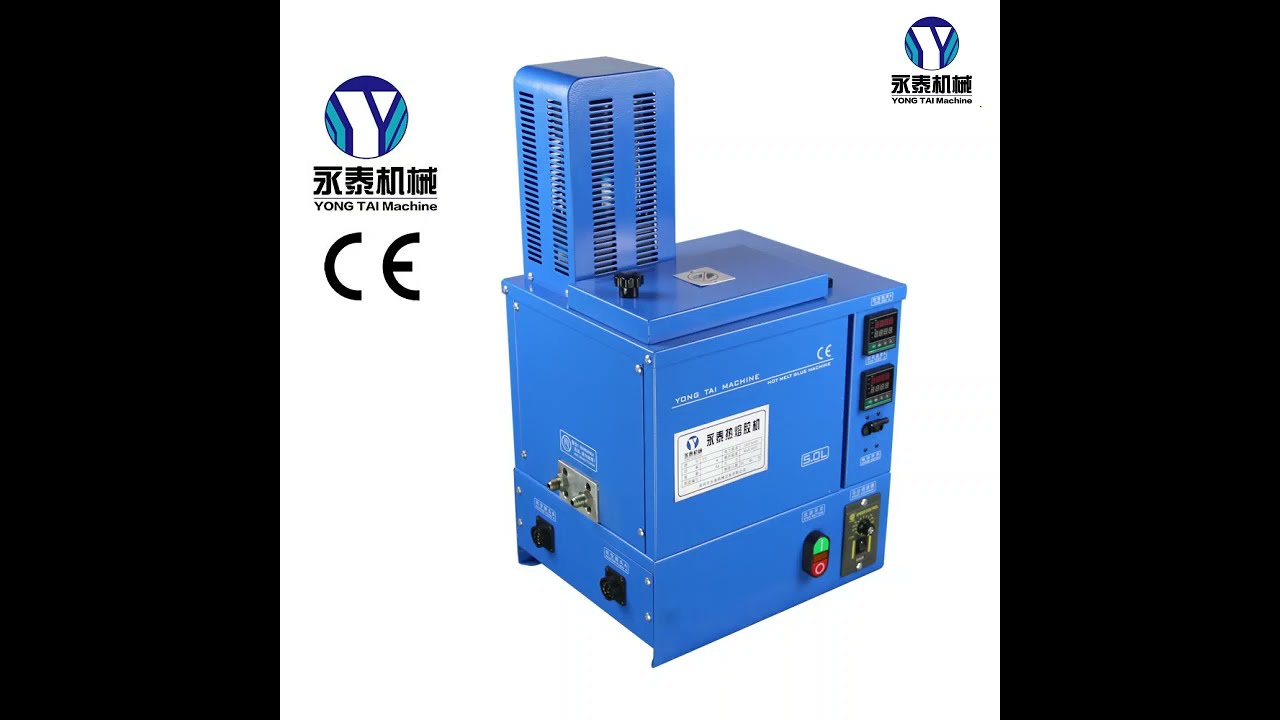

5.Hot melt applicator

Specifications:
1.Production capacity: 3-5pcs/min
2.Max air filter length: 950mm
3.Min air filter diameter: 100mm
4.Power supply: 220V/50Hz
5.Air pressure: 0.6Mpa
6.Power supply of hot melt applicator: 380V/50Hz
7.Hot melt capacity: 10kg
8.Hot melt heating power: 6Kw
9.Total power: 1Kw
10.Machine weight: 450kg
11.Hot melt applicator size: 800mm*600mm*1400mm (L*W*H)
12.Main machine size: 3200mm*850mm*1500mm (L*W*H)

Features:
1.The inner and outer mesh is well positioned together with paper by the hot melt. And the paper can remain together even under big air pressure.
2.The filter glued with hot melt will prevent the resistance from increasing as a result of no space between two pleats when filter paper is pressured.
3.The pitch of the machine can be adjustable according to the size of the filters through the PLC computer control system. The hot melt can be glued both in form of straight and spiral.
4.The inner and outer circle can be glued both or independently with the electrical adjusted.
5.This machine can be operated both automatically and manually.

For more information, please visit http://www.cnfiltermachine.com or directly write to us [email protected]
