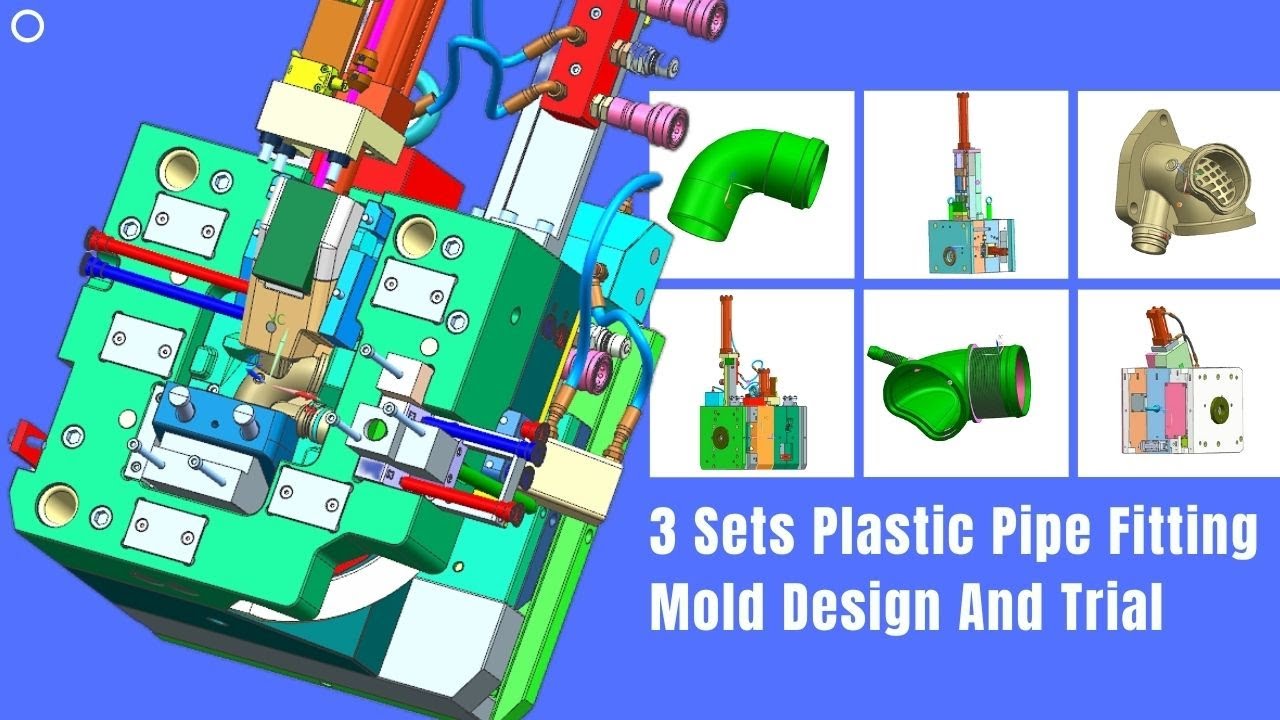

3 Sets Plastic Pipe Fitting Mold Design And Trial

Описание: If you want to get more pipe fitting mold content, please follow our channel.
View more examples of plastic pipe fitting molds: https://www.spark-mould.com/pipe-elbo...

This video contains the mold design ideas for 3 sets of plastic pipe fitting molds and the trial mold process. These three sets of molds are the most classic of all our pipe fitting mold structure. Contains a lot of mold design ideas.

The first set: auto plastic pipe fitting mold.
The product material is PA6+GF. The mold standard is HASCO, cold runner. The characteristic of this pipe joint is that one of the nozzles is irregularly shaped. We design a three-segment slider to deal with the core-pulling problem here. The delay design allows the slider to be drawn out in an orderly manner.

The second set: auto plastic pipe fitting mold.
The product material is PA6+GF. The mold standard is HASCO, hot runner.
This connector has a 90-degree arc segment and two branches at different angles. This connector has a 90-degree arc segment and two branches at different angles. We designed 3 sets of hydraulic cylinders to complete the core pulling mechanism.

The third set: 90 degree elbow with rubber ring groove
The collapsible core is used to process the internal grooves of the pipe. The chain core is used to handle 90-degree arc. It is difficult to combine these two core-pulling mechanisms into a set of molds. We designed a delay mechanism to make them cooperate perfectly. When the mold is opened, the core pulling action of the collapsible core is completed first, and then the chain core is pulled out as a whole. When the mold is closed, this action is reversed.
