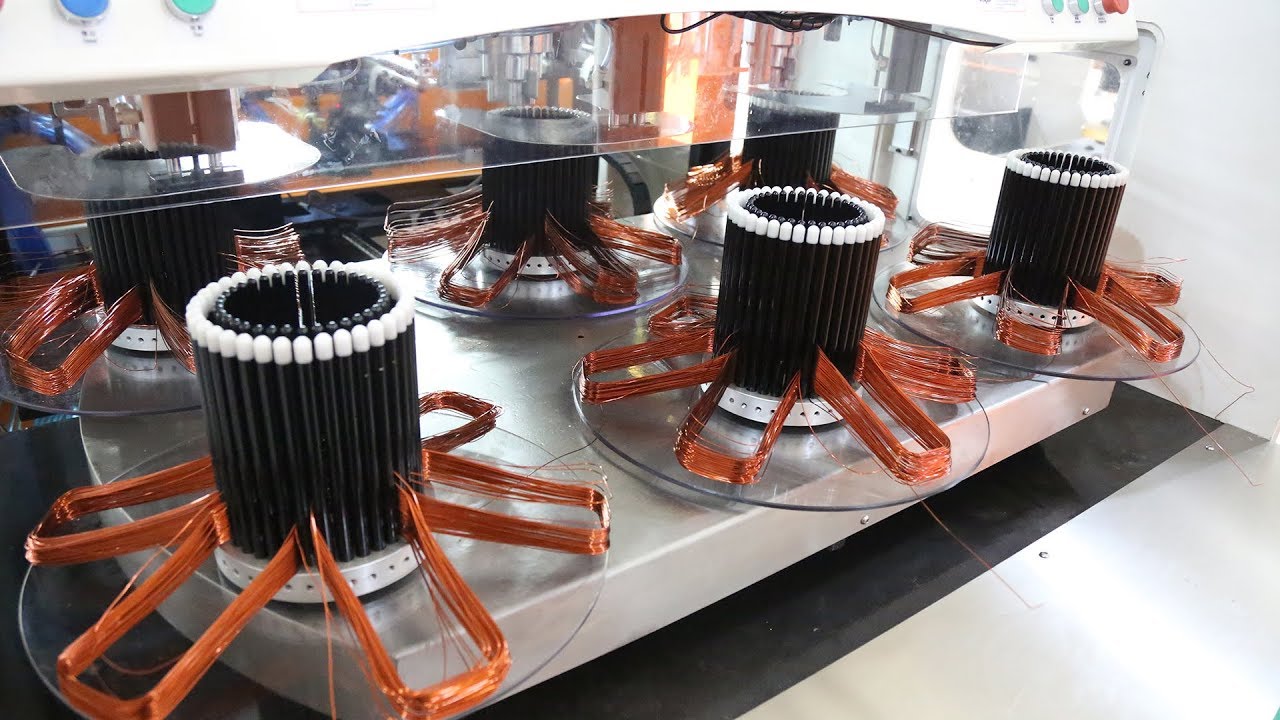

Automatic electric motor stator coil winding and inserting machine

Описание: The electric motor stator coil winding and inserting machine is suitable for three phase motors,such as a variety of machine tools, lifting machinery, pumps, fans, all kinds of production machinery, power drainage irrigation, agricultural and sideline products processing equipment, etc.
The stator coil winding and inserting machine is designed for three phase motors. Mainly used for winding and coil inserting for three phase motor, motor with tapping; adopt servo system, 4 station or 6 station design, can complete 3 phase coil winding , wedge cutting, coil insertion, phase insulation paper insertion etc. Has remote control function, can be integrated into auto line, double driving system for coil insertion, auto stack height adjustment, support Ipad operation.
The winder and inserting machine can wind the three groups of wires at the same time and increases the two places for insulating paper, results in the function of inserting wires and increase the phase insulation simultaneous, and reduce manual work after, the winding machine are used servo motor drive to ensure the machine's operation is accurate and stable,adopts double power line to insert the coil , can meet the production of high slot full rate products.
This stator coil winding and inserting machine is can do coil winding, coil inserting and wedge inserting. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer. This machine can detect the wire coating damage. The winding and inserting station is controlled by servo motor. The parameter can be set in the touch screen.
With several station working simultaneously, this winding and inserting machine is efficiency and saves labor cost.
If you want more information, please contact us.
