What's in the Box:

Mixer
Power Adapter
User Manual
USB interface cable
Bluetooth Antenna

Features:

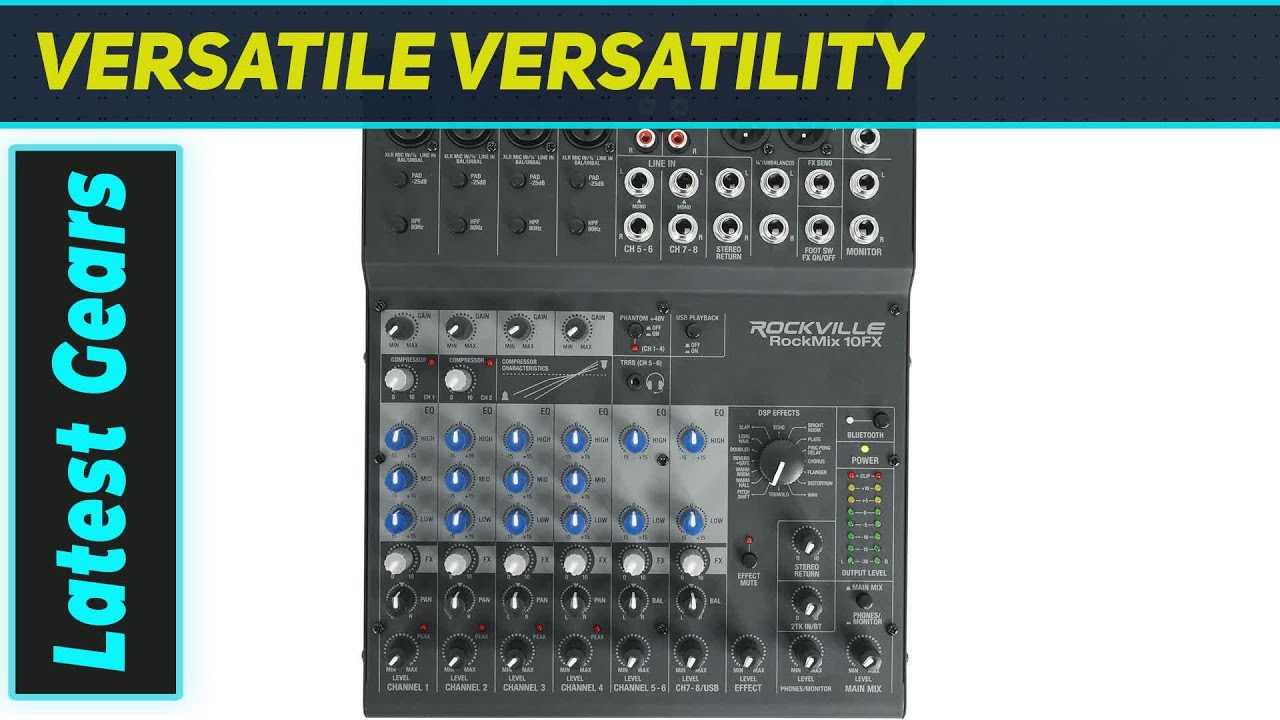

Rockville RockMix 10FX 10 Channel Mixer with USB Recording Interface, Effects and Bluetooth
Channels 1 and 2 have XLR / ¼” Mic/Line input combo jacks with gain and volume control, 3-band EQ, pan, 48V phantom power, pad, high pass filter, FX and compressor
Channels 3 and 4 have XLR / ¼” Mic/Line input combo jacks with gain and volume control, 3-band EQ, pan, 48V phantom power, pad, high pass filter, FX
Channels 5 – 8 have ¼” line input jacks with volume control and 2 band EQ, FX and can accept balanced and unbalanced signals
and 6 have ¼” inputs
Channels 9-10: TAPE Input with RCA inputs and level control assignable to either headphone or main output
USB audio interface assignable to channels 7-8 with 2 band EQ, FX, balance controls
RCA main mix output with volume control (to plug into your monitors)
XLR Main mix balanced output
¼” Main mixed unbalanced output
¼” Headset and Monitor output
24 Bit FX engine with 16 DSP Effects (Each effect sounds great)
Vocal Canceler feature for Karaoke applications
Effect mute button (controllable with an optional footswitch)
Built in professional Bluetooth wireless audio streaming
Main mix master volume knob
Built in USB interface will send the Summed Stereo Mix to your favorite DAW
Interface will be identified and addressed as an external sound card in your DAW
Peak LED indicator detects clipping on channels 1-4
Main mix has left and right clip indicators
Power on LED indicator
Super linear mic preamp with low noise (this uses a top of the line mic pre normally found in very expensive mixers)
This mixer is built out of solid steel metal and when you pick it up you immediately can feel the weight and how solid it is
All knobs and potentiometers are super sturdy and linear
48V phantom power for condenser microphones
Stereo return knob
Rubber feet
Mixer includes a power adapter DC5V/1A
British EQ circuitry is designed to emulate the classic EQ from the legendary mixers that came out in the 1950’s, 60’s and 70’s
Dimensions: (L x W x H) 12.13" x 9.84" x 2.44"
Sensitivity/ Impedance:

Mic(1-4): 3mV/5.3KΩ (Gain max)
Line, channel 1-4 (Balanced): 15mV/24KΩ (Gain max)
Line, channel 1-4 (Unbalanced): 15mV/12KΩ (Gain max)
Line, channel 5-8/ STEREO/RETURN (Balanced): 300mV/44KΩ
Line, channel 5-8/ STEREO/RETURN (Unbalanced): 300mV/22KΩ
TAPE channel: 300mV/20KΩ
Output level: 5.8V max (MAIN; MONITOR; TAPE)
Frequency range: 20 -25000 Hz
THD: ≤0.05%
S/N ratio: 88dB
Equalizer
Bass range: ±15dB/80Hz
Mid range: ±15dB/2.5KHz
High range: ±15dB/12kHz
Headphone impedance: ≥16Ω
USB interface: USB 2.0 full speed and earlier (also 1.1 compatible)
16-Bit Delta-Sigma, 44.1kHz Sampling rates; 48khHz max,
Bluetooth: Compliant with Bluetooth Specification V5.0 + EDR
Phantom power for Combo jack: 48V
Power supply via power supply unit provided and connected to AC100-240V 50/60Hz
Dimensions: 385（L）*295（W）*115（H）mm
Weight: 4.85LBS(2.2KG)
Suitable operating system for data transfer via USB interface:
Windows 2000, XP or higher; Mac OS 9.0.4 or higher, 10.X or higher.
