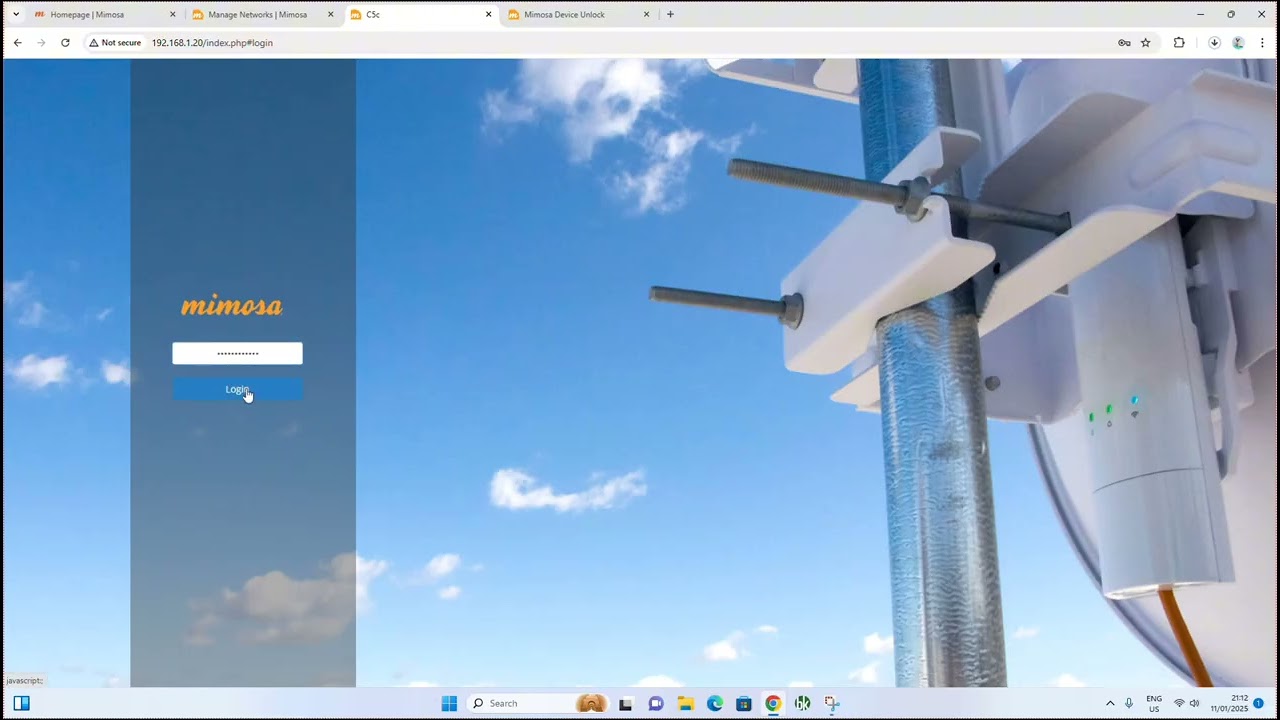

Mimsosa C5C Setp by Step Configuration

Описание: Performance
Max Throughput PTP/PTMP: 700 Mbps IP (866 Mbps PHY)
Wireless Protocols WiFi Interop
Mimosa SRS
Modes PTMP Client
PTP Backhaul
Radio
MIMO & Modulation 2x2:2 MIMO OFDM up to 256 QAM
Bandwidth* 20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS;
Tunable to standard WiFi channels for WiFi Interop
Frequency Range PTMP: 4900-6400 MHz***
PTP: 4900-6400 MHz
Restricted by country of operation
new US/FCC 5600-5650 MHz support
FCC DFS (U-NII-2a, U-NII-2c) availability pending certification
Max Output Power 27 dBm
Sensitivity ( MCS 0 ) -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
Max Power Consumption 9.2 W
System Power Method Passive PoE (24-56 VDC)
PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply (Not Included)
Physical
Dimensions Depth 44 mm (1.73")
Width 65 mm (2.56")
Height 188.4 mm (7.42")
Weight 295 grams (10.4 oz)
Mounting Single pole strap
Connector Type RP-SMA (x2)
Environmental
Outdoor Ingress Protection Rating IP55
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4420 m (14501') maximum
Shock & Vibration ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet 10/100/1000-BASE-T
Management Services Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI
Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use
Security WPA2 + Mimosa 802.1x Client**
QoS Supports 4 pre-configured QoS levels
Regulatory + Compliance
Approvals FCC Part 15.407 and Part 90Y, IC RSS210,
CE, ETSI 301 893/302 502
Other National Regulations
RoHS Compliance Yes
Safety UL/EC/EN/ 60950-1 + CSA-22.2
4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)

** Enabled in future software release

*** Extended frequency, above 6.2 GHz, requires use of A5/A5c access point with P/N 100-000xx-01
