How To: Leverage Dynamo to Create views and sheets - Update
Автор: Neil Reilly (TheCleaner)
Загружено: 2017-07-16
Просмотров: 10805
Описание:
This is an updated video and script for creating specifically plan views and placing them on sheets.

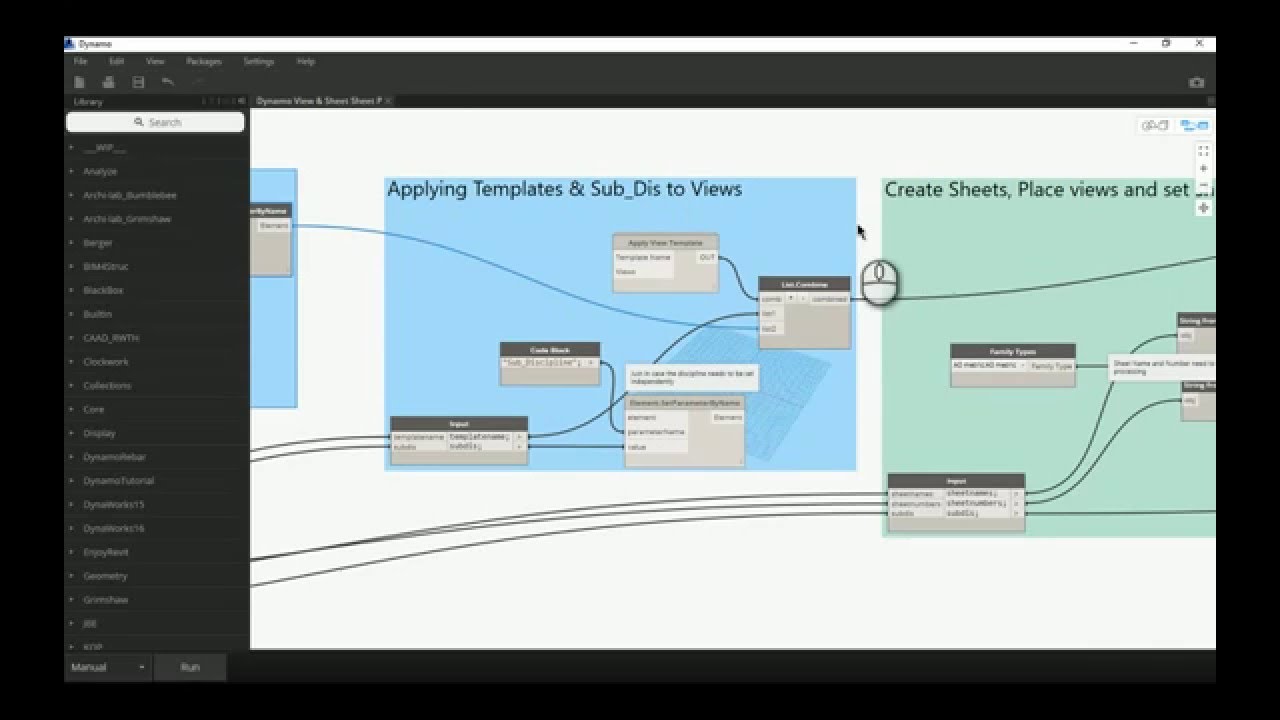

A simple Dynamo script (if you've been using Dynamo for a few months!) used to create floor plans, apply templates, apply Sub_Discipline, create sheets and place plans on sheets using {x,y} coordinates.
Have a try at creating this script on your own and see how far you can get. I made a point of zooming into all areas of the script so you can inspect and recreate. The only way to learn with Dynamo is to do with Dynamo.
For this script to work you need to spell your view templates correctly in the excel, have the correct name of the levels in the project and concerning the sheet organiser, you need a parameter, in this case mine is Sub_Discipline.
Thanks to JOSEPH PEEL in DynamoBim.org forums for the python script.
link to dynamo script:
https://mega.nz/#!jt1yGYDL!AE-_EAcUnC...
