Block Bottom Paper Bag Flour Sugar 1KG 2KG Filling Machine Rotary Filler Mills Flour Milling Millers
Автор: LaisPack
Загружено: 2023-08-14
Просмотров: 1686
Описание:
Paper Bag Flour 1KG 2KG Filling Machine Rotary Filler Fold Twice General Mills Flour Milling Millers

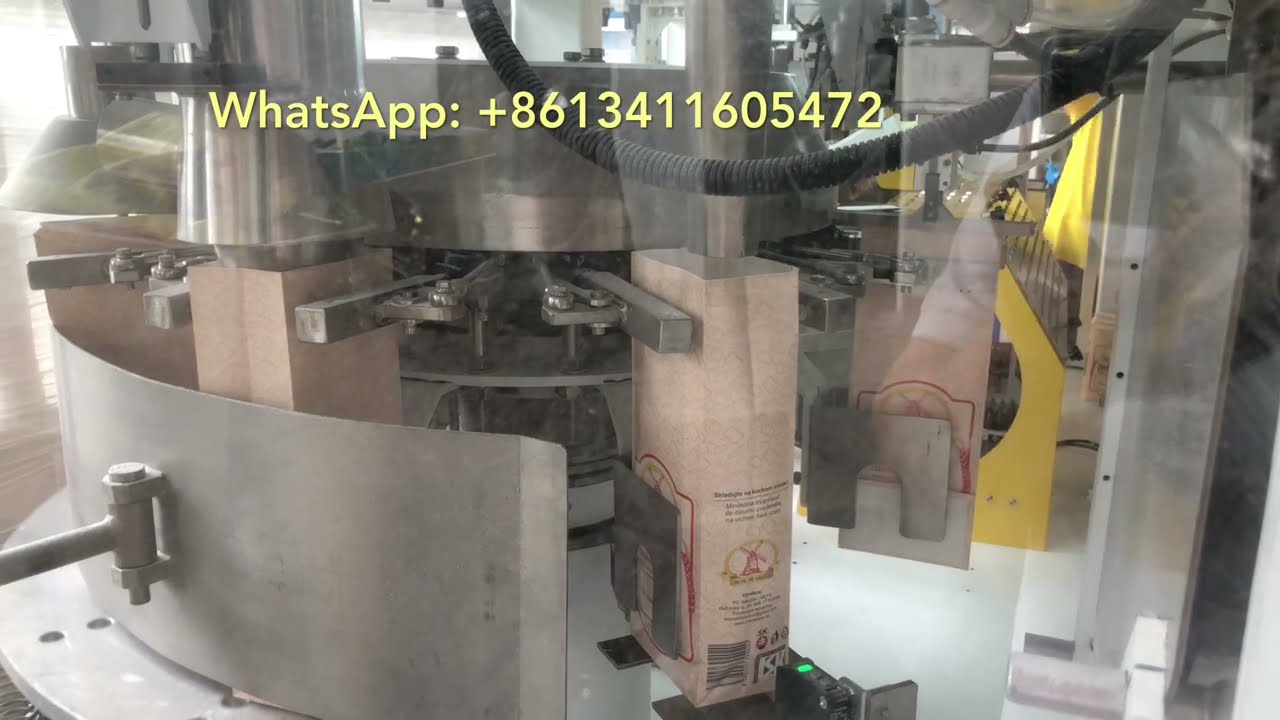

This machine is very good for the flour millers to pack the 1kg or 2kg flour into paper bags. This also use for Fine White Granulated Sugar to pack into Block bottom bag. It will pick up the ready made paper bags firstly, then use Vacuum suction cup to open the mouth of the paper bag and use air to open the full bags. There is sensor to check if there is a bag, if there are no bags, then the auger filler will not fill the bags. When they make sure the bag is there, then auger filler will fill the bags with 1kg or 2kg flour. After that will use vibrator to settle down the flour and it will with connector for connection with the dust collector. This auger filler also have closing valve on the dosing screw after filling. stack of empty bags with notification before emptying. closing the bag by folding the head of the bag twice and applying hot-melt glue. shaping the pocket into the shape of a brick. checkweigher with feedback to the screw filler and check weigher with push reject and recycling bin. horizontal screw conveyor or screw conveyor with hopper to feed flour from tank.
packaging of smooth, semi-coarse and coarse spelled flour
size of the bag: 105x65x270mm
dose weight 1000g
packing performance max. 20 bags/min
stack of empty bags with notification before emptying
regulation of vibration on the vibration plate of the carousel
vacuum cleaner for vacuum production
connection for dust extraction
level gauges in the reservoir
place a horizontal screw conveyor 1m long before entering the storage tank of the screw filler
closing valve on the dosing screw
closing the bag by folding the head of the bag twice and applying hot-melt glue
inkjet printer for printing the date
shaping the pocket into the shape of a brick, Block bottom bag
checkweigher with feedback to the screw filler
This machine's working flow is Sugar/Flour/Salt measuring---bag-opening/filling---bag-clamping---cutting---bag top side folding---gluing---output---arraying---heat shrinking---output.
Technical parameters
Model LP-2000A
Speed 600~900 bags/hour (depends on features of products and bag type)
Bag size Front width: 80mm~110mm
Side width: 60mm~80mm
Bag length: 250mm~350mm
Bag shape Flat-bottom paper bag packaging machine
Bag material packaging material: flat-bottom kraft bag, ordinary flat-bottom paper bag
Material to be packaged flour, white sugar, milk powder, etc.
Air consumption 0.8MPa Air displacement ≥0.6 m3/min
Voltage/frequency 4.5kw/380V/3p50 or 60HZ
Dimensional size (L×W×H) 2300×1300×1500mm
Weight of machine 2200KG
Automatic packing machine for ready-made, block-bottom bags
Our bagging machine for powder: flours, and granulated: dry vegetables, short pasta, etc… which uses100% recyclable and degradable : Kraft paper bags: “Zero Plastic”.
They are intended for the packaging of powder and grain products. Many flour mills use these bagging machines for flour packaging.
On the other hand, these bagging machines can combine different types of dosing devices allowing to work with powder and grain products.
Moreover, the closing system by double folding – gluing allows to improve very clearly the sealing of the bag.
LaisPack bagging machine is ideal for packaging in 100% degradable Kraft Paper bags: Flour, Rice, Dried vegetables, Short pasta, Long pasta, Litter, Powdered products, Gypsum, Potato, Coal, etc..
