Kadjar door handle removal
Автор: Daren H
Загружено: 2020-09-29
Просмотров: 16638
Описание:
Door handle removal.
Remove the cap at the end of the door,
use a T27 driver to undo the torxs screw.
It is captive so won’t fall out, I used a pair of pliers just to pull the screw back to release.
The handle end will then pull out.
All four doors are the same, even the drivers door with the lock in will just slide out.

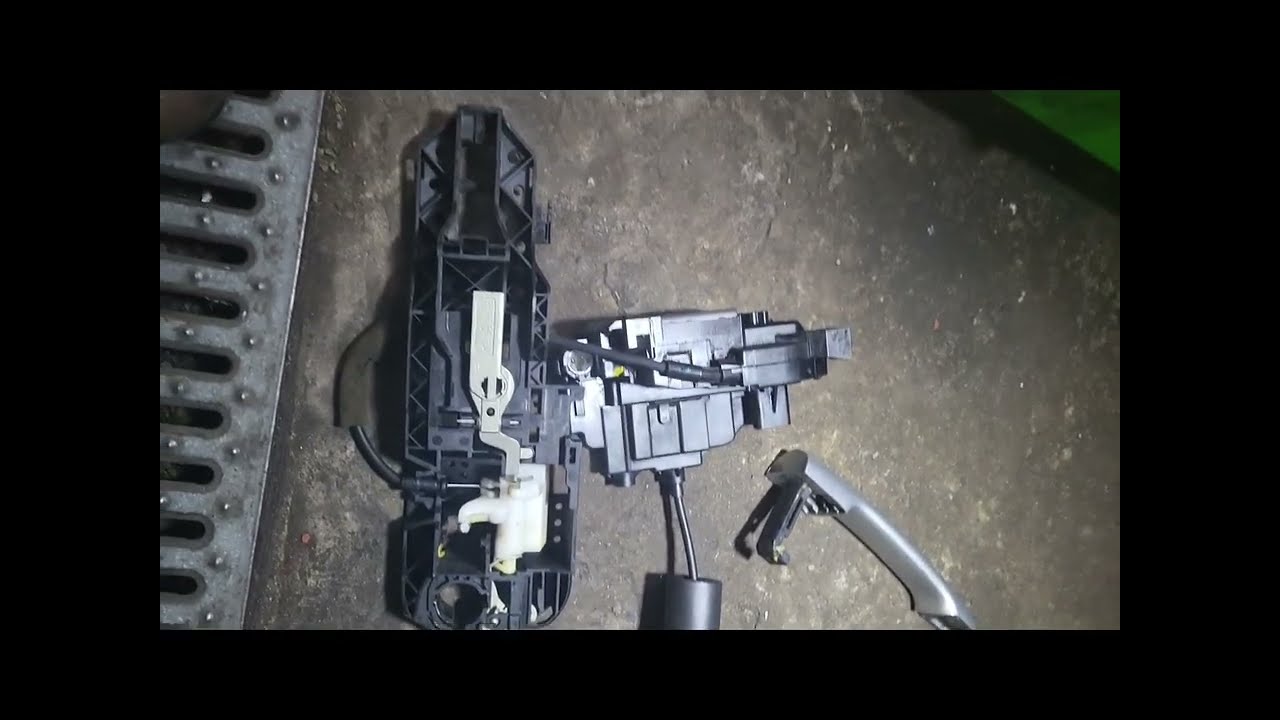

The handle will slide a little to the rear of the car and can be unhooked and removed.
There are wires for the lock button and the hands free antenna is in there as well.
The handle cap will just prise off, I used a small flat driver and a trim tool just to work along each side forcefully but carefully, don’t slip or damage the handle.
I’ve got extra wires going in for handle leds, I ended up changing an led while I had it apart.
It’s a bit tight reassembling, as I have the extra wires. Normally it’ll just clip together.
Reassemble is the reverse.
