Disassembly and Reassembly of S7-1200 CPU
Автор: ELSCITECH
Загружено: 2023-07-25
Просмотров: 1948
Описание:

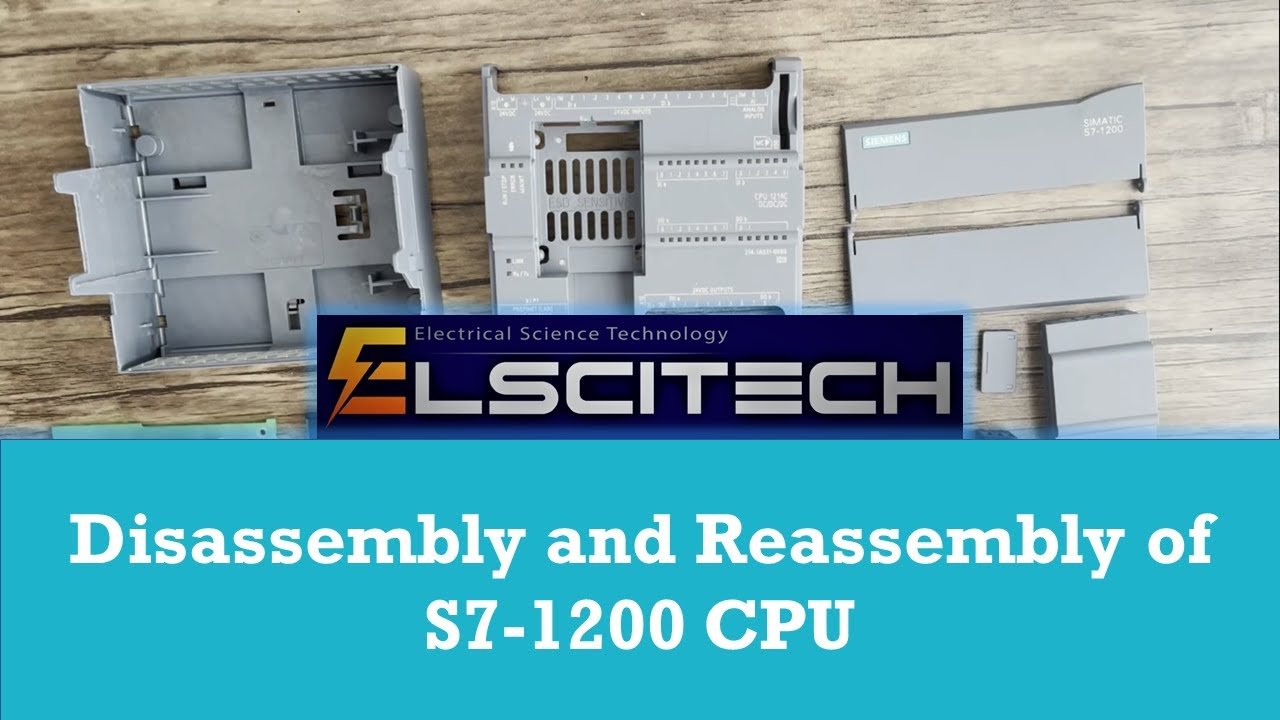

This vidoe shows you the inside of s7-1200 CPU and its parts. Moreover, you can learn the process of separating CPU into different parts (Disassembly) and gathering toghether again (Reassembly). It helps you during repairing broken CPU!
Parts of CPU are as follows:
front flap top
front flap bottom
signal board cover
bus cover
terminal block connector
front plastic cover of CPU
Light Director
Top layer circuit board (Control board)
Center layer circuit board (I/O board)
Bottom circuit board (Power supply board)
Bottom plastic cover of CPU
► Please Subscribe🔔 | Like❤️| Share ➡| Comment💬.
======🔴Keywords🔴===========
#TIA_Portal
#SIEMENS
#S7_1200
#S7_1500
======🔴Timestamps🔴=========
00:00:00 - Step 1: Disassembly
00:04:04 - Step 2: Reassembly
