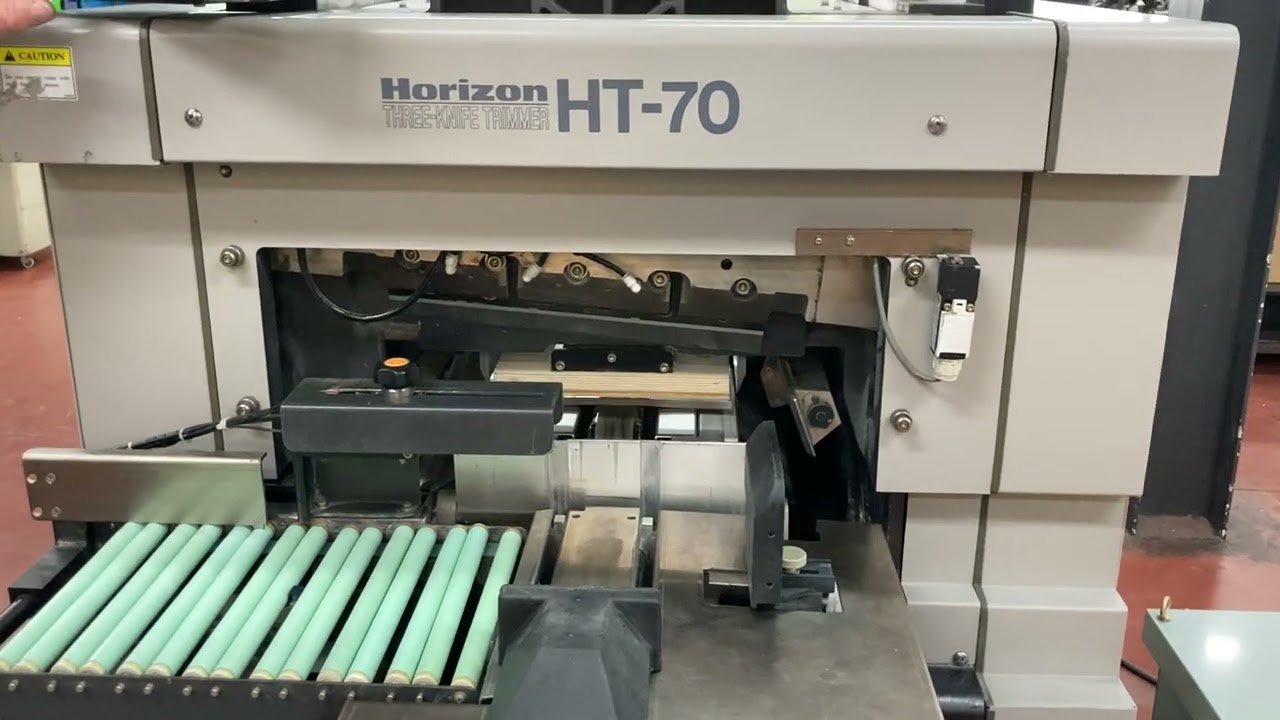

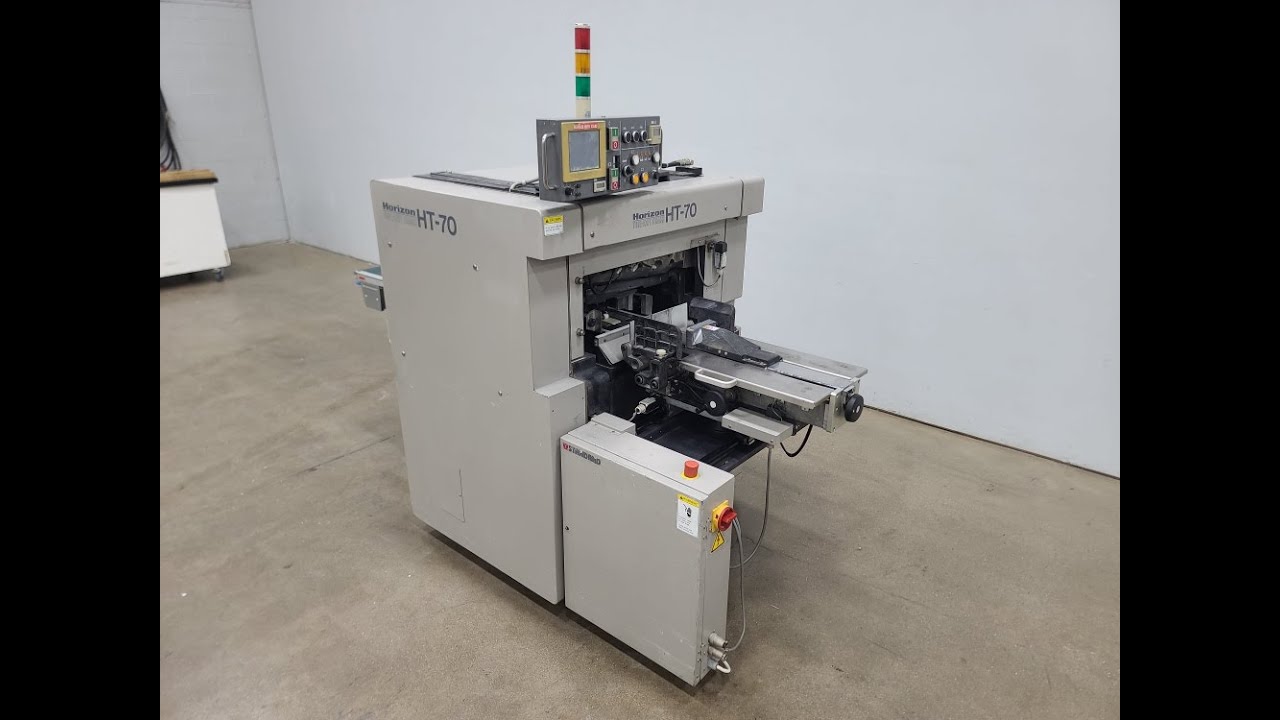

Horizon HT-70
three knife trimmer
usage:
solo (offline) and
in combination with perfect binder and cooling section (inline)
operation: trimming of one or more booklets up to max. 50mm height can be trimmed one top on the other, at one time
cutting operation: full surface pressure during the complete three knife trimming
conveyor: cut products are raised after cutting and set down on the conveyor for prevention impression marks
construction: robust
space required: low
numbers of books: medium jobs
coupled with:
Horizon BQ-470 / BQ-470 PUR
Horizon BQ-460 / BQ-460 PUR
Horizon BQ-440
speed: max. 800 cycles/min.
pressure: max. 9.8kN
noise level: max. 91.1dB
untrimmed book size:
max. 330x330mm; min. 148x105mm
trimmed book size:
max. 300x300mm; min. 142x100mm
trim thickness:
max. 50,8mm; min. 2mm
power: 400V / 50Hz - 3,3 kW
dimensions: 2.260 x 1.160 x 1.600mm
weigth: 1.530kg
