Features of Pull type Spreader with High Clearance Adjustable Axle for Fertilizer or Lime

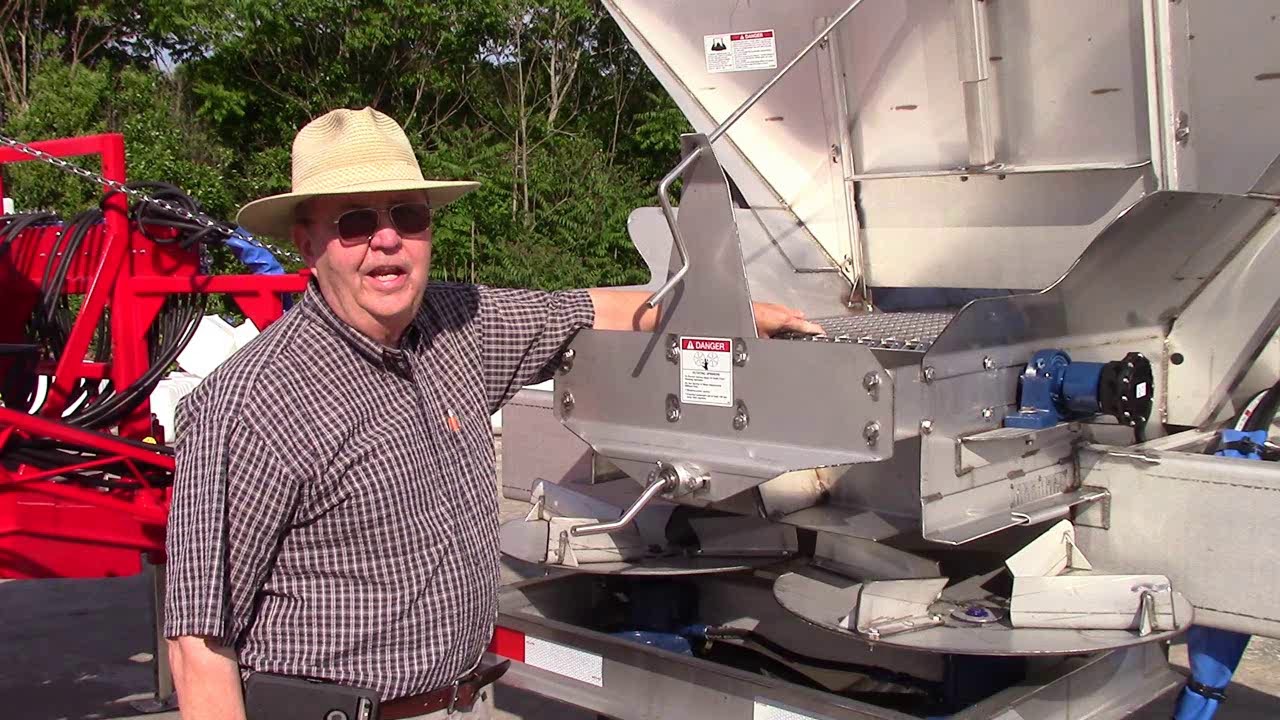

Описание: Michael Carruth discusses the features and options on the High Clearance Adjustable Axle dry fertilizer -lime spreader is the newest addition to the NCI product line. It provides farmers with flexibility to spread on 72, 76, 80, 92 and 120 wheel centers from a single machine. With a bumper height of 42 inches spreading can be done over a standing crop minimizing damage. With a maximum load of 8 tons and an 80 foot swath, this machine sets the standard. It is all hydraulic and VRT and ISO compatible.
This is our category 4 hitch which is a clevis pintle combination.
12,000 pound jack mounted on inside of tongue. It is very heavy duty and can raise and lower the tongue of this spreader buggy.
This spreader is equipped with an ISOBUS kit that allows you to hook it up to your IBBC connection on your tractor. You can control it from the cab of your tractor
NCI adds protection for the field product node to keep it out of the weather and away from product corrosion.
15 gpm PWM valve which speeds up and slows the bed chain via hydraulic control.
Encoder measures the number of revolutions per minute the rear roller is turning and tells the PWM valve to send more or less hydraulic oil to the Rawson Gear Box.
Adjustable Axles allow farmers with flexibility to spread on 72, 76, 80, 92 and 120 wheel centers from a single machine. Adjustment can be made with 4 bolts.
This machine has a 480 tractor tire for greater ground clearance. 10 bolt hub with 12,000 pound rating.
You have extended range swath of 80 feet.
The stainless steel body will outlast the trailer. Bolt on spreader body allows the owner to replace the trailer when necessary by just unbolting the box and moving it to another trailer.
Herculiner between the body and trailer and cuts down on corrosion between the body and trailer
NCI has a stainless steel rail all the way to the back of the trailer so the body is fully supported.
Our stainless steel baffle will last much longer than competitor’s.
For the most life on your spreader components, NCI paints the gear box, PWM valve, and motors
The chute divider allows you to spread on uneven or hilly land by making the fertilizer fall equally into the two spreader dishes.
NCI puts a stainless steel gate jack on our equipment.
The window on the front of the spreader is lexan and lets the operator look into the buggy to judge when to refill product.
The front roller takeup allows you to remove any slack from the Bedchain.
