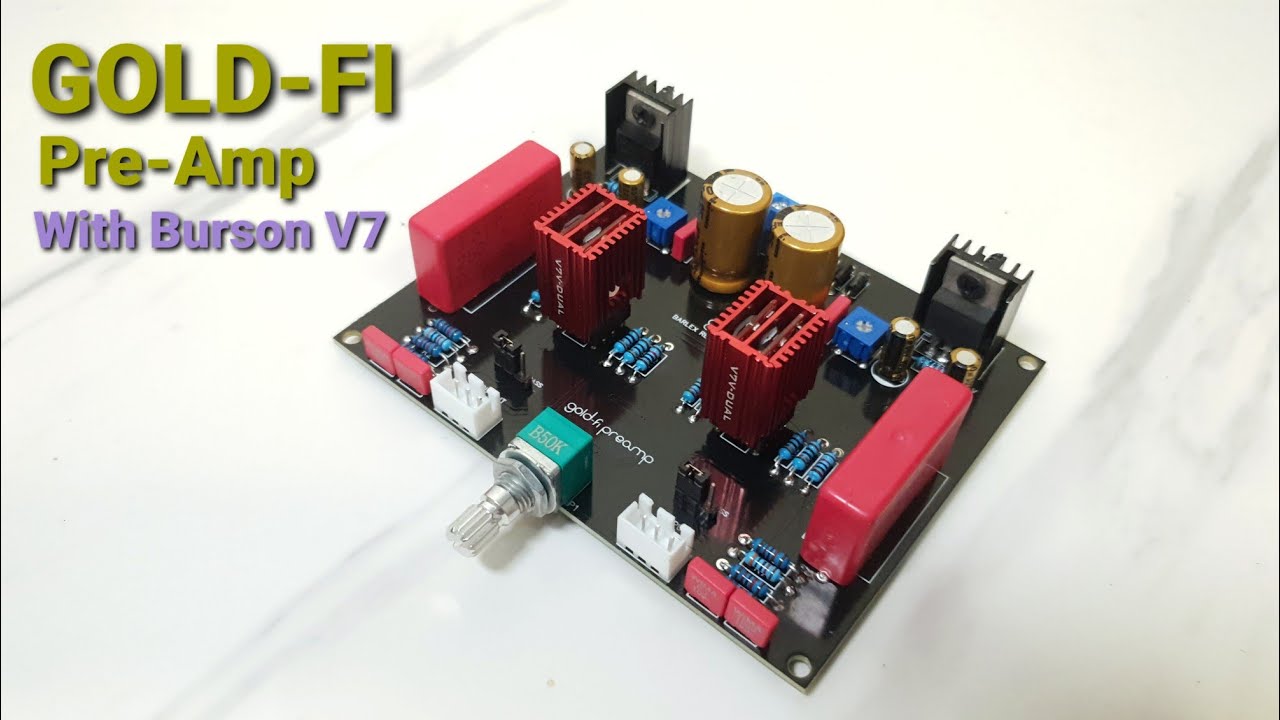

Make DIY Gold-Fi Preamp With Burson V7 IC Op-amp
Автор: Barlex respectaizer
Загружено: 2024-10-15
Просмотров: 3572
Описание:
Cheap & quick PCB, 3D Printing, CNC machining and fabrication services from PCBWay: https://www.pcbway.com/orderonline.aspx
Hi bro, In this project I want to make a pre-amplifer using Burson V7 op-amp.
I named this preamp as GOLD-FI preamp, because the input circuit using an R-C filter that the same used in my previous GOLD-FI amplifer.
But if you don't need the R-C input filter you can bypass it on the jumper mark.
This circuit use a dual op-amp chip for one channel, it works on parallel mode. So it need two op-amps for stereo.
You need a Symmetrical Voltage source from 12V-0-12V up to 18V-0-18V transformer for this Pre-amp.
Please check the video on Barlex Respectaizer Youtube Channel
Download gerber file :
https://drive.google.com/file/d/1Cxsl...
Download Partlist : https://docs.google.com/spreadsheets/...
Tempat saya beli PCB Holder disini : https://tokopedia.link/Uypl44oS6tb
Solder yang saya pakai : https://tokopedia.link/2lHlvcMS6tb
Beli pcb langsung dari kami :
Tokopedia Barlex Audio
Email for endorsement :
[email protected]
