13839 NEW Roundo R5S Angle Bending Roll Under Power

Описание: https://nsmachine.com/roll-angle-bend...

We are pleased to offer for your consideration:
(1) 5" x 5" x 1/2" Roundo Hydraulic Angle Bending Roll


Stock Number: 13839
Price On Request

Manufacturer: Roundo
Model Number: AR5S


Diameter of standard rolls: 15.2"
Angles, leg out: 5" x 5" x 1/2" - 50" dia.
Angles, leg in: 4" x 4" x 1/2" - 50" dia.
Tees, leg out: WT 5 to 45" dia.
Tees, leg in: WT 5 to 60" dia.
Tees, on edge: WT 5 to 40" dia.
Flats, on edge: 6" x 5/8" to 45" dia.
Flats, on flat: 8" x 2" to 40" dia.
Squares: 2-3/4" to 32" dia.
Rounds: 3-1/2" to 40" dia.
Round pipe: 5 Sch 40 to 70" dia.
Square tube: 4" x 1/4"
Channels, leg out: C8 x 22.8 to 30" dia.
Channels, leg in: C8 x 22.8 to 35" dia.
Channels, on edge: C5 x 9 to 300" dia.
Diameter of front shaft: 5.5"
Diameter of rear shafts: 4.75"
Motor: 17.5 HP
Approximate weight: 10,200 lbs.

Features:

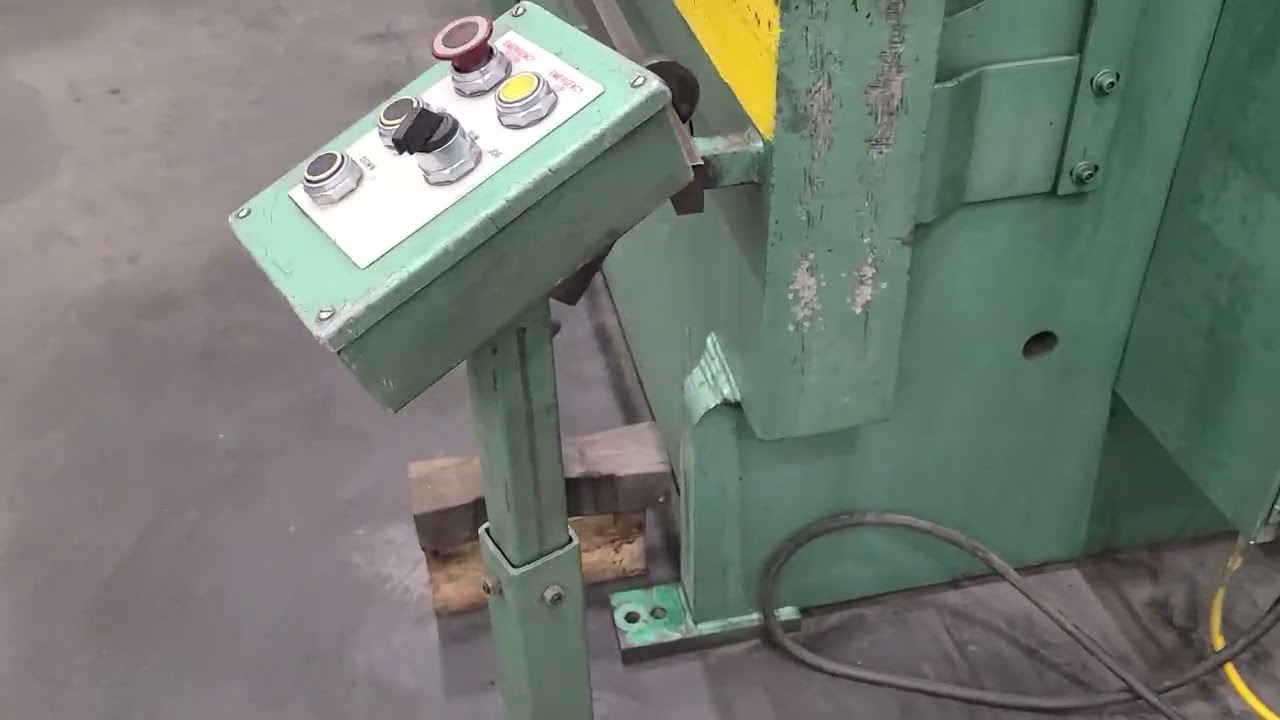

Pendant control
(1) set of tooling


This machine was manufactured for Roundo to Model R-5 specifications. Roundo did not take delivery of these rolls and they have not been put into service.
