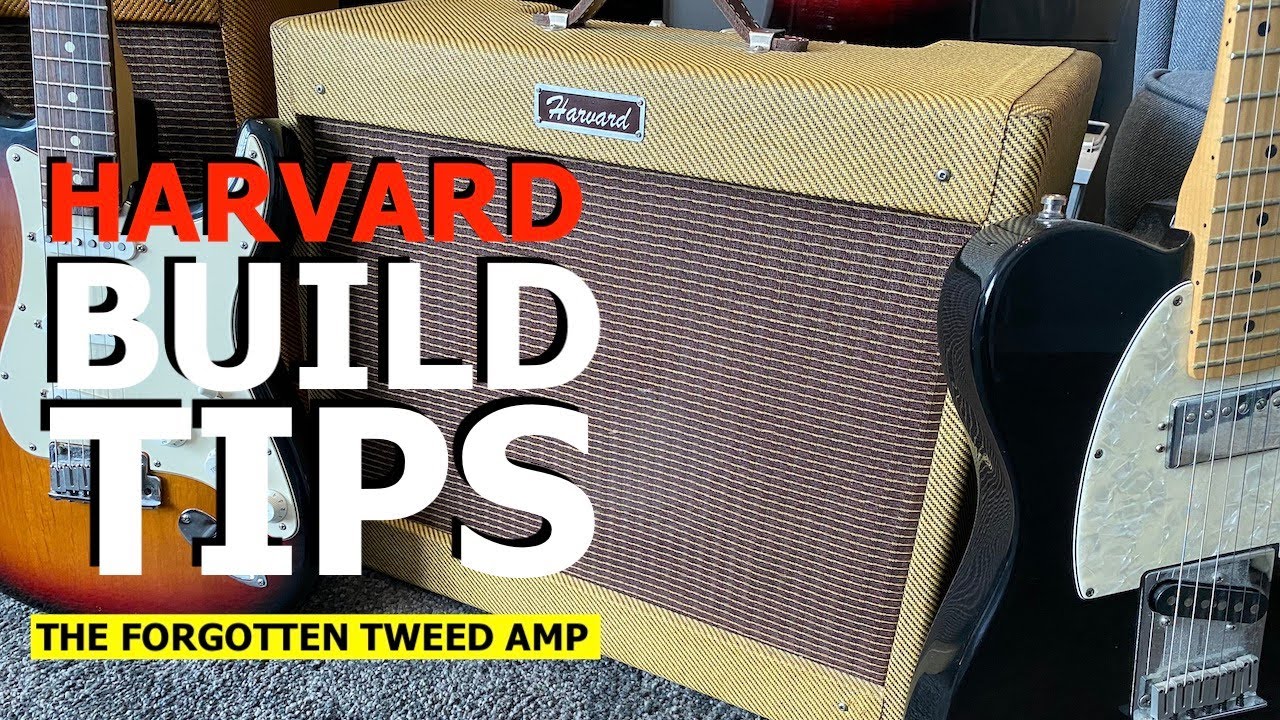

Making a Tweed HARVARD Guitar Amp / My build TIPS & SUGGESTIONS on how to make this amp from scratch

Описание: You want to make a Fender Tweed Harvard Guitar amp but not sure where to start or what components to use? This videos explains how I made my Tweed Harvard (5F10) Clone. There isn't a lot of information on how to build this type of amp which leaves people questioning what to do.
I'm not claiming that this build is a faithful reaction of a Harvard but it is pretty close for my liking!

This amp was originally made by Fender in the 50's and uses 2-6V6 power tubes, 6AT6 Preamp tube, a 12AX7 and a 5Y3 Rectifier tube.
This is a "Fixed Bias" amp and has Negative feedback which makes it have a unique charter when cranked. [FYI: Tweed Deluxe's (5E3) are "Cathode Biased" and have no negative feedback]

Layout I used: https://drive.google.com/file/d/11ge7...

Voltages I got: https://drive.google.com/file/d/1oXQq...

Hakko Solder Station: https://amzn.to/3PvQaD7
Kester Solder: https://amzn.to/3aJKNBI

Components:

Chassis: Mojo Tweed Princeton (Needs to be modified)
Speaker: 10" Alnico (Fender Replacement or Weber: 10A100T, 10A125P)
Power Transformer: Mojo 760 - 330-0-330. (The lower voltage PT is recommended with this amp)
Output Transformer: Mojo 768 - 8K to 4, 8 & 16ohm Taps (single 8 ohm tap is okay)
Tweed and Handle - MojoTone
Amp Badge: http://www.flyballequip.com/other-pro...

WARNING: Tube amplifiers contain very high and potentially lethal voltages!
Drain all filter caps and check voltages before commencing work.

Fender Field Amp Guide: http://www.thevintagesound.com/ffg/

BIAS Calculators: https://robrobinette.com/Tube_Bias_Ca...
https://tedweber.com/bias-calc/

Forum discussion on Fixed Bias and Cathode Bias amps: https://el34world.com/Forum/index.php...
