Nissan – Intelligent Around View Monitor (I-AVM)

Описание: This video is copyrighted material of Nissan North America, Inc. and should not be copied, edited, or reproduced without the permission of Nissan.

For information please visit https://Canada.NissanConnect.com. You will find quick reference guides and other useful information about your warranty, Bluetooth® system, and much more!

The Intelligent Around View Monitor is a parking aid that provides views of your vehicle’s position in relation to surrounding objects. There are cameras located in the center of the front grille, on the outside mirrors and above the rear license plate.

The Intelligent Around View Monitor displays a combination of views with the ignition switch in the ON position.
● Bird’s-eye View shows a top view around your vehicle.
● Front-side View shows the area around and ahead of the passenger’s side front wheel.
● Front-View shows the area directly in front of your vehicle.
● Rear View shows a picture of the area directly behind your rear bumper.
● Rear-Wide View shows approximately 180–degree view of the rear of the vehicle.

Press the CAMERA button repeatedly to cycle through the available view combinations or to return to the screen which was displayed before the CAMERA button was pressed. The available views vary based on the position of the shift lever. Certain view combinations are displayed in a split-screen format.

The camera display will not be shown when the vehicle’s speed is above approximately 6 miles-per-hour.

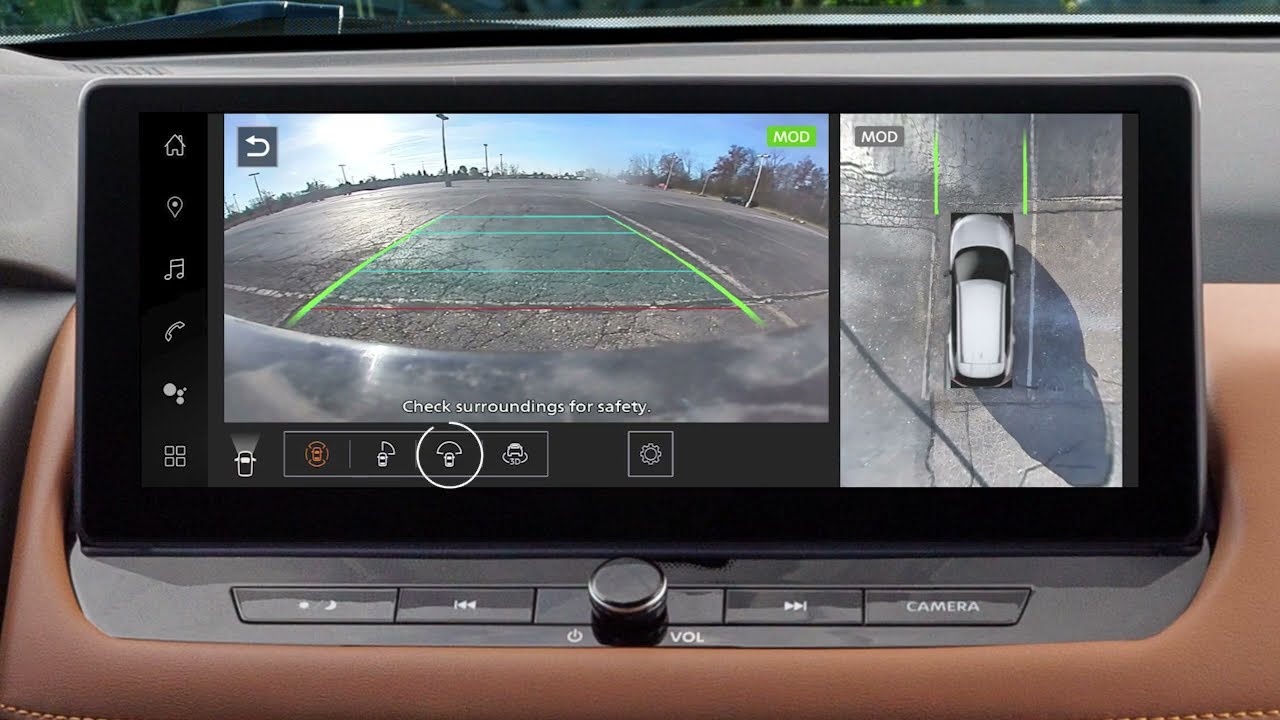

The front and rear views display the approximate distance between an object and your vehicle with colored lines.
● The RED line designates an object is approximately 1.5 feet away.
● The YELLOW line designates an object is approximately 3 feet away.
● The first GREEN line designates an object is approximately 7 feet away.
● The second GREEN line designates an object is approximately 10 feet away.

When the steering wheel is turned, predicted course lines are also displayed on the screen. These lines show the approximate path the vehicle will take. The predicted course lines move in conjunction with how far the steering wheel is turned.

The Moving Object Detection (MOD) system can help inform the driver of moving objects surrounding the vehicle when driving out of parking structures, garages, or maneuvering in parking lots. The MOD system will turn on automatically when the shift lever is in Reverse and the vehicle speed is below approximately six miles per hour or when the CAMERA button is pressed.

A blue MOD icon is displayed on the screen when the MOD system is operative and a gray MOD icon is displayed when the MOD system is not operative.

When the shift lever is in the DRIVE position and the vehicle speed is below approximately 6 miles per hour, the MOD system detects moving objects in the Front-View. The MOD system detects objects in the Bird’s-eye-View when the vehicle is stopped and the shift lever is in Park or Neutral.

If the MOD system detects a moving object near the vehicle, a yellow frame is displayed on the display screen and a chime sounds, intermittently.

The yellow frame remains on the screen as long as the MOD system continues to detect moving objects.
To turn the MOD system on or off:
● Press the right or left arrow button until “Settings” displays.
● Press the up or down arrow button to select “Driver Assistance”
● Press the OK button
● Select “Parking Aids”
● Press the Okay button to toggle “Moving Object” ON or OFF

Please see your Owner’s Manual for important safety information, system limitations, and additional operating and feature information.
