3” Giddings & Lewis Table Type Horizontal Boring Mill, Model 300T, SN FASCT-1109 / A VERY RARE FIND!

Описание: MACHINERY CONSULTANTS INC
BILL WILSON JR. TECHNICAL SALES MGR.
1390 W. 200 S. Salt Lake City, UT 84104
Ph: 801-531-9500 Fx: 801-531-9555
Em: [email protected]
www.machineryconsultants.com

Pre-Owned 3” Giddings & Lewis Table Type Horizontal Boring Mill,
Model 300T, SN FASCT-1109

General specifications are approximate and are subject to verification.
Diameter of Spindle: 3”
Spindle Taper: Morse Taper #5 MT
Spindle Travel: 24” to 25”
Spindle Speeds: 36 changes, from 22 to 1600 RPM
Spindle Feeds: 36 changes, from .003 to .125 IPR
Table, Saddle Feeds: 18 changes, from ¼ to 30 IPM

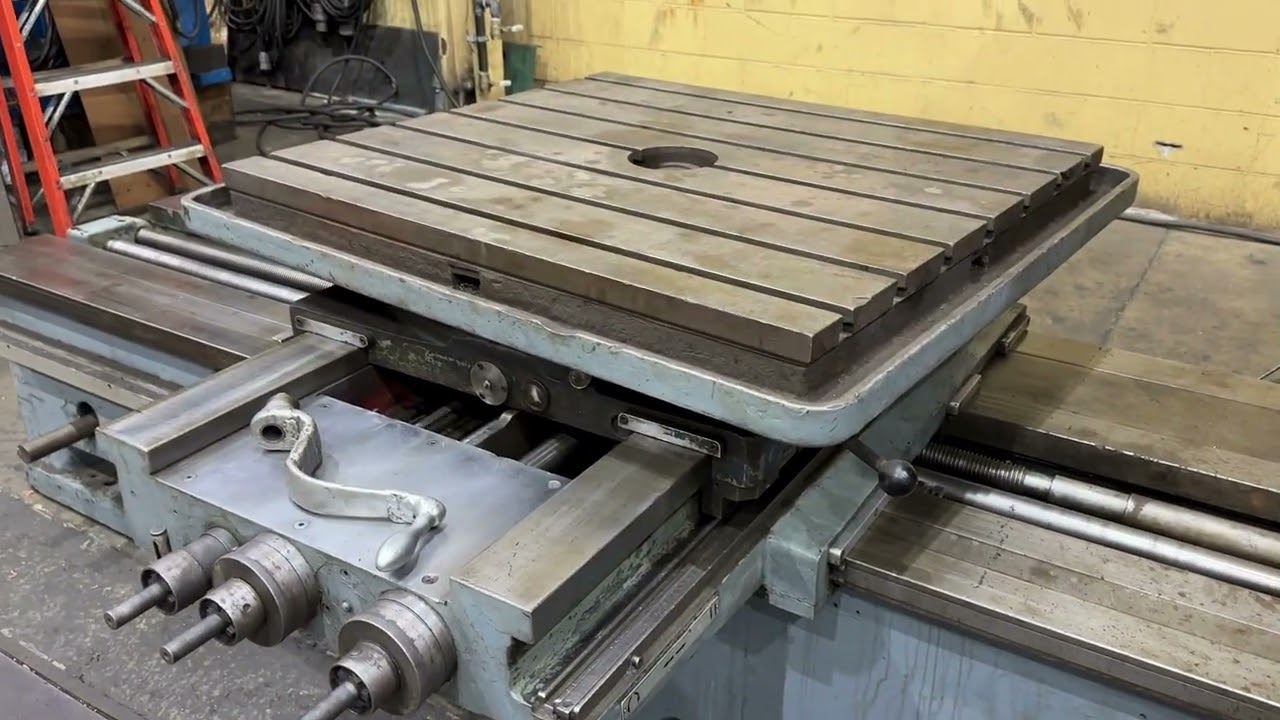

Working Table Surface: 36” x 72”
Table Cross Travel: 67 ½”
Vertical Travel: 48.5”
Saddle Travel: 57 ½”
Main motor: 10 HP / USA Electrics - Very Clean
Electricals: 220/440 Volt ( at 220 Volts Now )
Approx. Weight: 25,000 Lbs.
Approx. Dimensions: 14’ Length x 9’ 4” ( 112” ) wide X 118”H
Height for shipping: ( for a 5” blocks allow 123” Tall) + 5”

Complete with:
• Built in Outer Saddle Supports (Outriggers) * *Very Compact Frame Design HBM
• Power Rapid traverse in All Directions
• Pendant Control *** Note all USA Made electricals in V Nice condition
10 HP / USA Electrics - Very Clean & Sanitary Set up
• Set up to accept Facing Head w/the Facing Head Clamp Plate
• Set up to accept Tailstock, it currently has the Tailstock Drive Shaft
• Tailstock Unit available:
• Facing Head w/the Facing Head Clamp Plate is available:
• 22” Diameter G & L Facing Head w/the Facing Head Clamp Plate is available:


Condition: machine is in very good condition, it recently came in from a Light duty R & D Research shop, very well tooled w/OEM G & L Items, as needed, Original Flaking highly visible, Sounds Excellent

Inventory No: 22-1120
