Hybrid Electric Vehicle Modeling and Simulation

Описание: Free MATLAB Trial: https://goo.gl/yXuXnS
Request a Quote: https://goo.gl/wNKDSg
Contact Us: https://goo.gl/RjJAkE

Learn more about MATLAB: https://goo.gl/8QV7ZZ
Learn more about Simulink: https://goo.gl/nqnbLe
-------------------------------------------------------------------------
In this webinar we will demonstrate how to model, simulate, and deploy a hybrid electric vehicle in the MATLAB & Simulink environment. The electrical, mechanical, thermal, and control systems are tested together to detect integration issues and optimize system level performance.

Included in this webinar will be demonstrations and explanations to show you how to:

• Create custom battery models using the Simscape language
• Speed up drive cycle tests and parameter sweeps using parallel computing
• Automatically test and document simulation results using report generation
• Investigate power quality using spectrogram plots
• Run in real time on HIL systems using Simscape local solvers

To develop complex mechatronic systems efficiently, the ability to balance the tradeoff of model fidelity and simulation speed is necessary. System-level variants of the electrical system are used to iterate quickly and make high-level design decisions, while detailed variants are used to perform more in-depth analyses. The ability to generate c code from the model enables engineers to use Model-Based Design for the entire system (plant and controller).

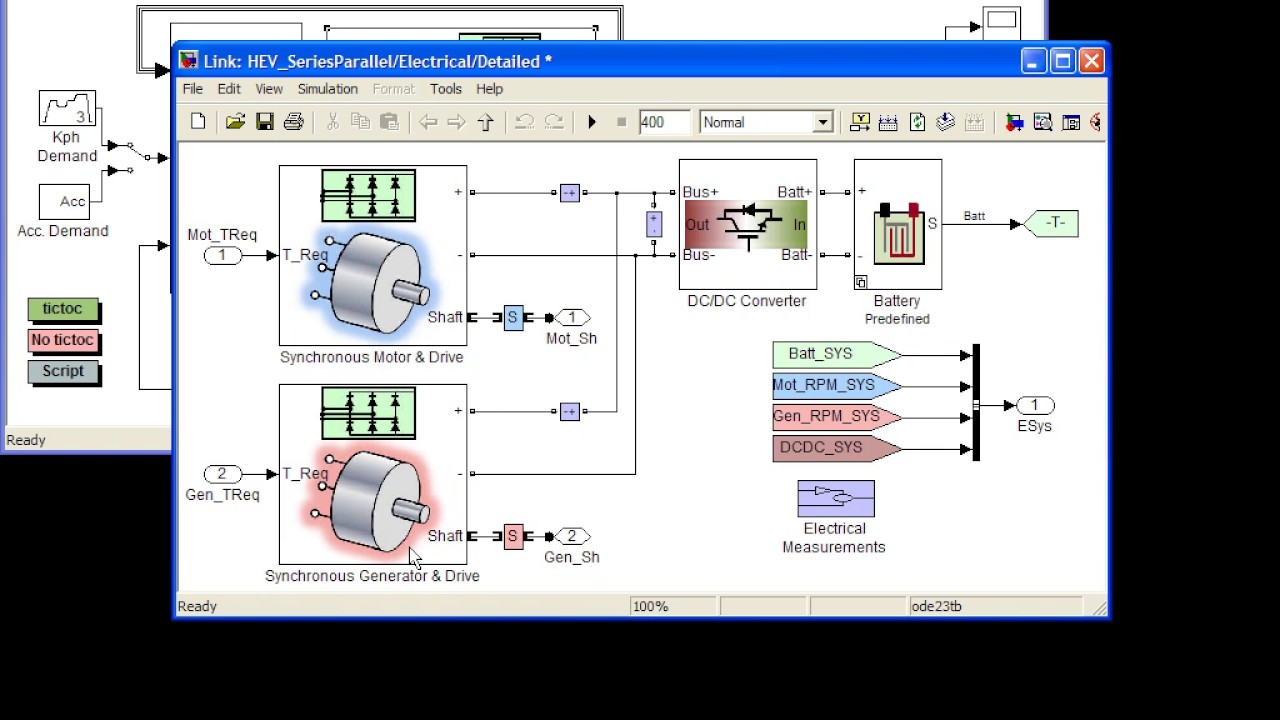

The electrical, mechanical, and thermal systems are modeled using Simscape, SimElectronics, and SimDriveline, and a variant of the electrical power network modeled in SimPowerSystems is incorporated to perform power quality analyses. Simulink and Stateflow are used to model the control system.
