LG G6 Display Assembly Repair Guide - Fixez.com

Описание: LG G6 Screen Replacements and Repair Parts: http://bit.ly/2qwl4nv

LG G6 DIY Repair Tools: http://bit.ly/2lzLIop

Watch the Official LG G6 Display Assembly Repair Guide. Following the step-by-step LG G6 screen replacement instructions we have provided will help you safely fix a cracked or damaged 5.7" QHD G6 display. Visit Fixez.com for all of the DIY LG G6 replacement screens, parts and tools you need to fix your phone quickly, and affordably.

If you need your LG smartphone repaired ASAP instead- we have you covered there too. Contact one of our skilled technicians at 866-233-6460 or [email protected] and they will fix your device for you. They are available Monday - Friday, 9am to 5pm PST.

Subscribe to our YouTube Channel for additional DIY smartphone and tablet teardown and repair videos!    / @fixez
Like us on Facebook:   / fixez.com
Follow us on Twitter:   / fixezdotcom

LG G6 Display Assembly Repair Video Steps:

Step 1

• Power down your LG G6 phone.

Step 2 (LG G6 SIM Card and MicroSD Card Tray)

• Eject the SIM card and microSD card tray.

Step 3 (LG G6 Rear Glass Panel)

• The LG G6 has an IP68 water-resistant rating so the rear glass panel is glued on solidly and is a tight fit within the metal body. Apply heat to soften the adhesive.

• With the precision knife create enough space to insert a playing card.

• Attack the adhesive and carefully dislodge the slightly curved rear glass panel from the chassis.

Step 4 (LG G6 Antenna Assembly, NFC/Wireless Charging Panel, and Loudspeaker)

• Remove the following 11 Phillips screws.

• Pry up the lower antenna assembly that includes the loudspeaker.

• Easily lift out the upper antenna assembly that is combined with the wafer-thin NFC and wireless charging panel.

Step 5 (LG G6 Battery)

• Detach the battery connector from the motherboard.

• Use the exposed plastic pull tab to peel the 3,300 milliampere-hour (mAh), 3.8-volt LG G6 battery off the adhesive securing it to the phone.

Step 6 (LG G6 Motherboard)

• Disconnect the display and USB-C port cables from the bottom of the LG G6 motherboard and then carefully extract it from the phone.

Step 7 (LG G6 USB-C Charging/Syncing Port and Microphone Assembly)

• With the spudger in hand, extract the USB Type-C connector and microphone assembly.

Step 8 (LG G6 Headphone Jack, Earpiece Speaker, and Vibrator)

• The next components to surrender are the modular 3.5mm headphone jack, earpiece speaker, and spring-contact-connected vibrator.

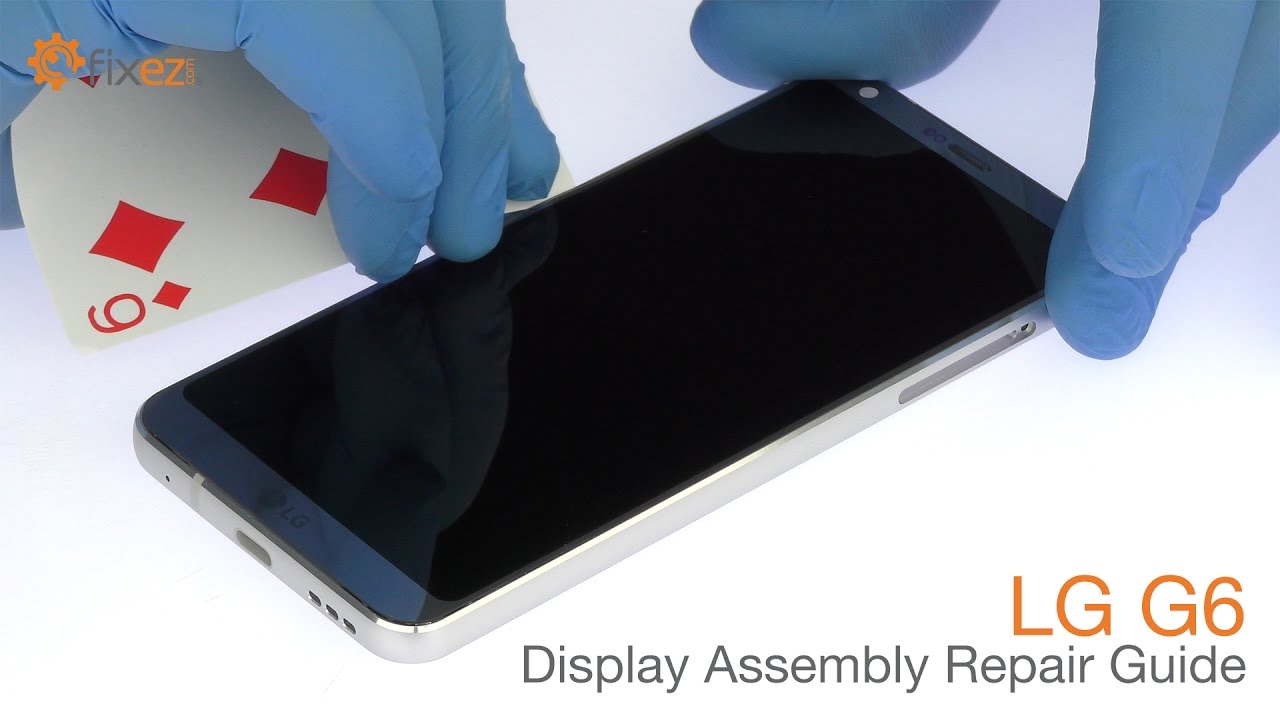

Step 9 (LG G6 Display Assembly)

• Begin to free the 5.7-inch, QHD LG G6 display assembly by using the heat gun to warm up the adhesive.

• With the precision knife create enough space to insert a playing card. Use playing cards to attack the adhesive securing the full-vision display to the midframe.

• Take your time and apply additional heat as needed.

• Once you have sliced through the adhesive, be mindful of the display cable when decoupling the LG G6 screen from the frame.


* To reassemble your device, follow the steps in reverse order.
