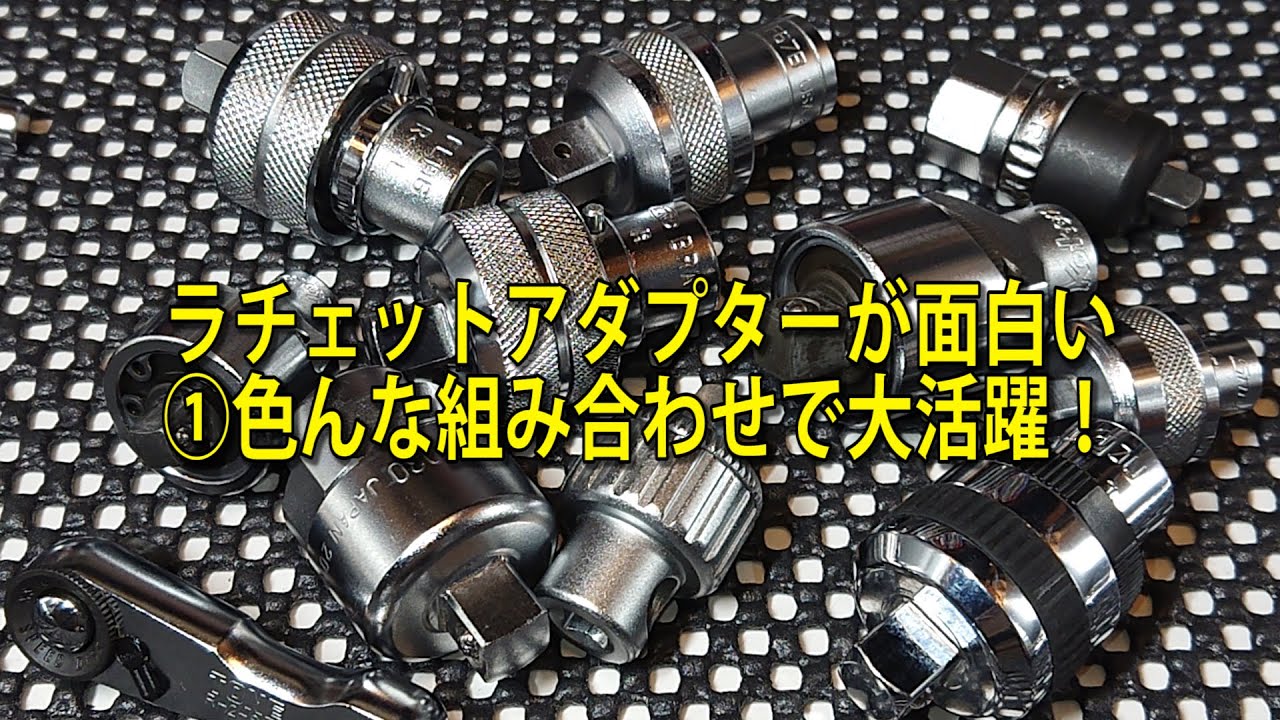

【工具の比較検証】ラチェットアダプターが面白い①色んな組み合わせで大活躍！【工具紹介】

Описание: Interesting ratchet adapter ① Great use in various combinations!

ratchet adapter
To tinker with the bike
It is a tool that comes in many uses.
Good workability
Quick turn is also a good skill.
It can be used by holding it down from above.
Phillips screw
It has increased recently
Good compatibility with Hexagon & Torx
regular ratchet handle
equivalent strength
There are many promising products
Combine various things
Can be used in various situations
There are many situations where it can be used with one hand.
Personally, this is my favorite place.
Reduce the supply of goods
Preventing nuts from falling
It is convenient to be able to rotate while holding something down.

The difficulty is
The joint part
Because it tends to be a lot
Tends to play too much
Requires some vertical space

The goodness of the T handle
The advantages of ratchet handles
have both
I think it's a multi-purpose tool.

Basic form
Slide T handle
+Ratchet adapter
+Extension bar
+Universal joint
In bike maintenance
Works well with T-wrench type tools
Workability is good.
Requires relatively space
Slide T handle + ratchet adapter
+Universal joint combination
Increased angular freedom
You will be able to use it in a comfortable posture.
T-wrenches are quick and convenient, but...
Basically requires both hands
I see some people using one hand to get things done...
It's very difficult to imitate
Slide T handle + ratchet adapter
+Universal joint combination
It also makes it easier to turn the wheel with one hand.
It's a good place

This combination is usually the first
Slide T handle
+Ratchet adapter
+wobble extension bar
somewhat flexible
relatively little play
A perfect combination for various situations
Used with universal joint

The combination that I find most convenient
Slide T handle
+Ratchet adapter
+Long hexagon socket
This is my favorite combination
Hexagons and Torx which have been increasing recently
Often located in deep places or near walls.
In such cases, it is convenient
Long hexagon & torx socket
Compatible with ratchet adapter
Reduced joints as much as possible
simple combination
Good operability
Easy to apply a certain amount of torque
If it was 1/4, it would be about 2mm to 5mm.
If it was 3/8, it would be about 4mm to 8mm.
I am active

A combination with a wide range of applications
Slide T handle
+Ratchet adapter
+Bit adapter (Cyclops adapter)
socket bit for power tools
Very convenient as it can be used
Wera's Cyclops adapter
Whether it is a Japanese specification bit or an overseas specification bit.
With or without grooves
Great product that can be held tightly
It's my favorite

Basic form of 1/4 ratchet adapter
Slide T handle
+Ratchet adapter
deep socket
When using a ratchet adapter with 1/4
This combination
I feel that the workability is good.

1/4 ratchet adapter
There are fewer product choices than 3/8
Hexagonal 1/4 (6.35) bit
ratchet driver and
Use and strength
I guess it's because I wear it.
That's what I think
Is it structurally unavoidable?
There are many products that have a lot of play.
If you are interested in playing
ratchet driver and
We recommend that you compare
Easy-to-use ratchet driver
There are a lot of them on the market

swivel ratchet combination
Breaker bar (spinner handle)
+Ratchet adapter
For taking out or in-vehicle use
It's a decent set

Combination with 1/4 breaker bar
I like it and it's easy to use

Companion of torque adapter
Slide T handle or
Breaker bar (spinner handle)
+Torque adapter & wrench
+Ratchet adapter
ratchet adapter
Torque adapter & wrench
Good compatibility
Stable with both hands
Prevent the LCD screen from rotating
can be combined

Originally the ratchet adapter
Does not have a ratchet structure
For dial and pointer type torque wrenches
I've heard that it was a tool.

T-handle + ratchet adapter
Attach or remove the adapter
I was using it at great speed.
We have a veteran mechanic
There have been times when I thought,

flex driver handle
+Ratchet adapter

You can play with various handles

with quick spinner
palm ratchet style

Infinite ways to use

The ratchet adapter is interesting ②
Their characteristics, personal impressions,
I will introduce something like
I would be happy if you could help me with choosing tools.

Snap-on(スナップオン)
F67B
3/8DR 20ギア ラチェットアダプター
F77A
3/8DR 20ギア ラチェットアダプター

推奨最大トルク108N・m
ヘッド幅22mm
ヘッド厚11mm

Snap-on(スナップオン)
TM67A
1/4DR 20ギア ラチェットアダプター
TM77
1/4DR 20ギア ラチェットアダプター

KTC(京都機械工具)
BRA21
3/8DR 60ギア ラチェットアダプター
送り角度6度
外径31mm
全長51mm
重量140g

ネプロス(nepros)
NBRA3
3/8DR 72ギアラチェットアダプター
送り角度5°
外径29mm
全長49mm
重量130g

トネ(TONE)
RAD309
3/8DR 72ギア ラチェットアダプター
全長(mm): 44.8
外径(mm): 29
質量(g): 120
送り角: 5°

コーケン Ko-ken (山下工業研究所)
3755
3/8DR 45ギア ラチェットアダプター
ヘッドの幅 30.5mm
全長 55mm
重量 146ｇ

コーケン Ko-ken (山下工業研究所)
2755
1/4DR 44ギア ラチェットアダプター
ヘッドの幅 26mm
全長 40mm
重量 80ｇ

WORLD IMPORT TOOLS
WIT 1/4DR 52ギア ラチェットアダプター
高さ40mm
直径25mm

アストロプロダクツ
重量：120g
AP 1/4DR ラチェットアダプター 36ギア
本体サイズ：Φ22×L42mm
重量：67g


ストレート(STRAIGHT)
10-1811
3/8DR 41ギア ラチェットアダプター
直径 32.3mm
全長 51mm
送り角 8.8°
重量 150g
