EEVblog 1663 - BM786 Multimeter REPAIR + InEr Error Investigation

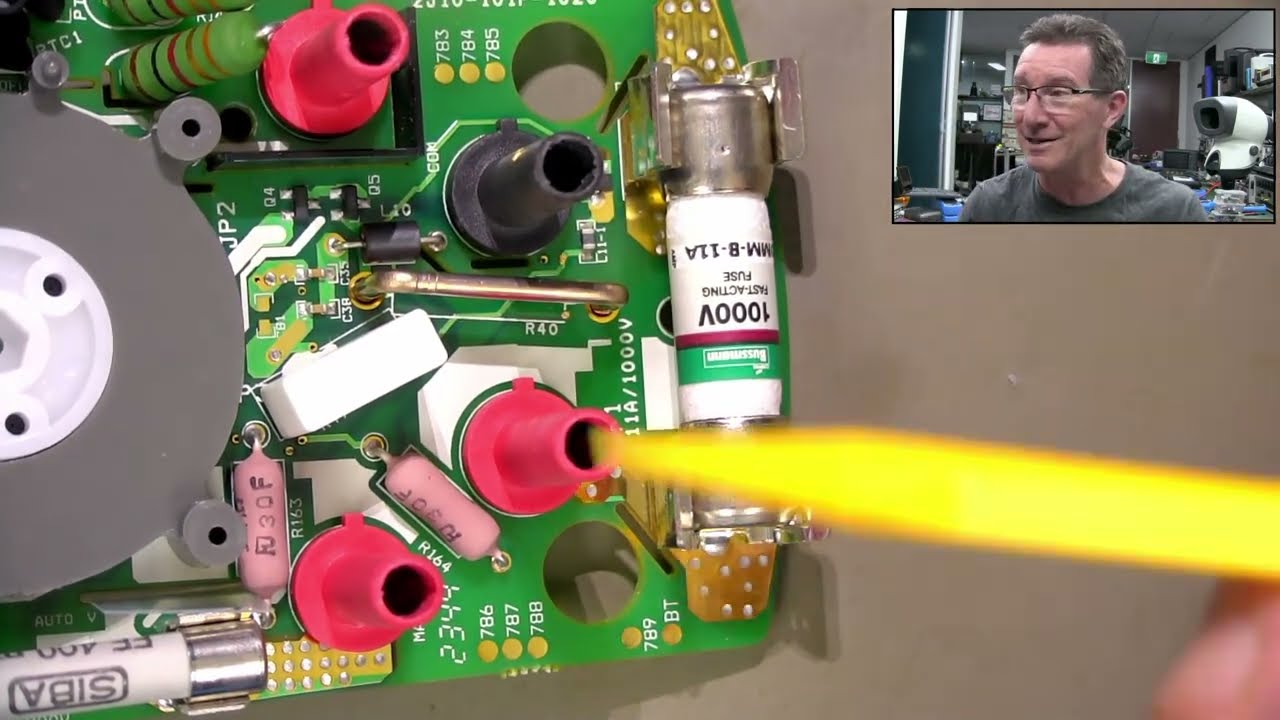

Описание: Repairing a customers Brymen BM786 multimeter, and investigating the cause of the InEr error message on the input jack alert feature.
Plus a giveaway to a local youngster.

Keysight OLED meter repair:    • EEVblog 1564 - Agilent/Keysight U1273AX Mu...

00:00 - A returned BM786 Multimeter with InEr error message
03:23 - Split jacks and input alert circuit
05:19 - In-Circuit probing TIP and Low Ohms mode.
07:19 - A clue?
08:05 - A need a new desoldering gun. Removing the input jacks
10:30 - Bodge testing of the input detection threshold
12:38 - Not one but TWO failed Megger Insulation meters!
13:50 - Megger testing the connectors at 500V
15:19 - Testing a 2nd failed InEr error meter
17:00 - Cleaning the input jacks
19:11 - Heating up the input jacks
20:18 - Getting desperate, removing the input jacks
21:49 - Getting really desparate, removing the input resistors
22:38 - Reassembling the original repaired unit
24:26 - Repaired BM786 GIVEAWAY
