Boeing has patented a fully automated plant to assemble aircraft fuselages

Описание: Please watch: "Disney's Drone Technology | Episode 1 | PatentYogi Research"
   • Видео
~-~~-~~~-~~-~

Boeing has been transforming its manufacturing plants, by automating various tasks to increase output and improve productivity. The firm uses lots of robots for building airplanes.

Recently Boeing was granted a patent for a fully automated plant.

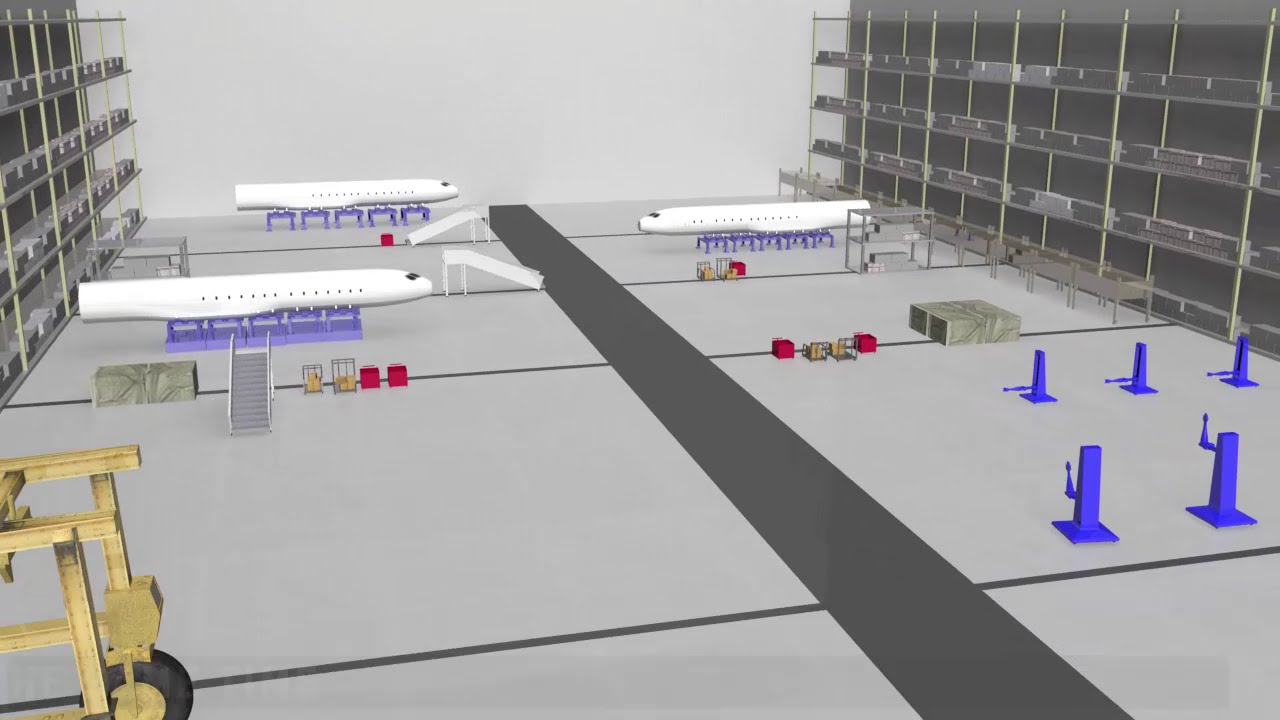

Here is our animation showing how this plant will work. The facility has six assembly cells , a feeder line area , and a robot holding area. Each cell is used to assemble one fuselage. The feeder line area is the area where fuselage materials are received. Idle robots are located in the robot holding area. A first cradle is moved (via an underlying automated guided vehicle (AGV)) into the feeder line area . The first cradle after it has been moved into a first one of the six assembly cells . The assembly cell is selected based on rate and firing order. This selection controls the path and timing of all the movements by the AGVs in order to avoid collisions. Then a fore keel structure is moved into the feeder line area . The fore keel structure and subsequent components may be transferred to the feeder line area in large transportation/shipping fixtures, which may be moved by fork trucks. The gantry is then positioned over the fore keel structure. The gantry raises the fore keel structure and moves that structure over the cradle and lays the fore keel structure onto the cradle. The gantry may have a vision system for locating the initial position of the structure on the cradle. The gantry vision system may also be used for collision avoidance. In the meantime, a mid keel structure is being moved into the feeder line area. The gantry then moves the mid keel structure and lays it over the cradle
An aft keel structure is supplied and positioned on segment of the cradle. Then a floor grid is moved into the feeder line area. The gantry moves the floor grid and positions it onto the mid and aft keel structures. The gantry then moves fore, mid and aft side panels onto the keel structures. The gantry then moves nose, fore, mid and aft crown panels onto the side panels. A set of robots are commanded to move from the robot holding area to the first cell . The robots fasten the panels and keel structures. While the fastening operations are being performed, other fuselages may be assembled. A second cradle is moved to a second assembly cell .

Similarly multiple fuselages may be built at the same time.

When assembly of a fuselage has been completed, the completed fuselage is moved off the floor by the cradle. The completed fuselage may then be moved to a location for cleaning, sealing and painting.

Let us know your thoughts on what do you think about this automation revolution. It seems inevitable, yet it has huge implications for human survival.

Here at PatentYogi research, we also provide patent services. We help startups and individual inventors file patents across the world. For this, we provide a free patentability assessment of your invention. So if you want a patent for your invention, feel free to reach out to us on our website or the email provided here.

If you have received an office action from patent office, we can help you prepare a response to the office action. With our holistic approach and alignment to your strategic business interests, you can be assured of not only getting your parent granted, but also in a form that makes it commercially most valuable and legally strong.

If you have a granted patent and you want to market the patent to a wide audience, we can help you by preparing an animation to explain your patent. We also assist inventors in monetizing their patents.

Other services are listed on our website. So feel free to reach out to us. We will be glad to help you.

Patent Information
Patent Number: US 9,205,933
Patent Title: Automated assembly of panelized aircraft fuselages
Inventors: Oberoi; Harinder S. (Snohomish, WA), Nelson; Blair P. (Seattle, WA), Draper; Alan S. (Everett, WA), Hu; Charles Y. (Newcastle, WA), Matthewson; Randall (Stanwood, WA), Sarh; Branko (Huntington Beach, CA)
Assignee: The Boeing Company (Chicago, IL)
Family ID: 47227577
Appl. No.: 14/794,925
Filed: July 9, 2015
Abstract: A facility for assembling aircraft fuselages comprises a plurality of movable cradles. Each cradle is configured to support a fuselage keel structure and assemble a panelized fuselage from the keel structure to obtain a full fuselage contour in a single upright build position.
