Meccanotecnica Uniplex + Aster Pro (2016) (20x Stationen) (2019) - @AllaouiGraphicMachinery
www.allaoui.de
Description
Uniplex is the quickest gathering and sewing line on the market, ideally suited for any book production.
Equipment
Gathering Machine
Type: MX4
Gathering stations: 20x
Touch Screen 17"
2:1 Operation at Gatherer
Rotating Tongs with electrical sheet thickness control to discover missing or double sheets
ByPass for delivery of gathered signatures

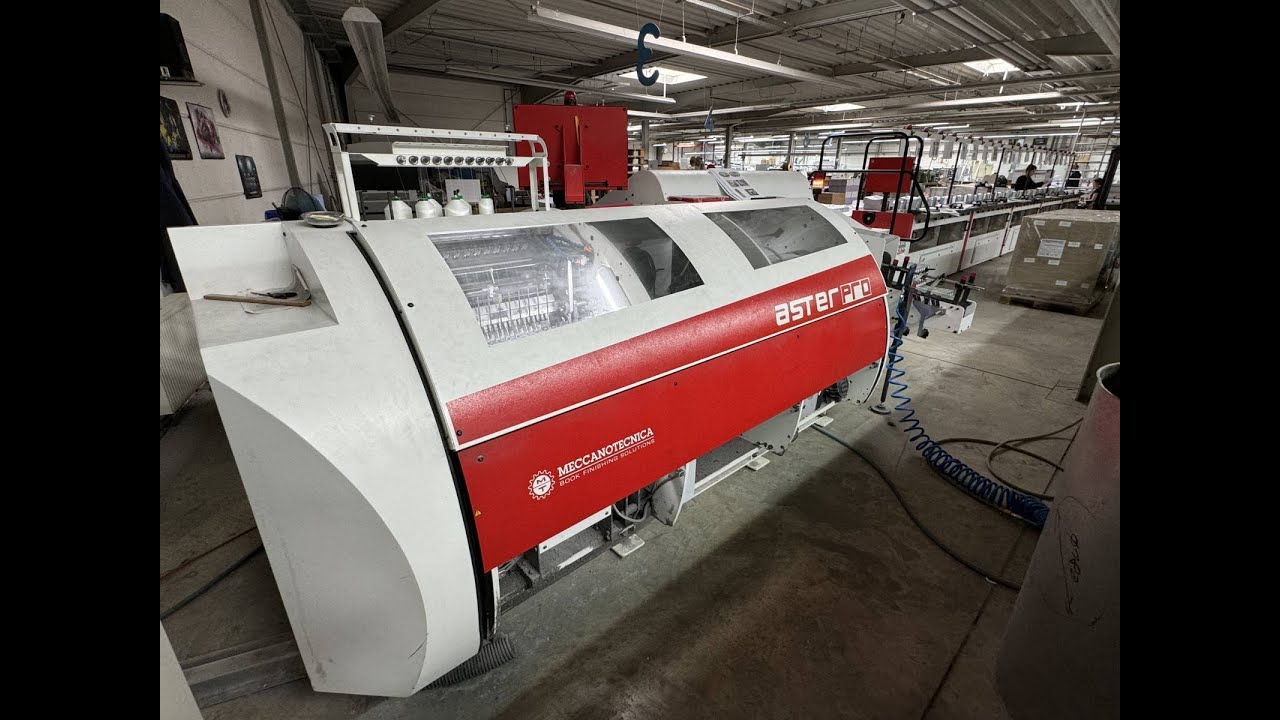

Sewing Machine
Type: AsterPro
4 + 4 opening possibilities
Vacuum pumps
Dual Giga Lynx / Barcode
Active Thread Seperation
Patented Automatic Block Separation
Central lubrication system
Automatic Presetting
Cam driven
Delivery: Universe Stacker
Technical Details
Gathering Stations
Size min: 100 x 150 mm
Size max: 320 x 420 mm
Mechanical speed max: 60 cycles/min
Weight: 4,100kg
Automatic Loading System
Size min: 100 x 150 x 3 mm
Size max: 320 x 420 x 90 mm
Sewing machines
Size min: 75 x 120 mm
Size max: 320 x 440 mm
Mechanical speed max: 200 cycles/min
Stitching length: 19 mm
Number of stitches: 10
Number of holes: 4 up, 4 down + upfolding
Weight: 3,580 kg
Condition Details
All functions of the machine checked and tested
Scope of delivery according to standard equipment fully complete
During machine testing at no-load the maximal mechanical speed was reached
General
Loading meter: 20
Weight (kg): 10
Container: 2
