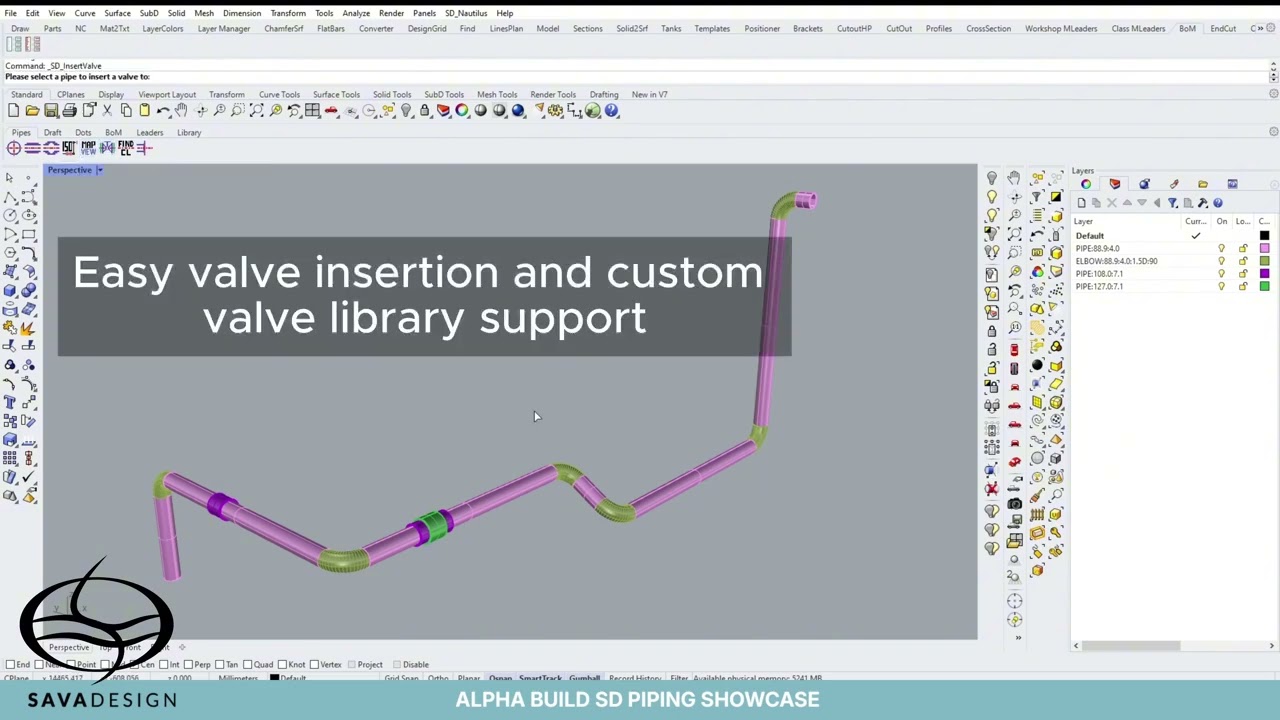

SD Piping - Pipe System Processing - Progress update

Описание: SD NAUTILUS® is a unique, simple, and low-cost platform primarily designed for the shipbuilding industry, but it can be used in other areas of the mechanical industry as well. It was developed as a supplement to the Rhinoceros v5 basic package especially valuable to naval architects, design offices and shipyards with the following features:

SD NAUTILUS offers a wide pallet of additional tools for fast 3D modeling typical for shipbuilding
Automatic positioning of structural elements with naming in a shipbuilding manner
Automatic specs/part lists creation with weight and COG info
Quick semi-automatic cross-section extraction, preparation for 2D drawing, and export to any Cad software package
Quick extraction of structural elements for CNC cutting preparation
Automatic profile extraction and preparation for 2D profile sketches
Quickly and simple shell expansion
Bending templates production

Main benefits of SD NAUTILUS®:
Low-cost & simple application
Inexpensive equipment (unlike competition software solutions, Rhinoceros is not high demanding for hardware requirements)
Low-cost & easy personnel training
Possibility of simultaneous work at multiple locations in the world. No participants number limitation at any level of project development*
Compatibility with all other similar software packages (AutoCAD, SolidWorks, SC, or similar)
Adaptability to the client’s demands and practice.

Disadvantages:
Working with no database requires some manual operation, especially during alterations,
Parametric connection is for now rationed due to the prospects of the Rhinoceros basic package.

SD NAUTILUS® is an excellent substitution for expensive software packages intended primarily for smaller design offices, shipyards, and workshops with a capacity of up to 10,000 t/year.
Compliance with the customer needs and the total cost of the application make SD NAUTILUS® outstandingly attractive.
