How to connect OPPAIR screw air compressor to air dryer/air tank/pipeline/precision filter?

Описание: How to connect screw air compressor to air dryer/air tank/pipeline/precision filter? How to connect screw air compressor to air tank? How to connect a screw air compressor? What should be paid attention to when installing air compressor? What are the details of installing air compressor?

Note:
1. All joints must be wrapped with raw tape to avoid air leakage
2. All joints must be tightened.
3. The default pipe provided by OPPAIR is 1.5m long, and the length can be changed according to customer requirements.
4. The following accessories need to be purchased separately. Please consult the sales staff for details.
1. The following things need to be prepared in advance (purchased separately or prepared by yourself):
precision filter, pipes, joints, tools (raw tape, wrench, etc.), wires.
2. Pre-install the accessories of the gas tank (pressure gauge/safety valve/drain valve)
3. Connect the pipe + joint from the air compressor outlet to the gas tank. Note: All joints must be wrapped with raw tape and sealed tightly to avoid air leakage.
4. Install the accessories on the gas tank, including the pressure gauge, safety valve and drain valve. After wrapping the raw tape, install them on the gas tank in sequence.
The drain valve needs to be connected to an automatic drain valve (this needs to be purchased separately) or you can also drain manually regularly by opening the drain valve at the bottom.
5. Connect the Q-level precision filter at the air outlet of the gas tank.
Pay attention to the direction of the arrow and do not install it in reverse.
Install the automatic drain valve
6. Connect the pipe + connector from the Q-level precision filter to the cold dryer.
7. Connect the precision filter (P-level + S-level) and the automatic drain valve at the air outlet of the cold dryer
Pay attention to the direction of the arrow and do not install it in reverse. Install the P-level first, then the S-level
8. Connect the final outlet pipeline and connect the pipeline to the final gas-using machine.

Precautions before use

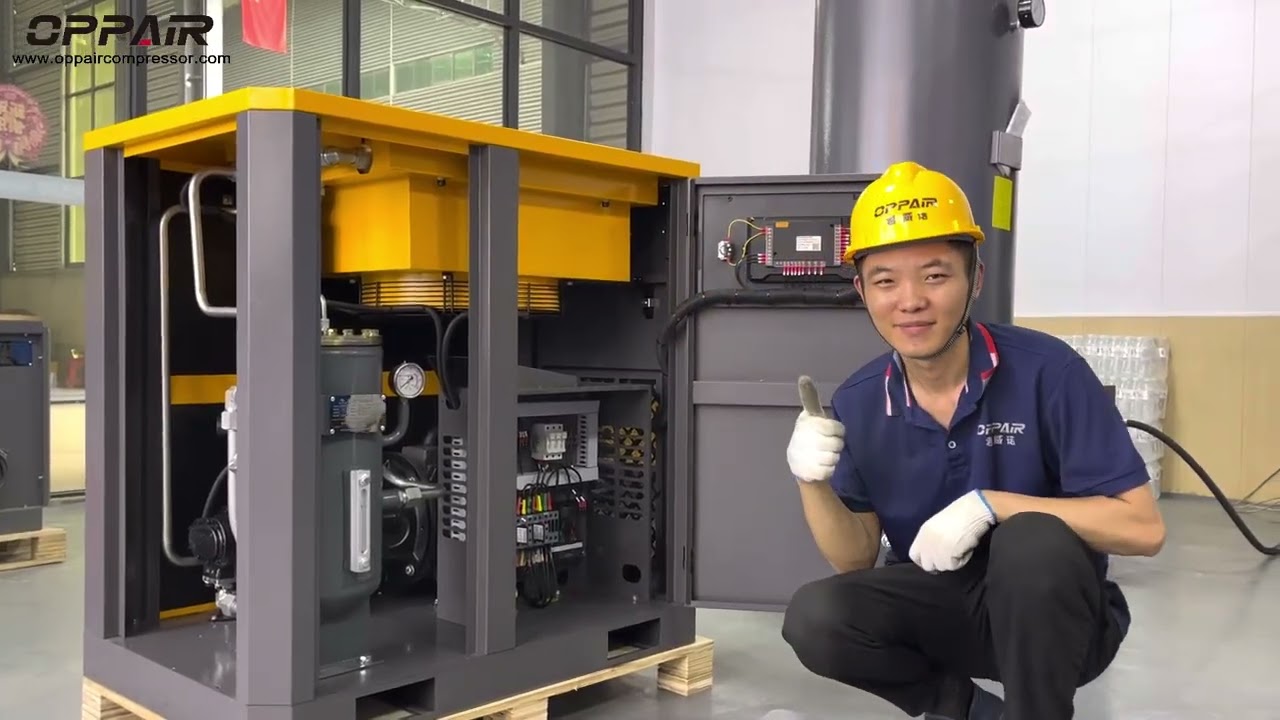

1. Open the door panel to check whether there is any foreign matter inside the air compressor? Is there a filter element placed inside when it is shipped?
2. Open the door panel of the electric panel and check whether the internal wires/electrical appliances are loose?
3. Check whether the oil level of the oil level mirror of the oil and gas barrel is normal? (When not running, the oil level must be between the lowest and highest lines)
4. Check the nameplate of the air compressor to see if the air compressor voltage is consistent with the on-site voltage?
5. After there are no problems with the above, connect the power supply. (Be sure to connect tightly to avoid loose connection of wires)
6. There is a power cord on the back of the dryer. Connect the dryer power supply. Small models are generally single-phase electricity.
7. Release the emergency stop (the emergency stop of the new air compressor is locked).
During operation, the emergency stop button cannot be pressed at will, and can only be used for emergency shutdown.
8. Turn on the machine. Press the dryer power button. Start the air compressor 3-5 minutes after the dryer is turned on.
Start the air compressor: Press the controller: Start keyboard for 3 seconds. Start. If the screen cannot start normally, it will display: Phase sequence error. Turn off the main power, swap the positions of any two live wires at the air compressor power supply, and restart it to run normally.
9. Open the valve of the air compressor outlet
10. During operation, you need to check: Is there any air leakage inside the air compressor? Is the oil level of the oil sight glass reasonable? Is there any air leakage in the connected pipeline?
11. Open the valves of the precision filter and gas tank.
12. If there is a warning on the screen or you encounter other problems, please contact us immediately and do not adjust the controller parameters at will. If maintenance is needed, we have professional maintenance videos, please contact us.
