PM30 Upgrades: Chapter 1 - VFD Setup and Motor Test
Автор: MP Machining
Загружено: 2020-08-04
Просмотров: 1683
Описание:

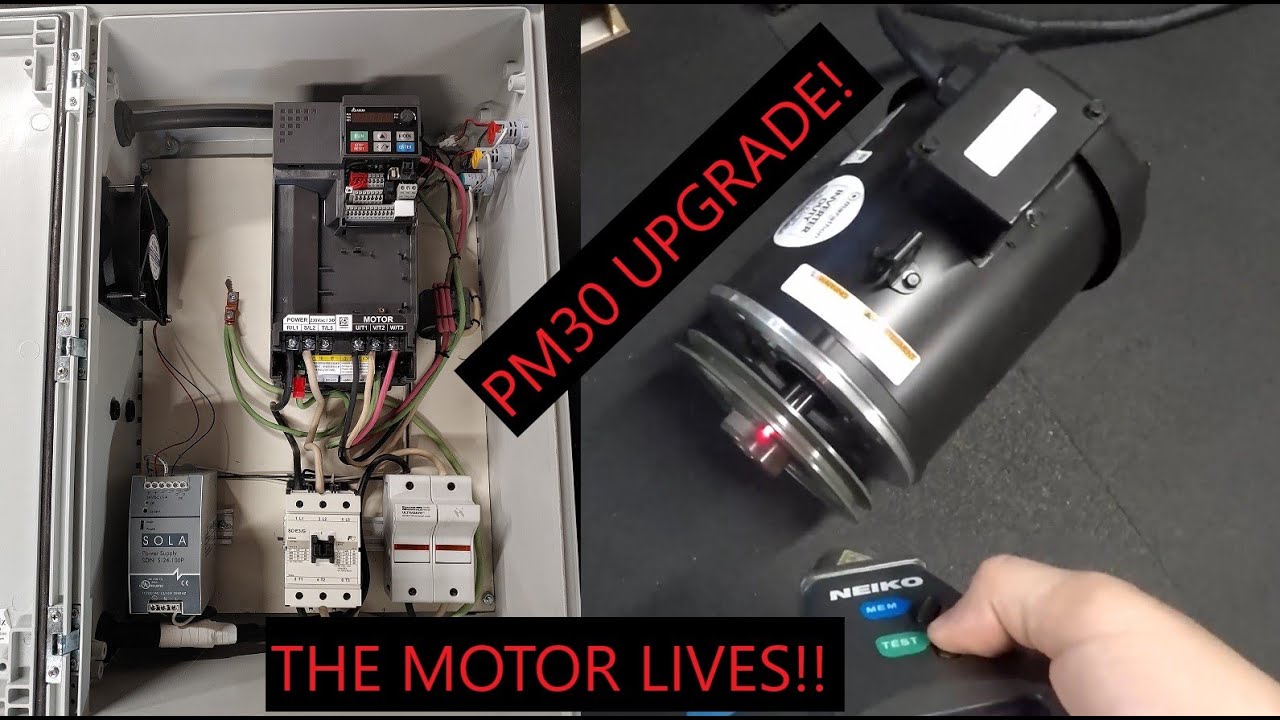

Building up an enclosure for the VFD and first run in of the 3 phase Marathon motor!!
VFD - Delta Industrial VFD33AMS23ANSAA
https://www.wolfautomation.com/ac-dri...
Motor - Marathon Micromax Y1372 5HP motor
Ammeters - Amazon purchase
https://www.amazon.com/dp/B07C143SMR/...
24V Power Supply - eBay find (Sola Hevi-Duty 5-24-100P)
Electromagnetic Contactor - used eBay item (FUJI SC-E3/G)
Ferrites - I have a ton extra of these if anyone needs (Magnetic Core Corp 200 125 2A Ferrite Toroid Core)
Case Fan - ebay purchase (Jamicon Corporation JF1238B2MR-R Fan 24VDC 101.3 CFM 120X120X38 Ball Bearings 9)
Enclosure - eBay again (Altelix 24x16x9 Nema 3x weather proof box)
Fuse Blocks - Used on eBay (Ferraz Shawmut US6J2I Ultrasafe Fuse Holder 2 Pole 600V 60A Din Rail Mount)
