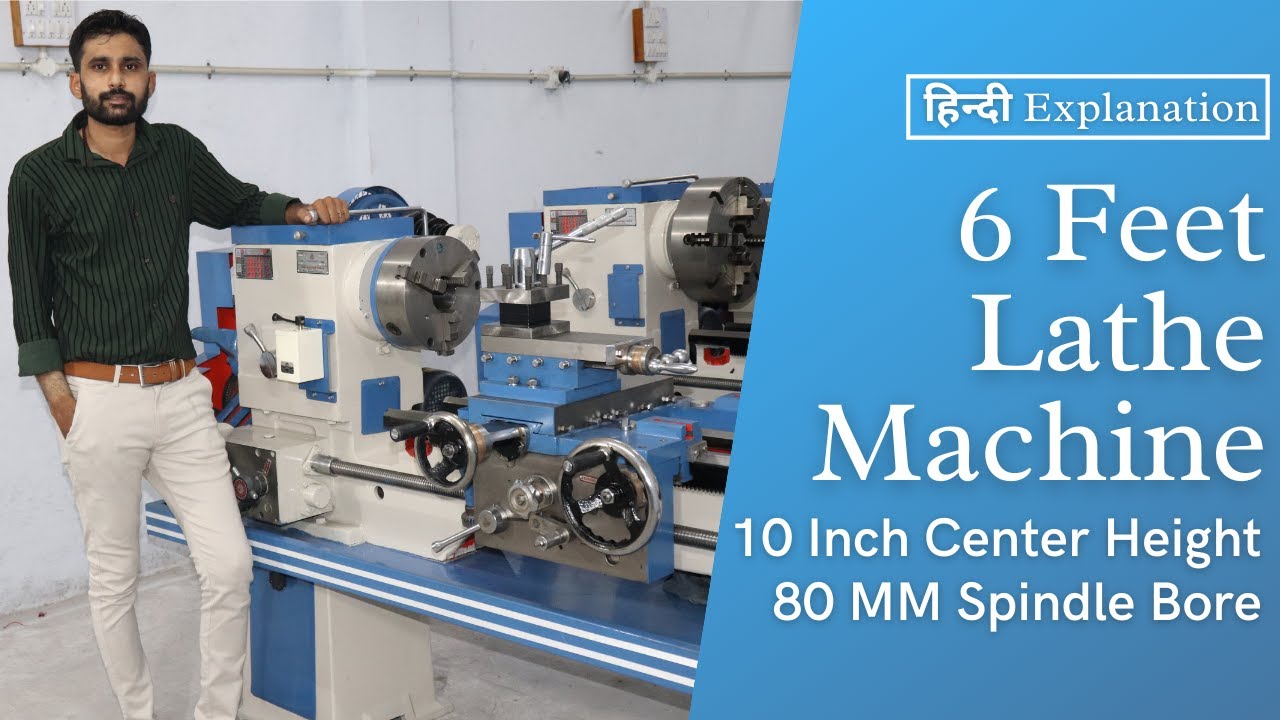

6 Feet Medium duty lathe machine | 4.06 ft Medium Duty Lathe Machine| Lathemachinemanufacturer

Описание: For Machine Inquiry:
Call Us: +91 9998085544
Message :https://wa.me/message/L6RUCUPME4EMN1
Mail Us: [email protected]
Please Visit our Website: http://www.gmtrajkotlathe.com/

Specification INCH
Bed width 11”
Height of center over flat bed ways 9”
Maximum swing over bed 17”
Maximum swing over cross slide 11”
Maximum swing in gap 26”
Admit between centre 36”
Spindle nose 6 Tpi
Number of spindle speed 6 Range
Diameter of hole through spindle 2. 1/16”
Inch range threads 4 to 60 TPI
Metric range threads 0.5 to 7.5mm
Lead screw Dia & pitch 1.1/4”
Tail stock spindle dia. 1.3/4
Tail stock spindle taper bore MT-4
Tail stock spindle travel 5.1“
Power required 2.H.P 1440 RPM
Approx weight 750 KGS

Salient Features:-
Induction Hardened Bed Guideways above 400 BHN
Low Maintenance Design
Double V belt Design For More Torque
Ergonomic Tail Stock Design
Highly balanced rotating Parts For precision Work
Center Height 9″ , more compared to other option available in market
10″ center height and 75 mm Bore option also available

Applications:-

Medium Duty Cone Pulley is widely used in every Companies, These is widely used for general maintenance and repair Work.
Our Medium Duty Cone Pulley Lathe Machines are extensively used in various fields like automobiles/ Rubber Roller / Sugar mill / Paper mill / heavy engineering and over & above all general engineering maintenance workshops.
Compare to light Duty Lathe These machine is more Rigid and More Heavy Resulting into Easy Heavy Application.
This machine is more Firm and Balanced Compared to light Duty and Due to more enter height you use it easily for making Dies.
