UNI-T UT132 multimeter teardown

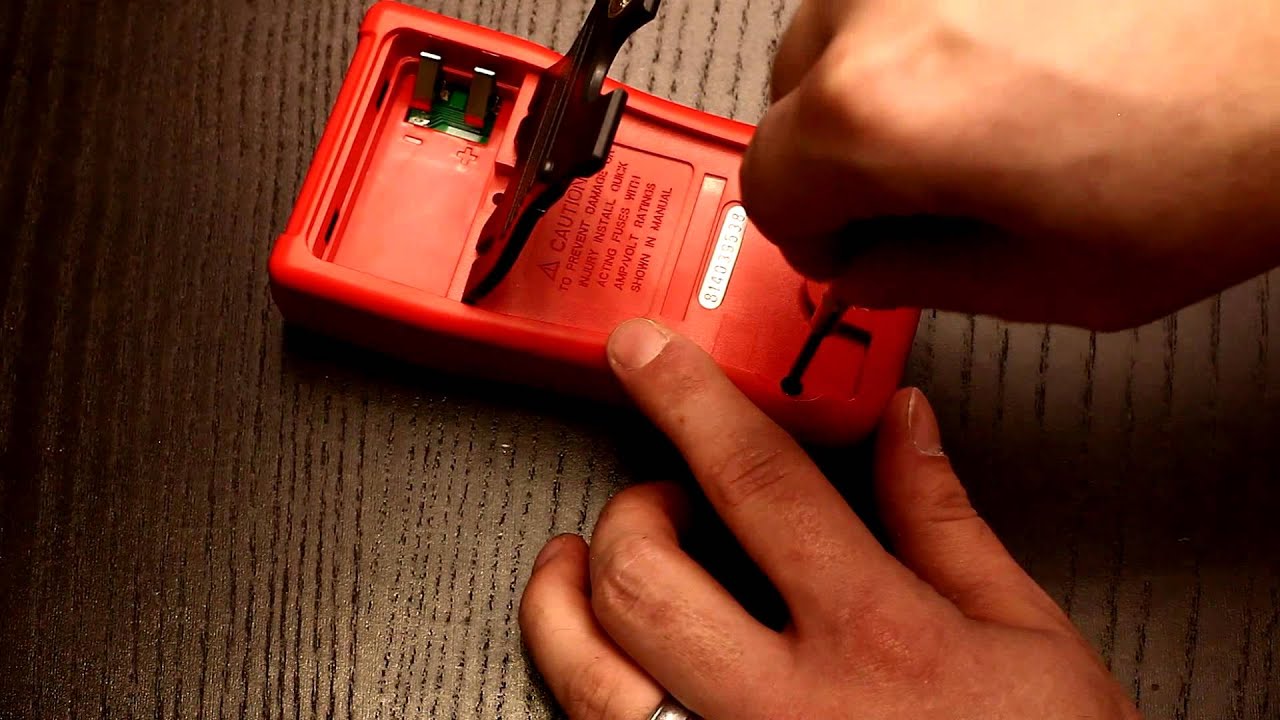

Описание: As I promised I opened UT132, now you can clearly see ceramic fuses inside.

For more information and latest news please visit:
http://www.uni-t.cz/

Alternatively follow me on twitter:
  / unitrendcz

If you prefer facebook:
https://www.facebook.com/pages/UNI-T/...


UNI-T UT132A - small digital multimeter with square wave output

Safety Rating
CAT III 250V

Certifications
GS
CE
EN:61010-1
EN:61326-1

Specifications
DC Voltage 200mV/ 2000mV/ 20V/ 200V/ 250V ±(0.5%+2)
AC Voltage 200V/ 250V ±(1.2%+3) ±(1.2%+3)
DC Current 2000µA/ 20mA/ 200mA/ 10A ± (1%+2)
Resistance 200Ohm/ 2000Ohm/ 20KOhm/ 200KOhm/ 2000KOhm/ 20MOhm ±(0.8%+5)

FEATURES:
Display Count 1999
Manual Range
Square Wave Output
Diode
Transistor
Low Battery Indication
Data Hold
Input Impedance for DCV Around 10MOhm

GENERAL CHARACTERISTICS:
Power 9V Battery(6F22)
LCD Size 49mm x 18mm
Product Color Red and Grey
Product Net Weight 200 g
Product Size 72mm × 137mm × 35mm
Standard Accessories Battery,Test Lead, Multi-Purpose Socket, Gift Box, English Manual

MANUFACTURER: UNI-TREND
-----------------------------------------------------------------------------------------------------------------------------------
UNI-T UT132B - small digital multimeter with battery tester

Safety Rating
CAT III 250V

Certifications
GS
CE
EN:61010-1
EN:61326-1

Specifications
DC Voltage 200mV/ 2000mV/ 20V/ 200V/ 250V ±(0.5%+2)
AC Voltage 200V/ 250V ±(1.2%+3) ±(1.2%+3)
DC Current 2000µA/ 200mA/ 10A ± (1%+2)
Resistance 200Ohm/ 2000Ohm/ 20KOhm/ 200KOhm/ 2000KOhm/ 20MOhm ±(0.8%+5)

FEATURES:
Display Count 1999
Manual Range
Battery Test 1.5V/ 9V
Square Wave Output
Diode
Transistor
Continuity Buzzer
Low Battery Indication
Data Hold
Input Impedance for DCV Around 10MOhm

GENERAL CHARACTERISTICS:
Power 9V Battery(6F22)
LCD Size 49mm x 18mm
Product Color Red and Grey
Product Net Weight 200 g
Product Size 72mm × 137mm × 35mm
Standard Accessories Battery,Test Lead, Multi-Purpose Socket, Gift Box, English Manual

MANUFACTURER: UNI-TREND
-------------------------------------------------------------------------------------------------------------------
UNI-T UT132C small digital multimeter with temperature measurement

Safety Rating
CAT III 250V

Certifications
GS
CE
EN:61010-1
EN:61326-1

Specifications
DC Voltage 200mV/ 2000mV/ 20V/ 200V/ 250V ±(0.5%+2)
AC Voltage 200V/ 250V ±(1.2%+3)
DC Current 2000µA/ 20mA/ 200mA/ 10A ± (1%+2)
Resistance 200Ohm/ 2000Ohm/ 20KOhm/ 200KOhm/ 2000KOhm/ 20MOhm ±(1.2%+3)
Temperature -40 °C ~ 1000°C ±(1.0%+3)

Features
Display Count 1999
Manual Range
Diode
Transistor
Continuity Buzzer
Low Battery Indication
Data Hold
Input impedance for DCV Around 10M?

General Characteristic
Power 9V Battery(6F22)
LCD Size 49mm x 18mm
Product Color Red and Grey
Product Net Weight 200 g
Product Size 72mm×137mm×35mm
Standard Accessories UT132C-Battery,Test Lead,Multi-Purpose Socket, Point Contact Temperature Probe, Gift Box, English Manual

Manufacturer: UNI-TREND
----------------------------------------------------------------------------------------
