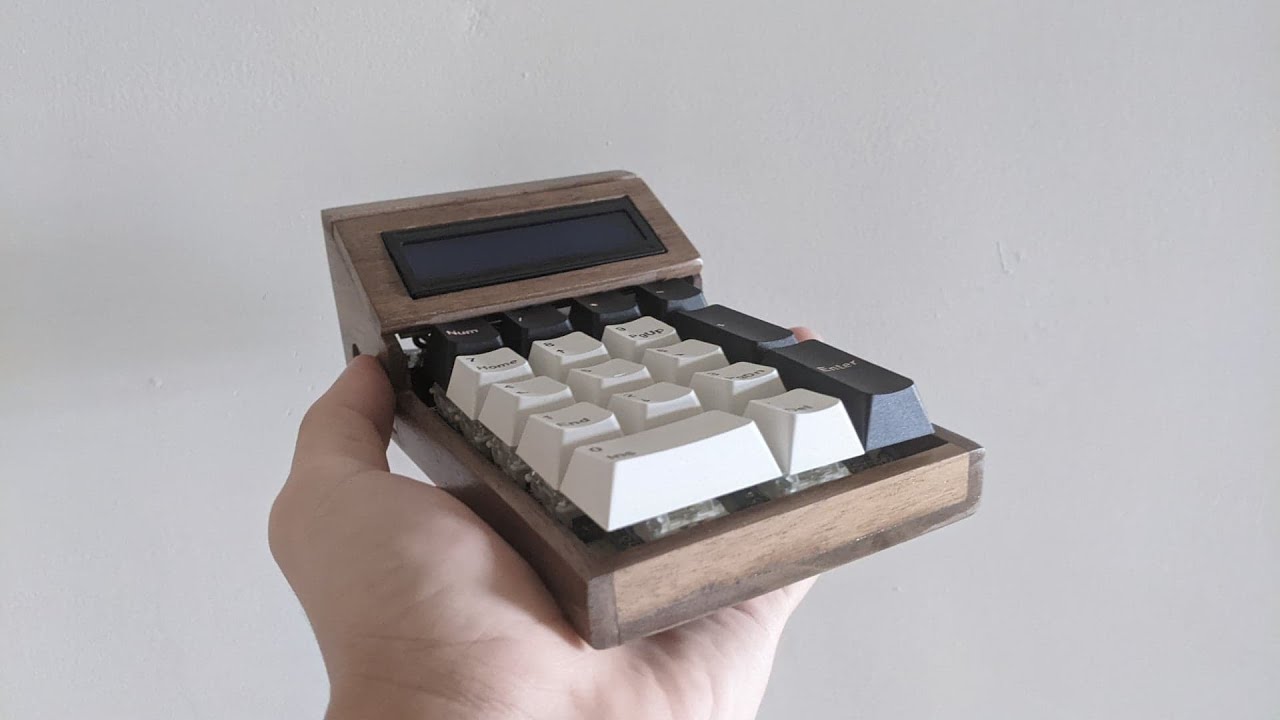

Custom Mechanical Switch Calculator — from scratch!
Автор: Aaron's Workshop 艾倫的工作室
Загружено: 2022-08-29
Просмотров: 3599
Описание:
Huge improvement from the last, should I say?
The arduino keeps resetting connected to the boost converter, I guess there's voltage drop at intervals(which turns the board off). As I bought the 3.3v 8mhz version of the Pro Mini, it will run fine on a 1s lipo anyway.
Parts list:
1. cherry breakout board * 17
2. gateron yellow mechanical switches * 17
3. numberpad keycaps
4. 5mm walnut board
5. lcd 1602 with l2C backpack
6. DIP switch * 1
7. small lipo battery
8. lipo battery charger / boost converter
9. jumper wires
10.Arduino pro mini 3.3v
Tools:
1. soldering iron
2. bench vise
3. wire stripper
4. Japanese pull saw
5. sandpaper
6. rasps or files
7. hand drill
8. circular saw
