KNUTH VERTICAL MILLING MACHINE WITH 3-AXIS DIGITAL READ OUT, TOOLING 2015, www.americanmachinery.com
Автор: American Machinery Liquidators
Загружено: 2025-10-24
Просмотров: 7
Описание:
AML Stock #002989

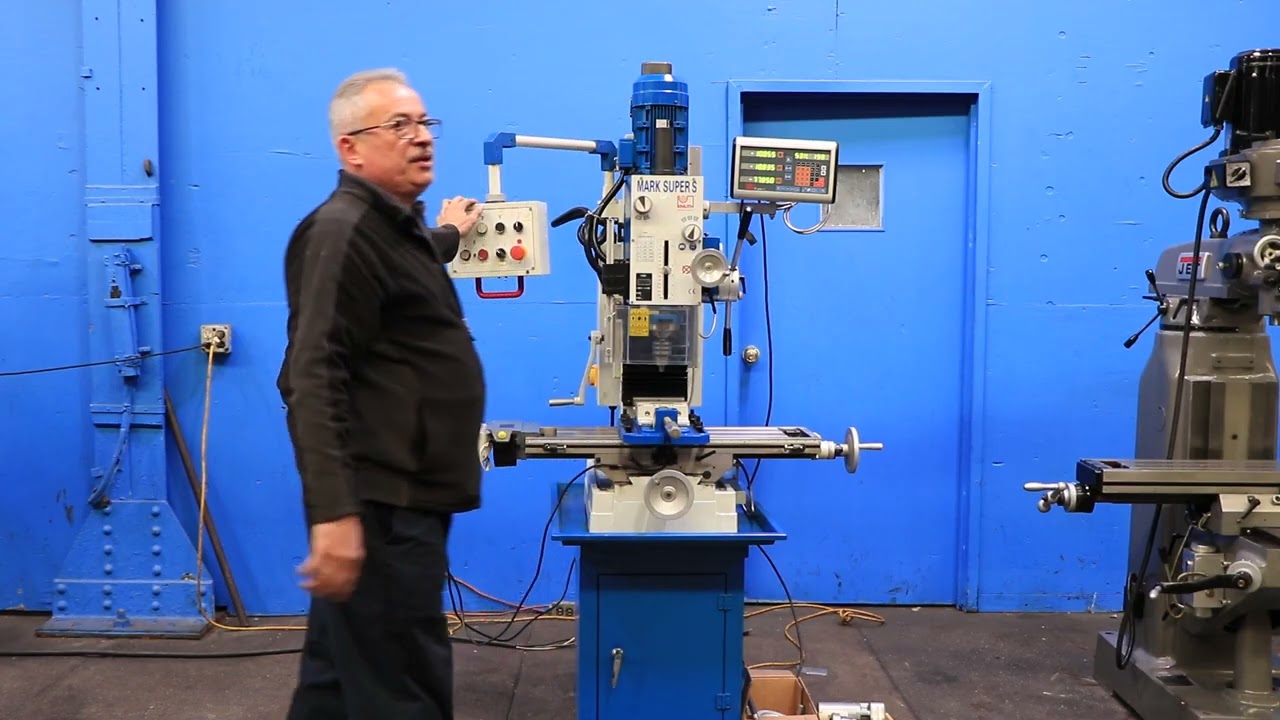

KNUTH VERTICAL MILL/DRILL MACHINE MODEL “MARK SUPER S”, S/N: 3803,(2015)
SPECIFICATIONS:
TABLE SIZE ............................ 9.45" X 31.5"
NUMBER OF T-SLOTS ..................... 3
LONGITUDINAL TABLE TRAVEL ............. 22"
SADDLE TRAVEL ......................... 7.5"
QUILL TRAVEL .......................... 4.7"
HEAD TRAVEL ........................... 13.8"
SPINDLE SPEED RANGE (12) .............. 115 - 3150 RPM
SPINDLE TAPER ......................... #4MT
HEAD SWIVEL LEFT & RIGHT .............. 45°
THROAT DEPTH .......................... 10"
APPROXIMATE WEIGHT .................... 1,600 LBS
EQUIPPED WITH:
THREE AXIS DIGITAL READOUT
AUTOMATIC QUILL FEED WITH THREE GRAED STEPS
TAPPING UNIT W/ADJUSTABLE ROTATION REVERSAL
FOR THREAD CUTTING
POWER FEED FOR LONGITUDINAL TABLE TRAVEL
MACHINE VISE
DRILL CHUCK
2 HORSE POWER MILLING HEAD
CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
