3D Printed Walschaerts Valve Gear Model
Автор: AeroKoi
Загружено: 2023-11-29
Просмотров: 300770
Описание:
This model was designed off of the 2D rendition here: https://en.wikipedia.org/wiki/Walscha...
STL files: https://www.thingiverse.com/thing:634...
Model Dimensions:
Length: 18.54 cm/7.30 in
Width: 5.37 cm/2.11 in
Height: 8.72 cm/3.43 in
Hardware Required:
(Qty. 3) 14mm x 5mm x 5mm Ball Bearings (Commercially available)
NOTE: VERIFY ALL MOVING PARTS MOVE FREELY (LITTLE TO NO RESISTANCE) RELATIVE TO EACH OTHER PRIOR TO FINAL ASSEMBLY TO ENSURE SMOOTH OPERATION.
No specific scale was used for this model.

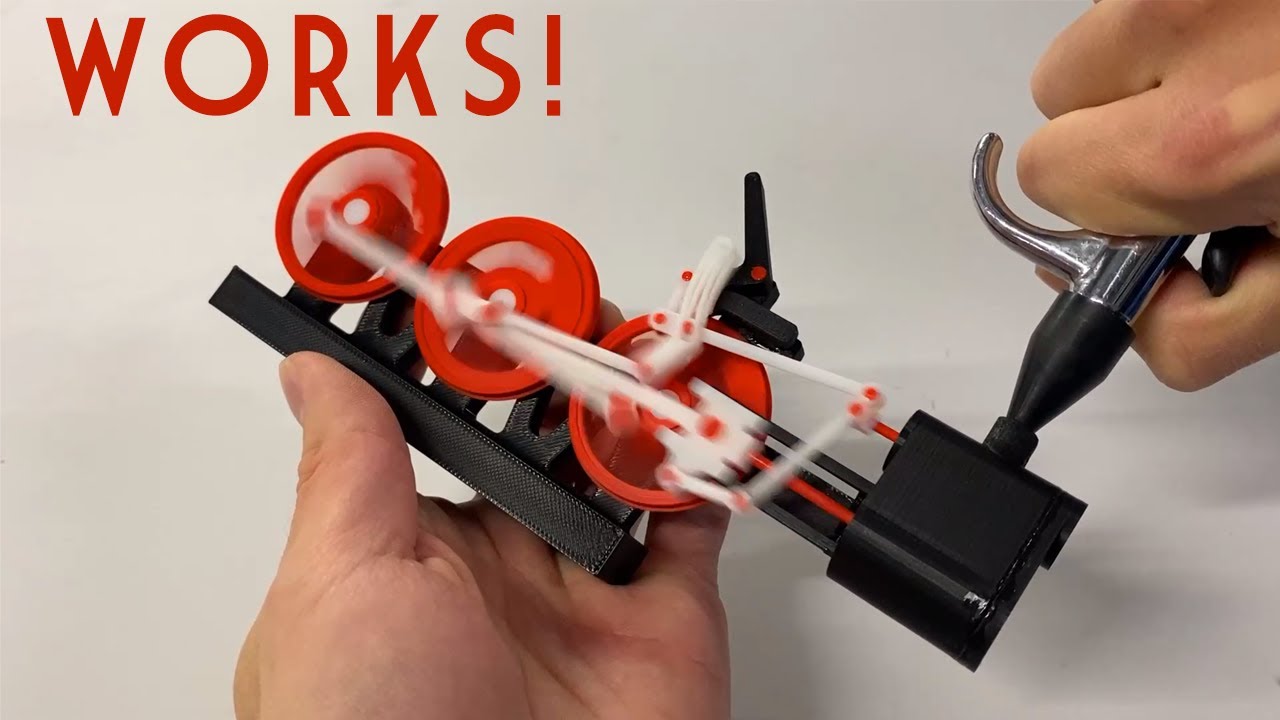

This desktop model demonstrates the mechanical principal of steam engine locomotives that utilize the Walschaerts valve gear for operating the inlet and exhaust valves to provide forward and reverse locomotion.
There are three methods to operate the model:
Manual control by sliding on the keyed rotation handle to the primary axle.
Motorized control by removing the handle and fitting a drill or motor to the primary axle.
Pneumatic control by providing a pressurized air source to the top of the cylinder.
