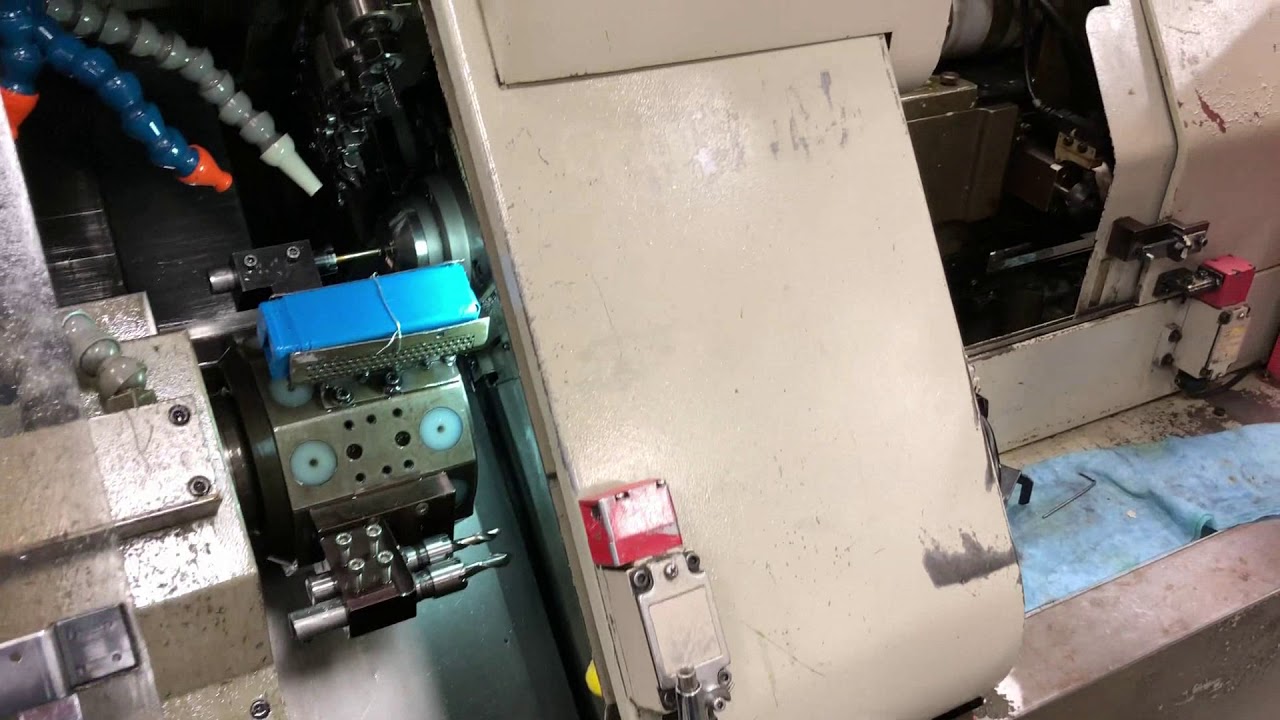

400407 Citizen M20

Описание: All Information From OEM Brochure Should Be Verified By Buyer:

Equipped With:
Iemca CH-220 Magazine Type Barfeed,
Tool Nose Radius Compensation
Canned Cycle For Drilling
Multiple Repetitive Cycles
Constant Surface Speed Control
Part Program Storage Length
Chamfering/Corner Rounding
Skip Function
Tool Life Management
Synchronized Spindle Rotation
Milling Interpolation
Simultation Function
Turret Half Index (20 Positions)
Synchronous Tapping Function
Tooling Holder System:
(2) VTF-112l Fixed Type
VDF-402l Fixed Type For Deep Hole

Specifications:

CNC Control: Mitsubishi Meldas 530lhc
(x1,x2,z1,z2,z3,a2,y1)
Max. Machining Diameter: .787" (20mm)
Max. Machining Length Per Chucking: 12.6"
Indexing:
Main Spindle: Full "C" Axis
Sub-Spindle: 15 Degree
Spindle Speeds:
Main Spindle Drive:200 - 8100 RPM
Back Spindle: 180 - 7200 RPM
Rotary Tool Spindle:
Gang Plate: 250 - 5000 RPM
Turret: 320 - 6300 RPM
Backworking:
Max. Chucking Dia: .787" (20mm)
Max. Backwork Length: 4.92" (125mm)
Max. Drilling/Threading: .315" (m8)
Backworking Speed: 150 - 7200 RPM
Number Of Installable Tools:
Gang Tooling: 8 Tools
Turret Tooling: 10 Tools
Number Of Turret Indexes: 10 Sets (20 Sets Avail.)
Tool Sizes:
Gang Tooling: 13mm x 13mm x 150mm
Turret Tooling: 10mm x 10mm x 60mm
Sleeve Size: 19.05mm Diameter
Motors:
Main Spindle Drive: 3-5 HP
Rotary Tool Spindle Drive:
Gang Plate: 1/2 HP
Turret: 1/2 HP
Back Spindle Drive: 1-2 HP
Dimensions (Approx.): 92.8" x 42.9" x 66.3"
Weight (Approx.): 3600 lbs.
